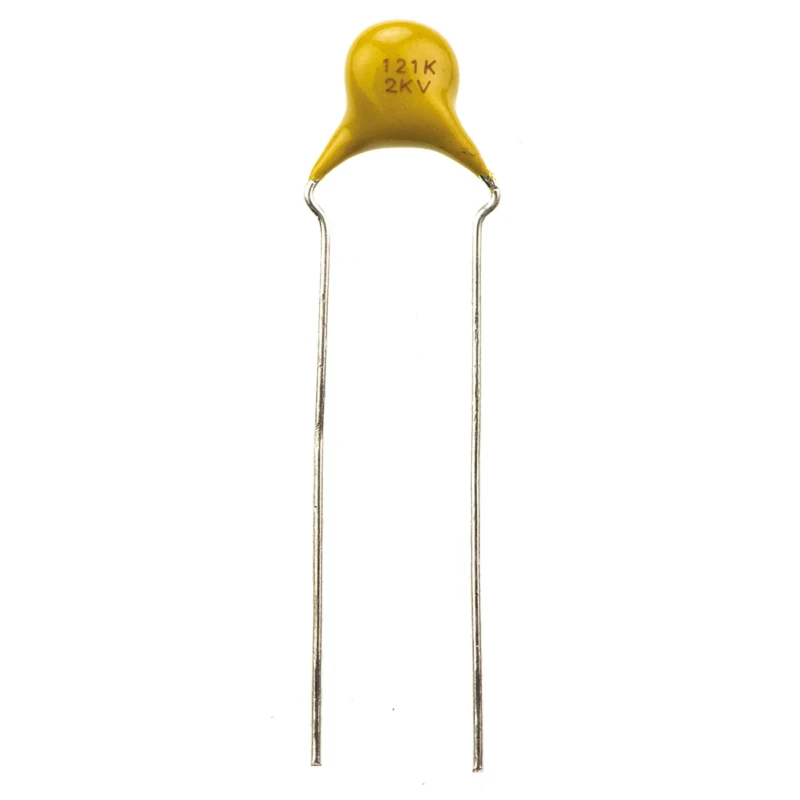

Vishay Single Layer Ceramic Capacitor 120 pF 2kV DC ±10% Tolerance S3N Dielectric F Series Through Hole F121K25S3NP63K7R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2kV dc |
| Diameter | 6.5mm |
| Brand | Vishay |
| Height | 40mm |
| Model | F121K25S3NP63K7R |
| Mount Type | Through Hole |
| Series | F |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 120pF |
| Minimum Operating Temperature | -30°C |
| Terminal type | Radial |
| Dissipation Factor | 0.2% |
| Standards/Approvals | EC, RoHS |
| Package/Case | Disc |
| Pin Count | 2 |
| Dielectric | S3N |
| Suppression Class | Class I |
Key Features
- Features a stable S3N dielectric for reliable performance in high frequency circuits.
- Designed for through-hole mounting with radial terminals for secure connections.
- Class I suppression with low dissipation factor of 0.2% to minimize losses.
- Operates within a temperature range of -30°C to 125°C for durability in harsh environments.
- Constructed as a disc capacitor with epoxy resin encapsulation compliant with UL 94 V-0 flammability standards.
- Ideal for use in switch mode power supplies, high frequency ballasts, snubber circuits, and high voltage applications.
- Leads are tinned copper with kinked configuration and multiple lead spacings for easy PCB insertion.
Product Description
Vishay F121K25S3NP63K7R single layer ceramic capacitor is a disc-type passive electronic component with a capacitance of 120 pF and a voltage rating of 2kV DC. It utilizes a Class 1 S3N dielectric material ensuring low losses and high stability, suitable for high frequency and switch mode power supply circuits.
The capacitor features radial tinned copper leads, kinked for convenient insertion, and is encapsulated with epoxy resin that meets UL 94 V-0 flame resistance standards, providing safety and durability in demanding industrial environments.
Operating temperature ranges from -30°C up to a maximum of 125°C, allowing this capacitor to function reliably in various environments. The device meets IEC 60384-9 and EIA 198 standards, assuring compliance to international specifications.
Common application fields include electronic circuits where low losses and high capacitance density are critical such as snubber circuits, high frequency ballasts, and high voltage electronic applications. It is particularly suited for power electronics, industrial machinery, and laboratory instrumentation requiring stable and reliable high voltage capacitors.
Stable capacitance with ±10% tolerance ensures precision performance. S3N dielectric enables high reliability in SMPS and high frequency circuits. Radial leads with kinked configuration facilitate PCB mounting and mechanical stability.
Epoxy resin encapsulation provides flame resistance and environmental protection. Compliance with IEC 60384-9, EIA 198, EC, and RoHS standards ensures quality and environmental safety. Wide operational temperature range suits industrial and commercial applications.
Designed for through-hole mounting, compatible with automated manufacturing processes.
Choose Vishay single layer ceramic capacitors for dependable performance in electronic component assemblies requiring high voltage capabilities and compact size. Browse related products in the Single Layer Ceramic Capacitors category on EnvMart for comprehensive component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 120 pF.
It has a voltage rating of 2kV DC.
The operating temperature range is from -30°C to 125°C.
This model is designed for through-hole mounting.
It utilizes an S3N dielectric material, which provides low losses and high stability.
The diameter is 6.5 mm and the height is 40 mm.
The dissipation factor is 0.2%.
It complies with IEC 60384-9 and EIA 198 standards, as well as EC and RoHS requirements.
It features radial terminals made of tinned copper.
It is suitable for use in switch mode power supplies, high frequency ballasts, and snubber circuits.
The tolerance of the capacitance value is ±10%.
The country of origin for this capacitor is India.
