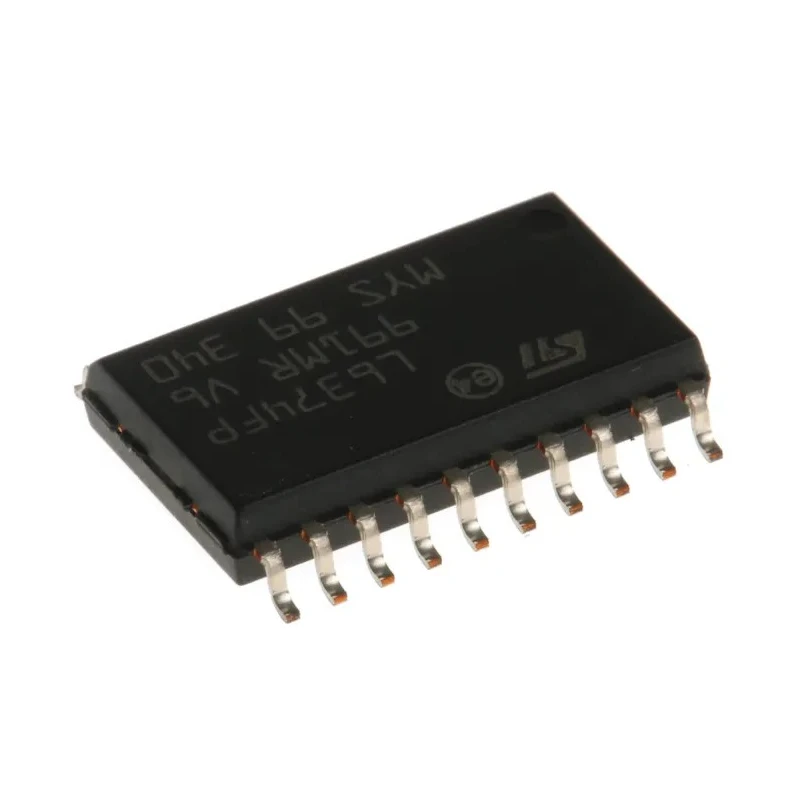

STMicroelectronics Line Transmitter 3 State Negative 20-Pin SOIC L6374FP

STMicroelectronics L6374FP is a high-performance line transmitter with a 3 state output and negative polarity, housed in a compact 20-pin SOIC surface mount package. This device operates reliably across a wide supply voltage range of 10.8V to 40V and supports differential input types for improved signal processing.

Designed within the 74F logic family, it functions as an efficient line driver engineered for industrial and electronic applications requiring robust interfacing and signal control.

The transmitter features a maximum propagation delay time of 1.5ms, ensuring timely signal transmission within complex circuits.

Its wide operating temperature range from -25°C to 125°C allows secure operation in demanding conditions and environments encountered in industrial, manufacturing, and power electronics systems.

Dimensions of 13mm length, 7.6mm width, and 2.65mm height contribute to its suitability in space-constrained applications.

The product integrates a high-side driver quad intelligent power switch, offering four independent output channels with multipower BCD technology capable of driving inductive, capacitive, or resistive loads.

Additional features include internal current limiting, non-dissipative over-current protection, thermal shutdown, under voltage lockout with hysteresis, and diagnostic outputs for system safety monitoring.

This line transmitter is an optimal choice for use in electronic components, interface ICs, industrial automation systems, and power management applications, delivering reliability and precision.

Operates within a supply voltage range of 10.8V to 40V. Supports differential input type for enhanced signal integrity. Maximum propagation delay time at CL is 1.5ms for reliable timing. Operating temperature ranges from -25°C to 125°C ensuring durability in harsh environments.

Compact dimensions: 13mm length, 7.6mm width, and 2.65mm height. Logic family is 74F with line driver logic function. Low supply current consumption of 1mA for energy efficiency. High-side driver quad intelligent power switch technology supports multiple output channels.

Includes internal current limit and thermal shutdown for protection. Features diagnostic output for under voltage, over temperature, and over current conditions. Explore more innovative semiconductor components and Line Interface ICs at EnvMart for industrial, automotive, and electronic design applications.
