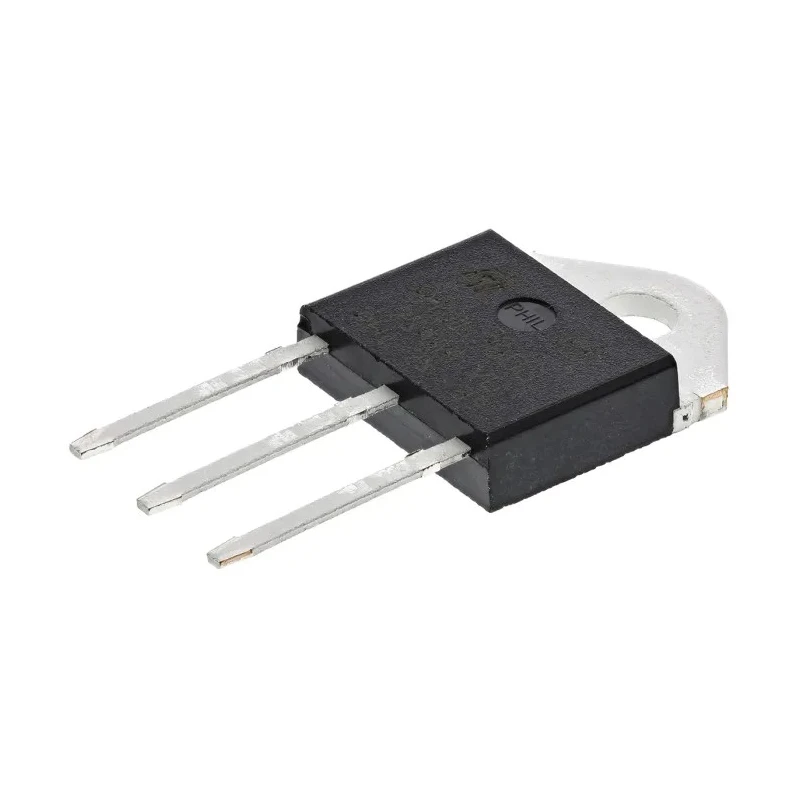

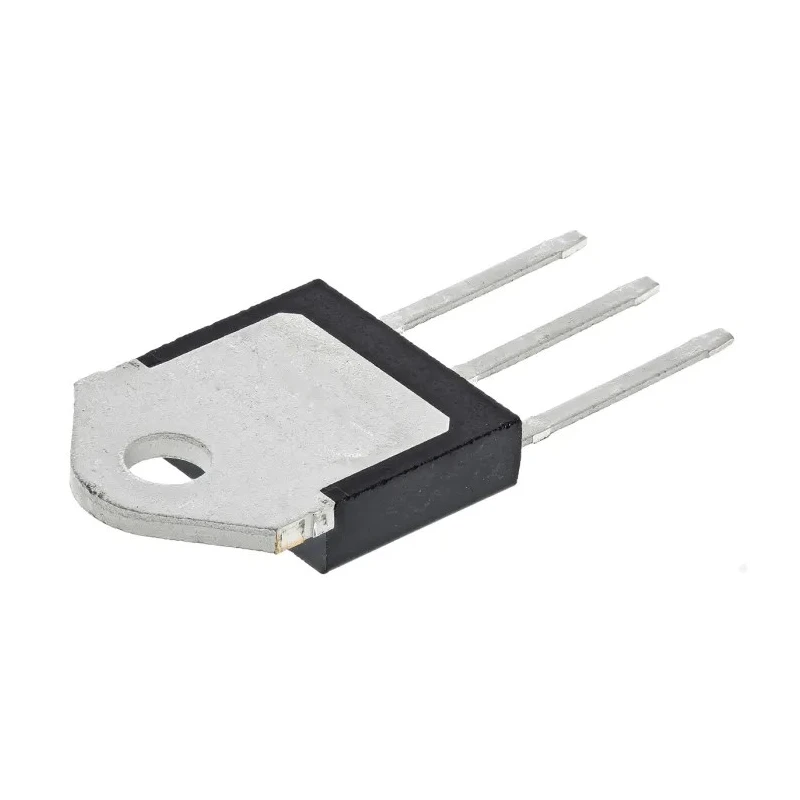

STMicroelectronics Thyristor 800 V 610 A, 32 A, 80 mA Gate Current, 1.9 V Peak On-State BTW69-800RG

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Thyristor 800 V 610 A, 32 A, 80 mA Gate Current, 1.9 V Peak On-State BTW69-800RG

Name: STMicroelectronics Thyristor 800 V 610 A, 32 A, 80 mA Gate Current, 1.9 V Peak On-State BTW69-800RG
Brand: STMicroelectronics
SKU: 219219
Price: 10.4 USD
Availability: InStock



Category Thyristor Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	15.1mm
Length	40mm
Model	BTW69-800RG
Width	21.1mm
Mount Type	Through Hole
Series	BTW67 and BTW69
Maximum Operating Temperature	125°C
Package Type	TOP3
Standards/Approvals	UL (File ref: E81734)
Pin Count	3
Rated Average On-State Current Irms	32A
Repetitive Peak Reverse Voltage VDRM	800V
Surge Current Rating	610A
Maximum Gate Trigger Current Igt	80mA
Maximum Holding Current Ih	150mA
Maximum Gate Trigger Voltage Vgt	1.3V
Peak On-State Voltage	1.9V
Repetitive Peak Off-State Current	0.01mA
Standards/ApprovalsUL (File ref	E81734)
UL (File ref	E81734)

Key Features

The package type is TOP3 with a 3-pin configuration suitable for through-hole mounting.
The surge current rating is 610 A, ensuring high transient current tolerance.
Maximum gate trigger current is 80 mA with a peak on-state voltage of 1.9 V.
Maximum operating temperature is 125°C, making it suitable for demanding environments.
The device complies with UL standards, providing reliability and safety assurance.
Maximum gate trigger voltage is 1.3 V, facilitating sensitive triggering.
Repetitive peak off-state current is 0.01 mA, minimizing leakage during off cycles.
Maximum holding current is 150 mA to ensure stable operation after triggering.

Product Description

STMicroelectronics BTW69-800RG Thyristor is a high-performance silicon-controlled rectifier designed for power switching and control applications. It features a robust TOP3 3-pin package suitable for through-hole mounting in industrial and electronic power systems.

This thyristor has a repetitive peak reverse voltage (VDRM) rating of 800 V and a rated average on-state current (Irms) of 32 A, making it ideal for medium power applications. The device can handle surge currents up to 610 A, offering excellent transient capability for industrial load control.

Its maximum gate trigger current is 80 mA, with a peak on-state voltage of 1.9 V and a gate trigger voltage of 1.3 V, which allows for sensitive and reliable gate control. It maintains stable holding current up to 150 mA and has a very low repetitive peak off-state current of 0.01 mA to reduce losses during standby.

The device can operate at temperatures up to 125°C, enabling use in demanding environmental conditions found in automation, industrial machinery, HVAC controls, and power supply circuits.

Compact dimensions (40 mm length, 21.1 mm width, 15.1 mm height) allow easy integration into circuit designs. The thyristor meets UL approval standards (File reference E81734), ensuring compliance with international safety and quality norms.

The package type is TOP3, providing robust mechanical support and heat dissipation. Suitable for industrial power switching and controlled rectification. Compatible with applications requiring precise control of high voltages and currents.

Designed for through-hole mounting to facilitate circuit board assembly. Adapted for use in power conversion, motor control, and surge protection circuits. Part of the BTW67 and BTW69 series, offering a range of current and voltage options for diverse needs.

Ideal for implementation in industrial automation, manufacturing, and electronics projects. Consider exploring the Electronics & Electricals section of EnvMart for more semiconductor and Thyristor options suitable for your application needs.
