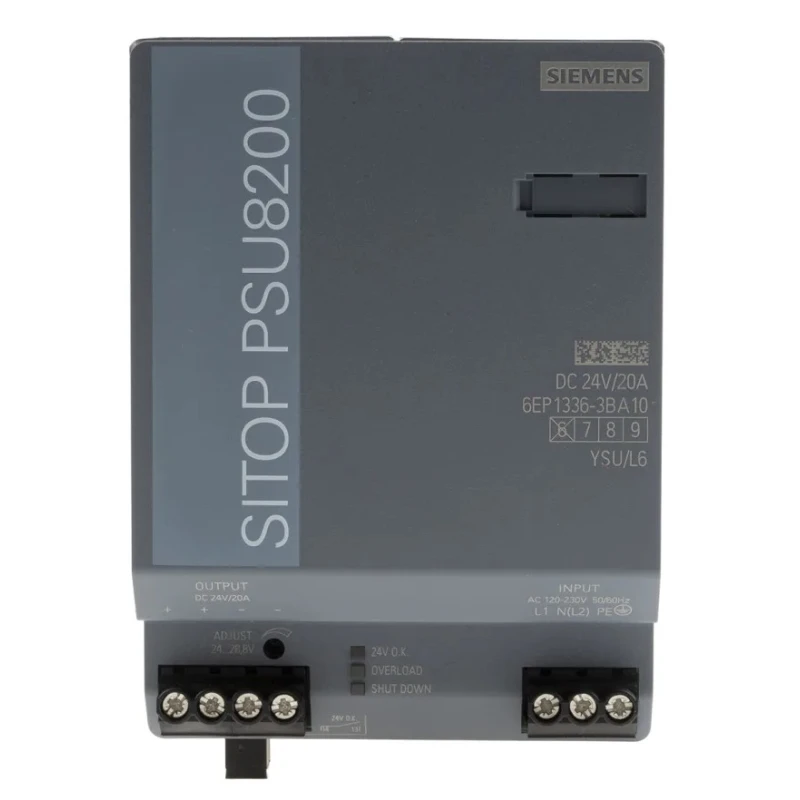

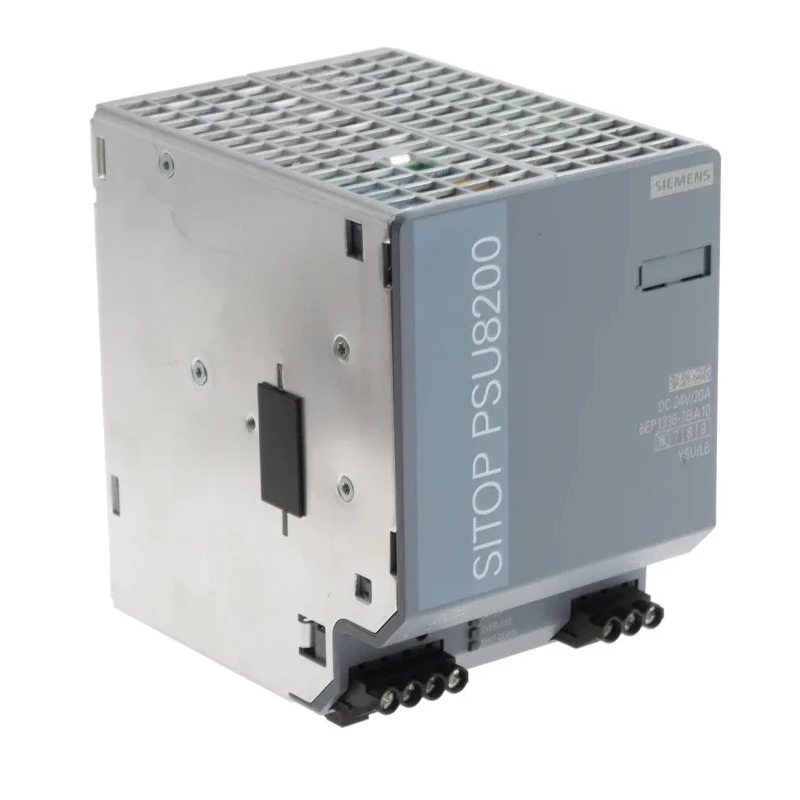

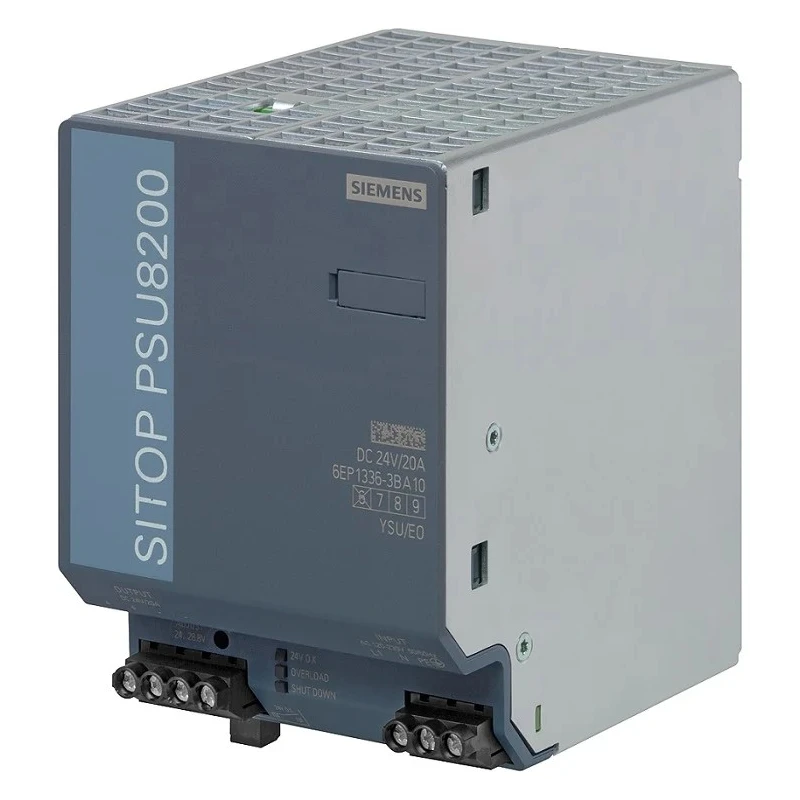

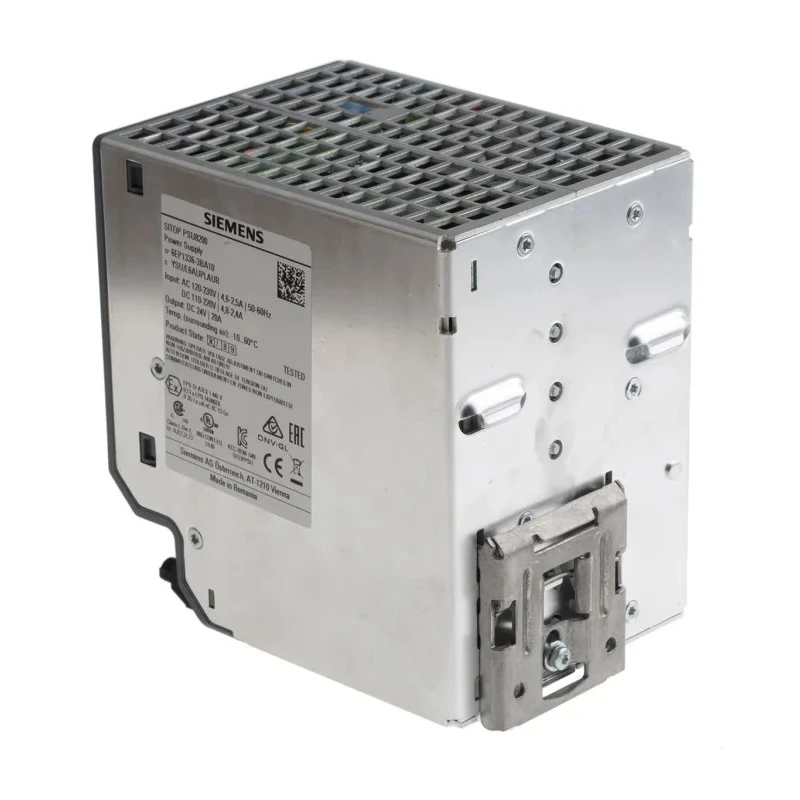

Siemens SITOP PSU8200 Switched Mode DIN Rail Power Supply 275V AC/DC Input 24V DC, 20 A Output, 480 W PSU8200

Free Delivery in India | Lowest Global Shipping Charges

Siemens SITOP PSU8200 Switched Mode DIN Rail Power Supply 275V AC/DC Input 24V DC, 20 A Output, 480 W PSU8200

Name: Siemens SITOP PSU8200 Switched Mode DIN Rail Power Supply 275V AC/DC Input 24V DC, 20 A Output, 480 W PSU8200
Brand: Siemens
SKU: 219192
Price: 584.35 USD
Availability: InStock



Category DIN Rail Power Supplies Brand Siemens Condition New

Specifications

Country of Origin	Romania
Brand	Siemens
Power	480W
Height	125mm
Model	PSU8200
Depth	125mm
IP Rating	IP20
Width	90mm
Series	SITOP PSU8200
Output Current	20A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	275V ac
Hazardous Area Certification	ATEX
Maximum Output Voltage	24V dc
Minimum Input Voltage	85V ac

Key Features

Supports AC/DC input voltage from 85V to 275V for versatile industrial use.
Provides a stable 24V DC output with 20A current capacity and power of 480W.
Compact design sized 125mm height, 90mm width, and 125mm depth for easy DIN rail installation.
Operates efficiently within a temperature range of -25°C to +70°C for demanding environments.
Includes three LED indicators for operational status and fault monitoring.
IP20 rated housing protects against solid objects larger than 12mm and provides touch protection.
Certified for ATEX hazardous areas, ensuring suitability in challenging industrial settings.
Adjustable output voltage range of 24 to 28.8V DC enhances adaptability.

Product Description

Siemens PSU8200 is a high-performance switched mode DIN rail power supply designed for industrial and automation applications. It accepts a wide AC/DC input voltage range from 85V to 275V AC or 88V to 350V DC, making it highly adaptable to various electrical systems.

This power supply offers a steady 24V DC output voltage with a maximum current of 20A and power rating of 480W, suitable for powering PLCs and other control equipment reliably. The output voltage is adjustable between 24V and 28.8V DC for flexible deployment.

Its robust construction features a compact form factor with dimensions 125mm height, 90mm width, and 125mm depth, designed for quick and easy mounting on DIN rails using a snap-in mechanism that requires no additional tools.

The device operates safely under harsh environmental conditions with a wide temperature range of -25°C to +70°C and IP20 ingress protection, shielding it from solid foreign objects and electrical contact, while being certified for use in ATEX hazardous areas.

Operational safety and monitoring are enhanced by integrated LED indicators that display normal operation and fault conditions such as overload and latching shutdown. Supports wide AC/DC input voltage range of 85 to 275V AC and 88 to 350V DC.

Stable power output at 24V DC and 20A current with 480W power capacity. Compact size permitting easy installation on DIN rails with snap-in mechanism. Wide operating temperature range from -25°C to +70°C for industrial environments.

IP20 enclosure rating ensures protection against contact and solids over 12mm. Certified ATEX for hazardous area compliance. Adjustable output voltage for application versatility (24 - 28.8V DC). LED indicators provide real-time monitoring of power status and faults.

Manufactured in Romania with high quality standards.

This Siemens SITOP PSU8200 power supply is widely used in industrial, manufacturing, automation, and PLC control environments requiring reliable DC power conversion and safety certifications. It caters well to industries needing compact and efficient power supplies for DIN rail mounting.
