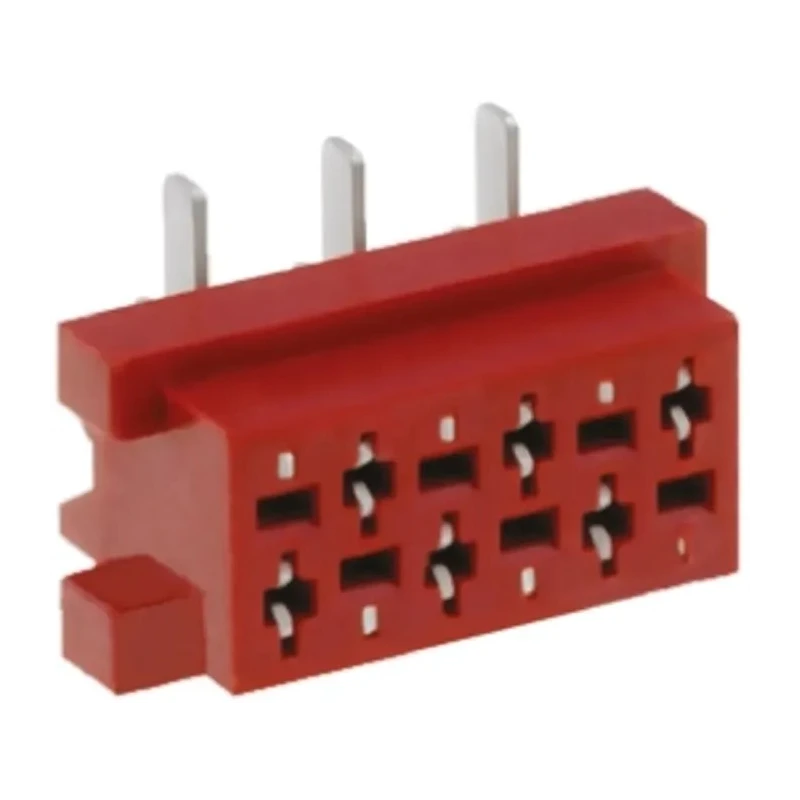

Amphenol Communications Solutions TMM Series Straight Surface PCB Socket 12-Contact 2 Row 2.54 mm Pitch Solder TMM-6-0-12-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 230V |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 12A |
| Model | TMM-6-0-12-1 |
| Mount Type | Surface |
| Housing Material | Glass Reinforced Thermoplastic |
| Contact Material | Bronze |
| Series | TMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
| Row Pitch | 2.5mm |
Key Features
- The socket features 12 female contacts arranged in 2 rows.
- Pitch between contacts is 2.54 mm for precise circuit board mounting.
- Surface mount type with a straight orientation for easy PCB integration.
- Housing is made of durable glass reinforced thermoplastic.
- Operational voltage rated at 230 V and current rating of 12 A.
- Contact material is bronze with tin plating for corrosion resistance.
- Designed to operate within temperature range of -40°C to 105°C.
- Connector systems support wire-to-board connection requirements.
Product Description
Amphenol Communications Solutions TMM-6-0-12-1 is a straight surface mount PCB socket designed to offer a robust electrical connection with 12 female contacts arranged in two rows. Featuring a 2.54 mm pitch between contacts and constructed with glass reinforced thermoplastic housing, this connector ensures durable performance across electronic manufacturing and PCB assembly processes.
The socket supports Wire-to-Board connector systems with solder termination providing mechanical stability and reliable signal integrity. The contact pins are made of bronze with tin plating, offering excellent corrosion resistance and electrical conductivity. It operates at up to 230 V and 12 A current rating, suitable for medium power electronic circuits.
Designed for industrial, manufacturing, and electronic instrumentation applications, the TMM series socket performs reliably within a temperature range from -40°C to +105°C. Its straight orientation and surface mount style facilitate easy integration onto PCBs.
The TMM-6-0-12-1 model is part of the broader TMM series connectors family, compatible with TMM MicroMatch IDC male connectors for wire-to-board interconnects. The socket features 12 female contacts arranged in 2 rows. Pitch between contacts is 2.54 mm.
Surface mount with a straight orientation. Housing material is glass reinforced thermoplastic for durability. Rated for 230 V and 12 A current operation. Bronze contact with tin plating ensures longevity. Operating temperature spans -40°C to 105°C for industrial environments.
Provides secure wire-to-board connection via solder termination. Compatible with TMM MicroMatch IDC connectors. Applications include electronic assemblies, industrial manufacturing, and PCB integration.
Explore our electronics components and connectors ranges for compatible PCB Sockets and connectors at EnvMart, your destination for professional-grade industrial and laboratory equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 12 female contacts arranged in 2 rows.
The pitch between contacts is 2.54 mm, allowing for precise circuit board mounting.
It is rated for a maximum operational voltage of 230 V.
This socket has a current rating of 12 A, suitable for medium power electronic circuits.
The housing is made of glass reinforced thermoplastic, and the contact material is bronze with tin plating for corrosion resistance.
It operates within a temperature range of -40°C to 105°C, making it suitable for various industrial applications.
This model features a surface mount design with a straight orientation for easy integration onto PCBs.
It uses solder termination, providing mechanical stability and reliable signal integrity.
This socket is designed for electronic assemblies, industrial manufacturing, and PCB integration.
The contacts are arranged in a straight orientation, facilitating easy PCB integration.
The country of origin for this socket is India.
