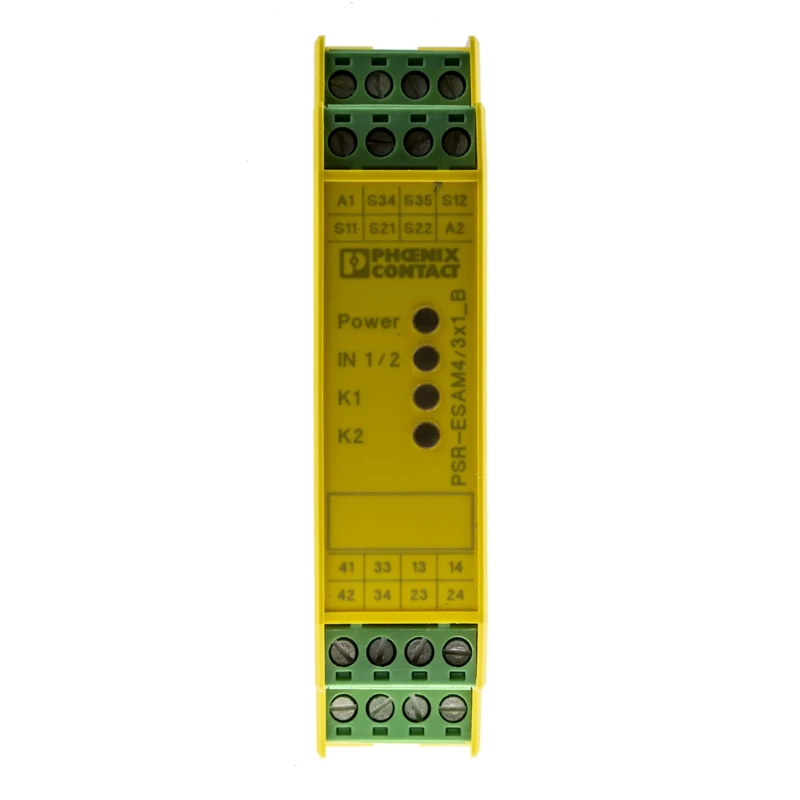

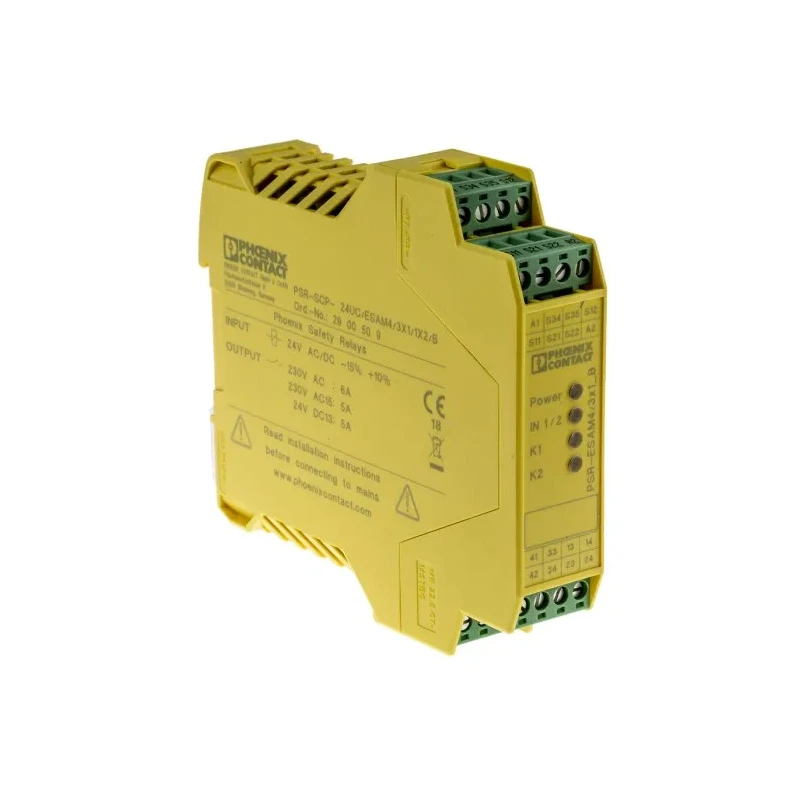

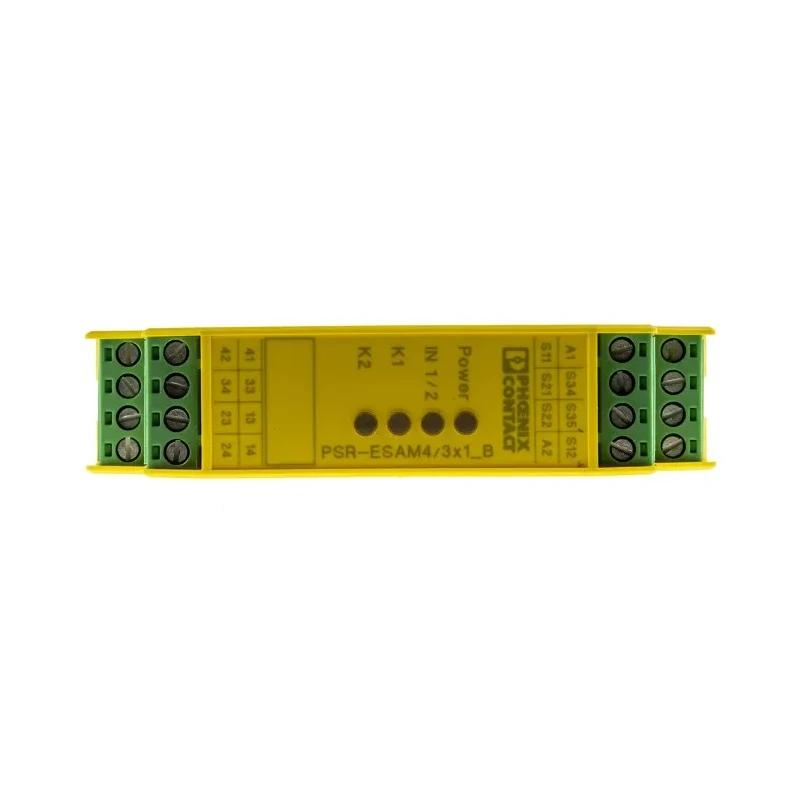

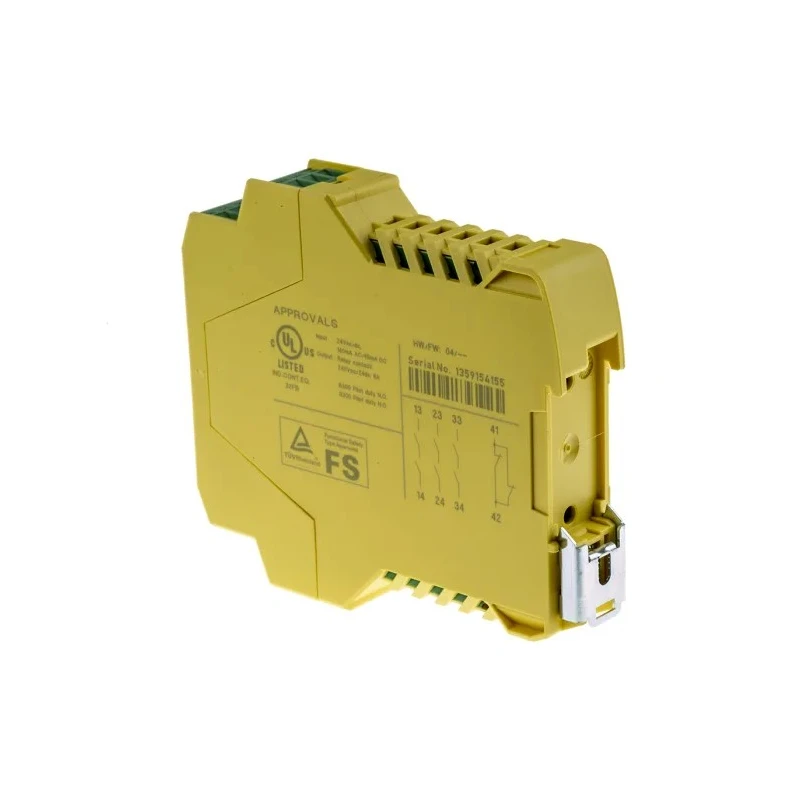

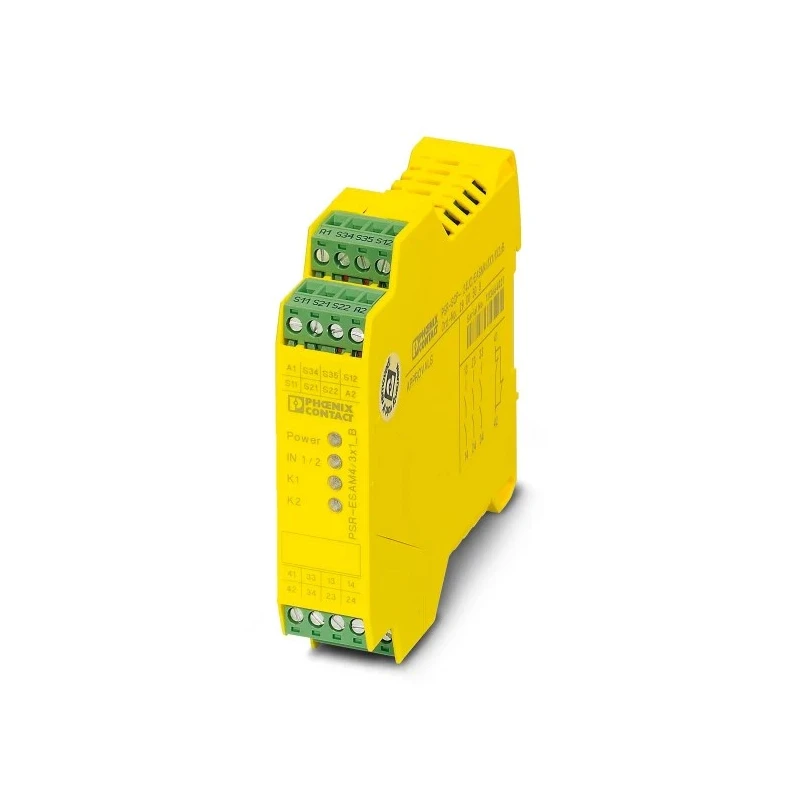

Phoenix Contact 24V AC/DC Safety Relay, 3 Safety Contacts, 1 Auxiliary Contact, IP54, Model 2900509

Phoenix Contact 2900509 is a 24V AC/DC safety relay designed for industrial applications requiring reliable safety monitoring. This device features 3 safety contacts and 1 auxiliary contact, making it ideal for protecting personnel from mechanical hazards by monitoring machinery performance and initiating safety responses swiftly.

It supports single-channel or dual-channel operation with a typical response time of 20 ms, ensuring rapid actuation in unsafe conditions. The relay’s silver tin oxide contacts provide excellent conductivity and corrosion resistance, enhancing long-term durability with a mechanical service life up to 10 million cycles.

The product mounts on a DIN rail using screw terminals, allowing flexible and secure installation in various industrial control panels. It carries an IP54 rating, safeguarding against limited dust ingress and water splashes, and operates across a broad temperature range of -20°C to +55°C, suitable for harsh environments.

This safety relay switches switching voltages up to 250V AC/DC and supports a contact current rating of 6A. It complies with IEC and RoHS standards, ensuring adherence to international safety and environmental regulations.

LED indicators on the relay simplify monitoring of operating voltage and status. The compact dimensions (114.5mm height, 99mm length, 22.5mm width) facilitate space-efficient integration into electrical assemblies. Applications include automation, manufacturing machinery safety, and other industrial safety systems requiring rapid and reliable safety signals.

Offers 3 safety contacts and 1 auxiliary contact for versatile control. Mounts easily on DIN rail with screw terminals for secure installation. Provides IP54 rating for protection against dust and water splashes. Operates reliably between -20°C and +55°C temperature range.

Switches AC and DC loads up to 250V with a contact current of 6A. Conforms to IEC and RoHS standards ensuring quality and compliance. Equipped with silver tin oxide contacts for corrosion resistance and high conductivity.

Designed for quick 20ms typical response time for fast safety action. Features LED status indicators for easy operational monitoring. Robust design suitable for demanding industrial automation and manufacturing environments.

Choose Phoenix Contact Safety Relays available on EnvMart for reliable industrial safety solutions.
