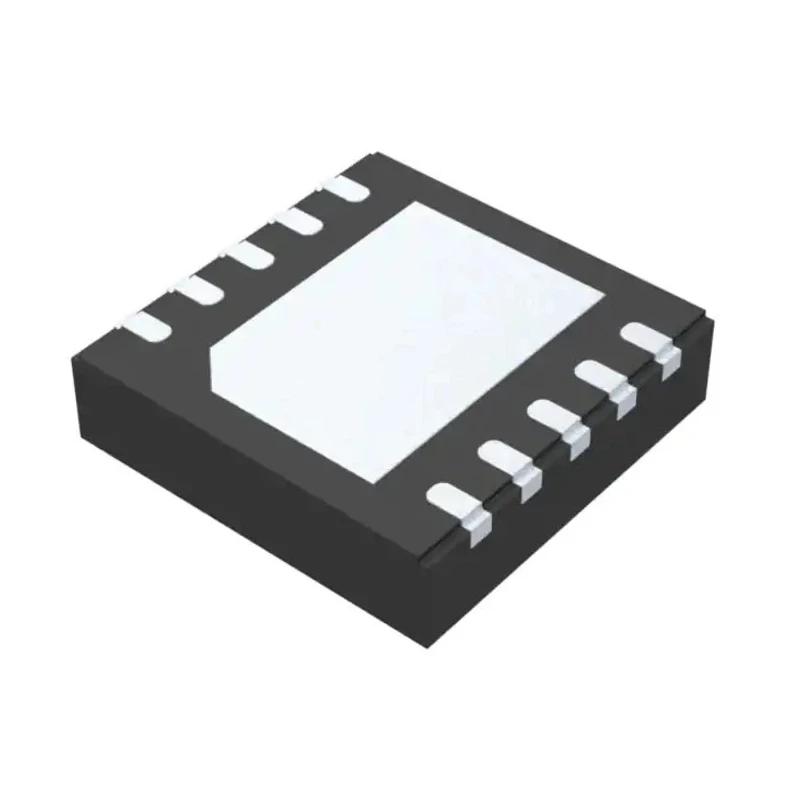

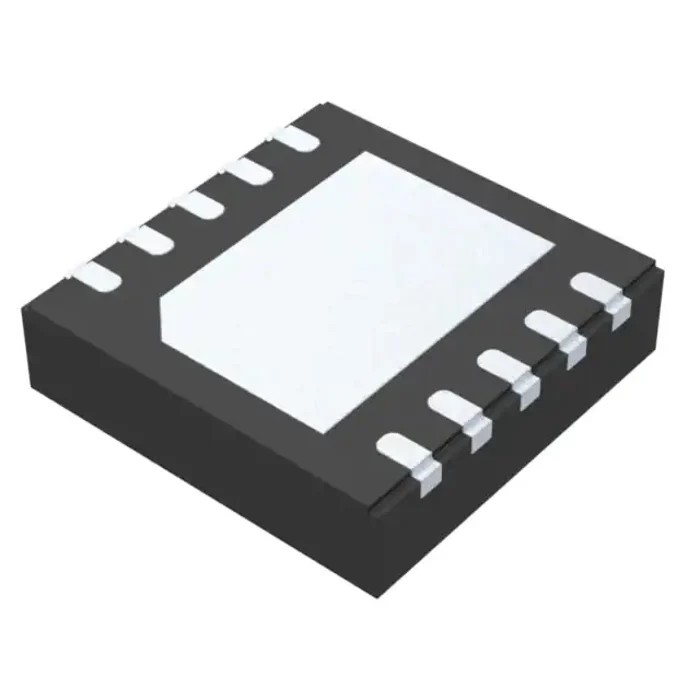

ROHM LED Driver IC, 20V Input, 5.5 V Output, 400 mA Current, 10-Pin VSON10FV3030 BD18326NUF-ME2

Free Delivery in India | Lowest Global Shipping Charges

ROHM LED Driver IC, 20V Input, 5.5 V Output, 400 mA Current, 10-Pin VSON10FV3030 BD18326NUF-ME2

Name: ROHM LED Driver IC, 20V Input, 5.5 V Output, 400 mA Current, 10-Pin VSON10FV3030 BD18326NUF-ME2
Brand: ROHM
SKU: 218757
Price: 2.53 USD
Availability: InStock



Category LED Driver IC Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1mm
Length	3mm
Model	BD18326NUF-ME2
Width	3mm
Mount Type	Through Hole
Output Current	400mA
Maximum Operating Temperature	85°C
Package Type	VSON10FV3030
Minimum Operating Temperature	-40°C
Input Voltage	20, 5.5V
Number of Pins	10
Dimming Operation	PWM

Key Features

Provides constant current driving for LEDs ensuring reliable illumination.
Supports PWM dimming operation for precise brightness control.
Compact 10-Pin VSON10FV3030 package suitable for space-saving designs.
Wide operating temperature range from -40°C to 85°C for automotive environments.
Includes built-in thermal derating and LED open detection features for robustness.
Offers over-voltage mute and short circuit protection to enhance safety.
Through hole mount type facilitating easy PCB assembly and replacement.
Small dimensions of 3mm by 3mm by 1mm enable integration in compact modules.

Product Description

The ROHM BD18326NUF-ME2 is a constant current LED driver IC intended primarily for automotive LED lamp applications. It supports input voltages of up to 40V and maintains a stable output current of 400 mA, making it well-suited for high-reliability lighting systems in harsh automotive environments.

This device is housed in a compact 10-Pin VSON10FV3030 package measuring 3mm in length and width and 1mm in height, which enables integration into space-constrained LED lighting modules such as socket LED drivers. The through hole mounting ensures straightforward installation onto printed circuit boards.

Key built-in functions include thermal derating, LED open detection, and output short circuit protection, which collectively optimize performance and protect the IC during fault conditions. The PWM dimming capability allows for precise light intensity control, critical for adaptive automotive lighting solutions.

With an operating temperature range from -40°C to 85°C, this LED driver IC meets the demanding resilience standards required in automotive applications. Furthermore, it does not conform to automotive standard AEC-Q100 but incorporates automotive-suited features enhancing its reliability.

Provides constant current driving for reliable LED illumination. Enables PWM dimming for adjustable brightness. Compact 10-Pin VSON10FV3030 package for space-efficient design. Wide temperature tolerance from -40°C to 85°C for automotive use.

Integrated protection against thermal, short circuit, and over-voltage conditions. Facilitates through hole mounting for easy PCB integration. Small physical footprint suitable for compact lighting modules. Supports LED open detection to identify faulty LEDs.

Ideal for automotive and industrial LED lighting applications requiring precise, durable LED driver IC solutions. Compatible with PCB designs needing compact, reliable drivers for consistent LED performance.
