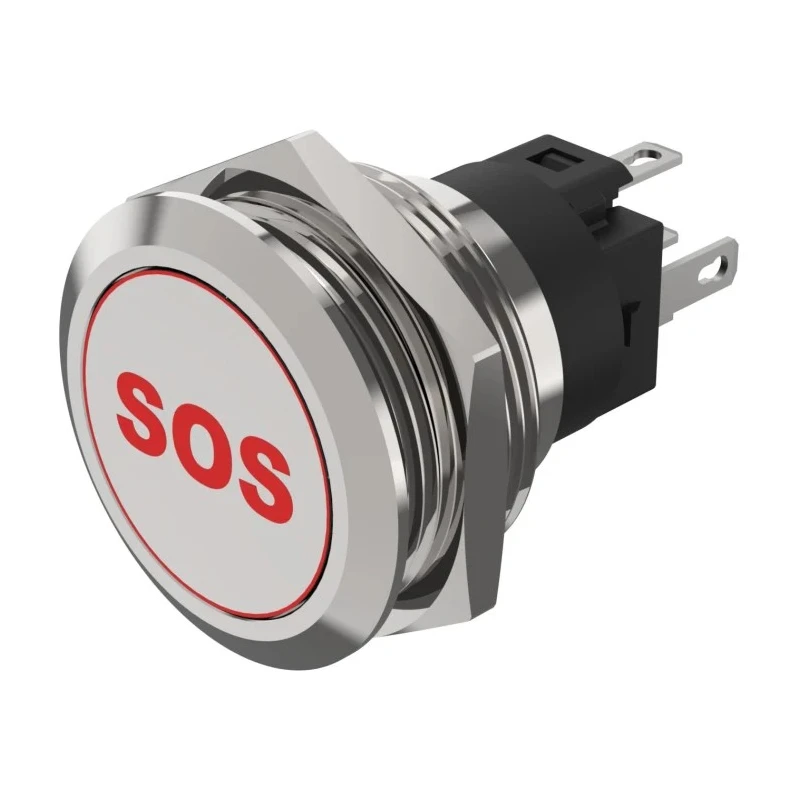

EAO Illuminated Push Button Switch, Momentary, Panel Mount, 22.3 mm Cutout, SPDT Contact, Red LED 82-6151.1A14.B015



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Model	82-6151.1A14.B015
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Red
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Push-in
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	SOS

Key Features

Silver-colored push-in actuator with flush mount style.
Illuminated pushbutton with red LED and SOS legend.
High ingress protection rated at IP65 and IP67.
Supports contact voltages of 240 V DC and 240 V AC with 3A current.
Operating temperature range from -30°C to 70°C.
Constructed with stainless steel 304 for vandal and impact resistance rated IK10.
Gold contact options available for low voltage and current applications.
Reliable tactile feedback with a lifecycle exceeding one million operations.

Product Description

The EAO 82-6151.1A14.B015 is a high-quality illuminated push button switch designed for panel mounting with a 22.3 mm cutout. Featuring a momentary push-in style actuator finished in silver, this switch incorporates a red LED illumination with an SOS legend, providing clear signaling in critical applications.

Crafted from durable stainless steel 304, it offers exceptional vandal and impact resistance, certified to IK10 standards, as well as front protection rated IP65 and IP67 for harsh environmental conditions. The switch supports both DC and AC contact voltages up to 240 volts and can handle a switch contact current of 3 amperes, ensuring reliable operation in electrical control systems.

This switch operates effectively within a wide temperature spectrum, from -30°C to 70°C, making it suitable for various industrial and commercial environments. Gold contact options are available for sensitive low-voltage and low-current circuits. Its long service life, exceeding one million cycles, combined with excellent tactile feedback, ensures consistent performance.

This push button switch is ideal for use in exposed public areas like ticketing and vending machines, as well as in industrial machinery controls, building management, elevator systems, security controls, audio-video equipment, medical devices, and food industry applications.

Momentary switch operation with SPDT contact configuration. Red LED illumination with SOS symbol enhances visibility for emergency or signaling use. Designed for panel mounting with a precise 22.3 mm cutout size. Vandal-resistant and impact resistant stainless steel build, IK10 certified.

Ingress protection ratings of IP65 and IP67 for dust and water resistance. Compatible with 240 V DC and 240 V AC contact voltages at 3 A current. Durable design suitable for industrial, commercial, and public use cases. Manufactured in Switzerland with international safety approvals (CB, CCC, cUL, UL).
