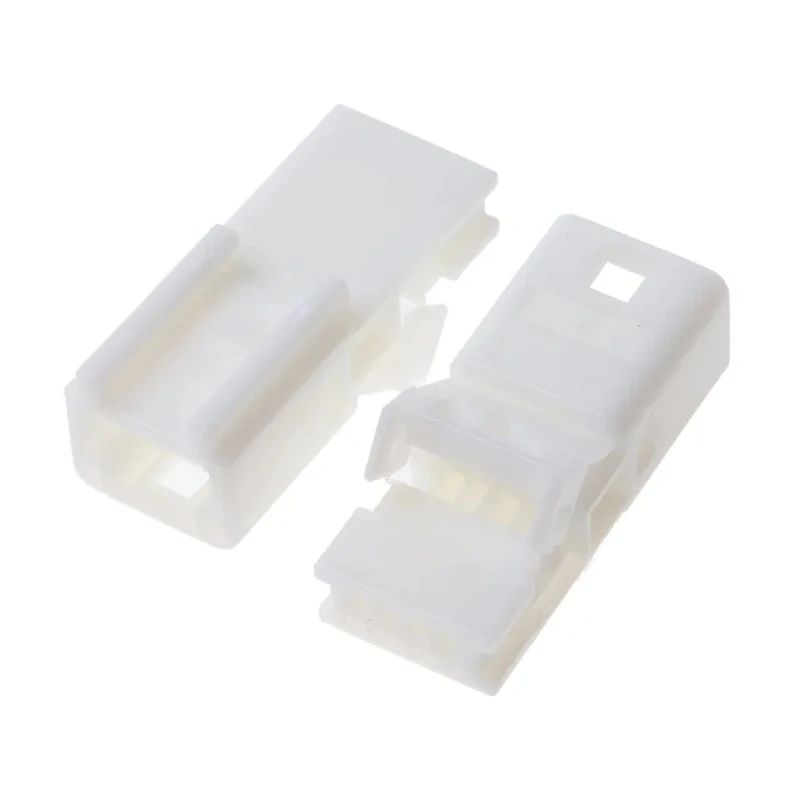

TE Connectivity TH 025 Automotive Connector Female Natural Panel Mount 4 Way Crimp Termination 1612035-1
Specifications
| Brand | TE Connectivity |
|---|---|
| Colour | Natural |
| Height | 15.7mm |
| Depth | 33.9mm |
| Width | 14mm |
| Gender | Female |
| Mount Type | Panel Mount |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | TH 025 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 4 |
Key Features
- Compact design with 2.2 mm pitch for limited space installations.
- Natural color housing made of durable polybutylene terephthalate.
- Panel mount type housing ensures secure mechanical attachment.
- Crimp termination for secure wire connection using brass contacts plated with tin.
- Operates reliably from -30°C to 105°C for automotive environment suitability.
- Features polarization and retainer blocks to prevent mismating and ensure terminal position.
- Complies with EU ELV and EU RoHS standards for safety and environmental compliance.
- Ideal for automotive safety, body and chassis systems, multimedia stations, and ECU connections.
Product Description
TE Connectivity 1612035-1 TH 025 Series automotive connector housing is designed for high performance and reliable connections in automotive electrical systems. This female panel mount connector features four contacts arranged in a single row with a compact 2.2 mm pitch, enabling high density connection where space is limited. The housing material is polybutylene terephthalate, providing ruggedness and durability necessary for automotive environments.
The connector assembly uses brass contacts plated with tin for excellent electrical conductivity and corrosion resistance, terminated via crimp method for secure wire attachment. Its natural color-coded housing aids in identification, while polarization prevents mismating during installation. Retainer blocks provide terminal position assurance to maintain reliable connections under vibration and movement.
Operating temperature range spans from -30°C to 105°C making it suitable for various automotive climate conditions. It complies with EU ELV and EU RoHS directives ensuring environmental and safety standards are met.
Applications include automotive safety and security systems, driver convenience modules, body and chassis electronics, mirror controls, multimedia stations, display screens, and airbag ECU interfaces. The connector's compact and robust design supports wiring where space savings without compromising performance are critical.
Compact 4-way female connector with 2.2 mm pitch. Natural color housing for identification and panel mount type. Crimp termination with brass contacts plated tin. Polarized design and retainer blocks to prevent mismating.
Wide operating temperature: -30°C to 105°C. Compliant with EU ELV and EU RoHS standards. Ideal for automotive electronic and control systems.
This connector is part of the TH 025 automotive connector series by TE Connectivity, engineered for advanced electronic automotive control systems requiring reliable, compact connections. It is compatible with separately ordered male or female terminals and other series components. Explore more Automotive Connectors and related products for comprehensive wiring solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 105°C.
This model features a compact design with a 2.2 mm pitch for its contacts.
It has a total of four contacts arranged in a single row.
The housing is made of polybutylene terephthalate, which provides durability.
This connector utilizes crimp termination for secure wire connection.
Yes, it features polarization and retainer blocks to prevent mismating and ensure terminal position assurance.
The dimensions are 15.7 mm in height, 33.9 mm in depth, and 14 mm in width.
It complies with EU ELV and EU RoHS standards for safety and environmental compliance.
It is suitable for automotive safety and security systems, body and chassis electronics, and multimedia stations, among others.
The minimum operating temperature for this connector is -30°C.
The contacts are made of brass and are plated with tin for corrosion resistance.
It includes retainer blocks that provide terminal position assurance, maintaining reliable connections even under vibration and movement.
