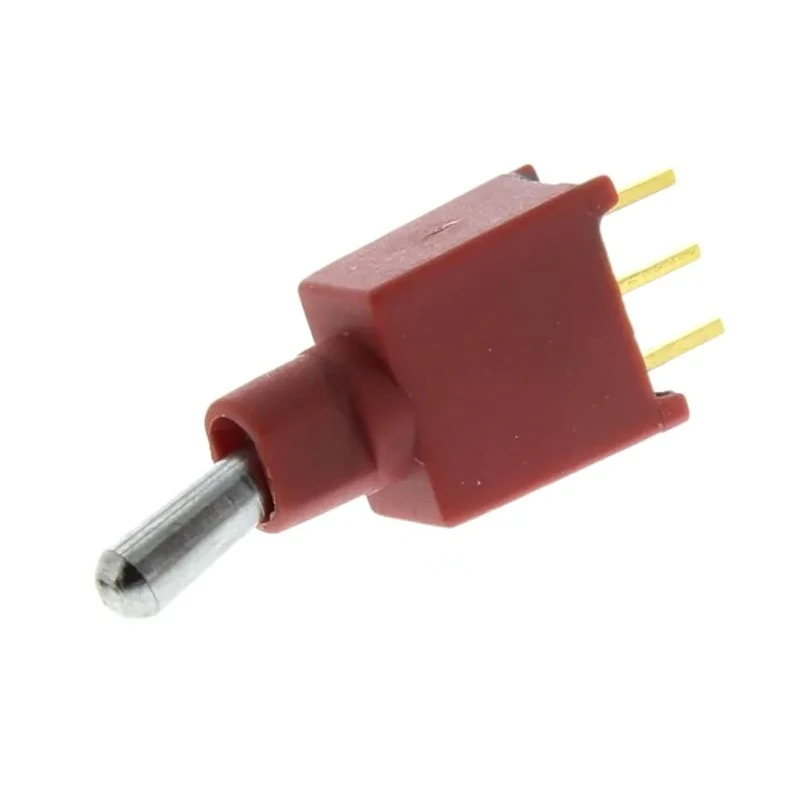

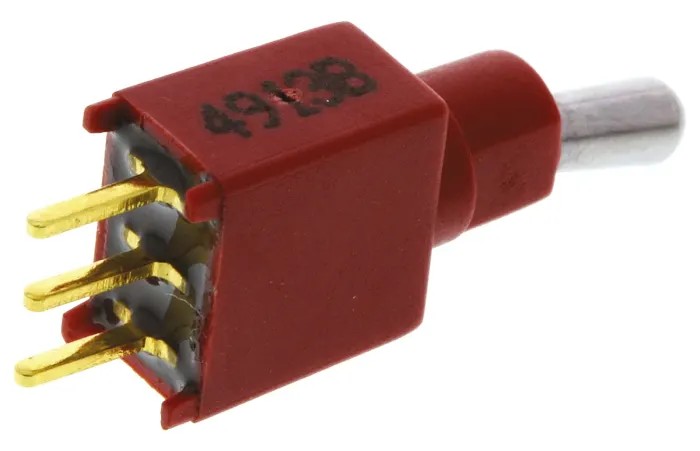

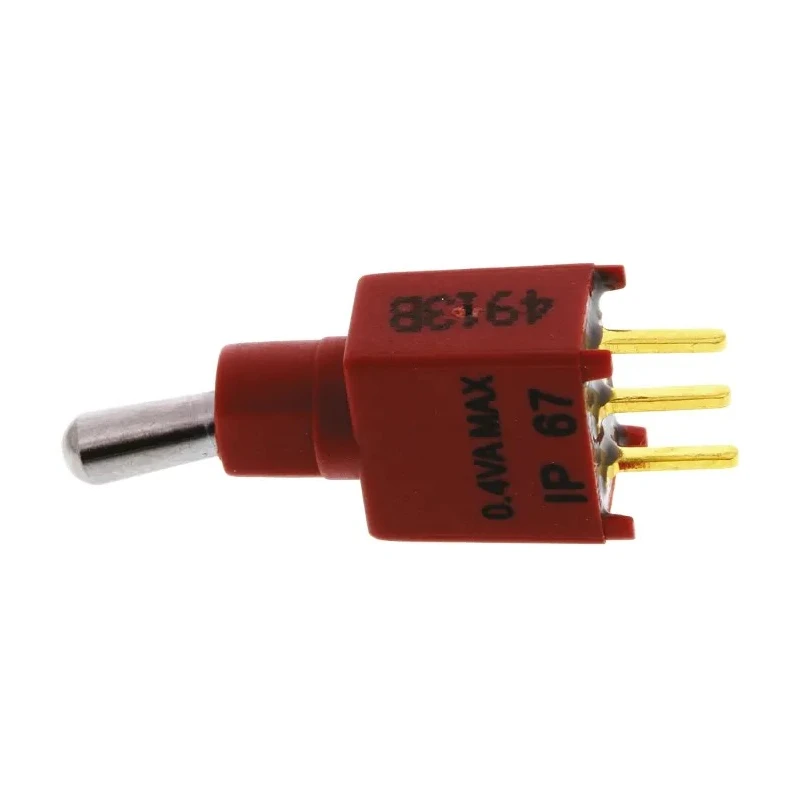

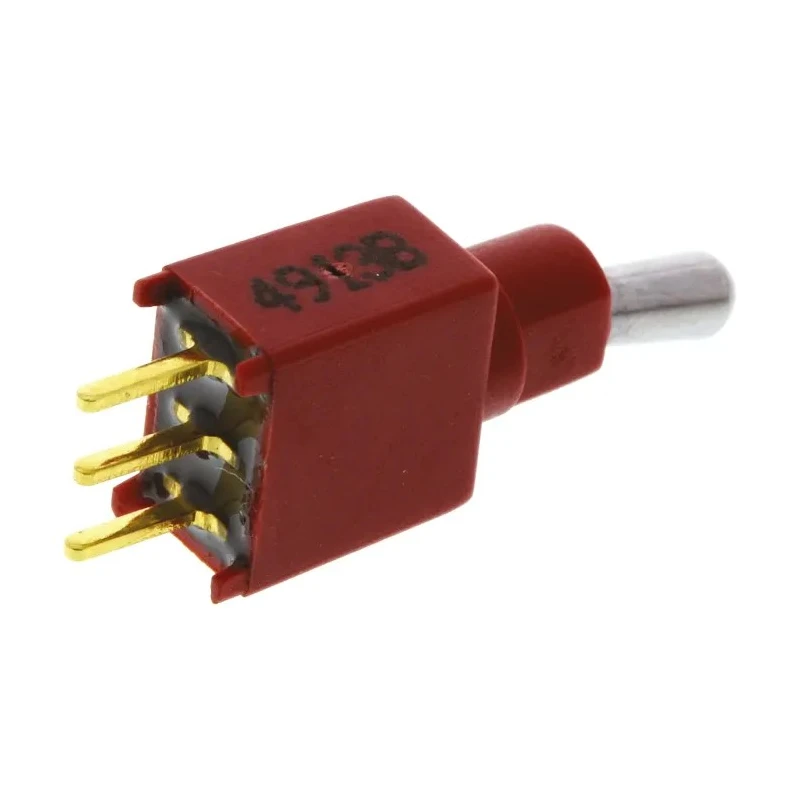

KNITTER-SWITCH Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 30 V dc 20 V ac TST 1D

KNITTER-SWITCH TST 1D is a high-quality toggle switch designed for PCB mount applications, offering an On-On SPDT configuration with through hole terminals. It supports 30 V dc and 20 V ac contact voltages, making it suitable for various medium voltage switching needs in industrial, laboratory, and electronic environments.

The switch is engineered with gold plated contacts for reliable low-level switching and low contact resistance. The actuator is manufactured from chrome plated brass, providing mechanical strength and durability over extended use. It features a 6.1 mm actuator length and can operate reliably across temperatures ranging from -30°C to 85°C.

With a sealed, washable design rated to IP67, the TST 1D toggle switch offers excellent environmental protection, making it ideal for challenging conditions requiring robust electrical components. It supports a maximum contact current of 50 mA and offers a mechanical life expectancy of up to 50,000 operations, ensuring longevity in industrial setups.

The switch provides superior insulation resistance of at least 1000 MΩ and dielectric strength of 1000 V at 50 Hz for one minute, ensuring electrical safety and performance. It also complies with RoHS standards, supporting environmentally responsible manufacturing.

This toggle switch is subminiature and designed specifically for PCB mounting in electronic assemblies. Gold plating on contacts enhances conductivity and reduces the risk of oxidation or corrosion. IP67 rating confirms full sealing against dust and temporary immersion, suited for tough industrial environments.

Chrome plated brass actuator combines aesthetic finish with corrosion resistance and mechanical durability. Its specified temperature range covers most industrial and laboratory ambient conditions. Ideal for use in electrical control, automation, and electronic circuit applications requiring reliable, repeated switching.

Compact and lightweight, it allows efficient integration into dense PCB layouts. The product's origin is Taiwan, Province Of China, assuring quality manufacturing standards.

For advanced PCB assembly projects, electronic equipment manufacturing, and control systems, the KNITTER-SWITCH TST 1D Toggle Switch delivers dependable performance, long life, and excellent sealing. Browse the Electronics & Electricals category on EnvMart for similar high-quality switches and electrical components designed to meet rigorous industrial standards.
