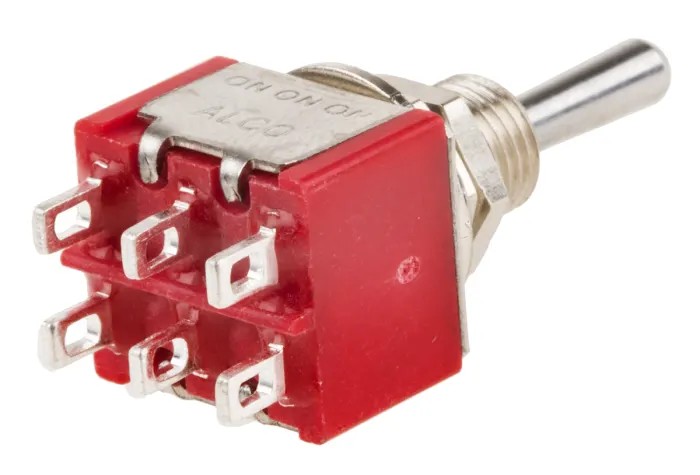

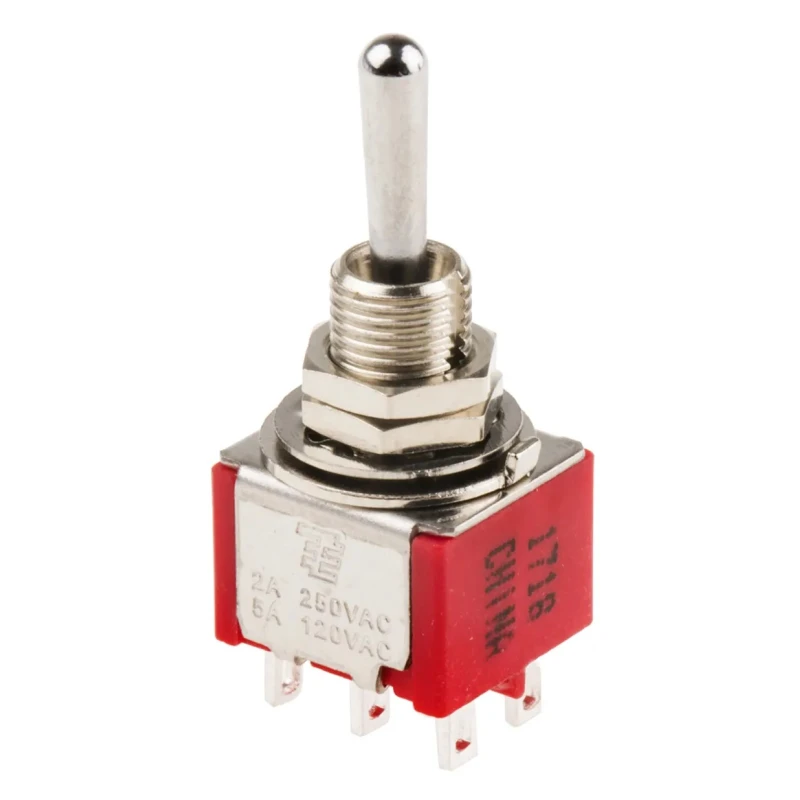

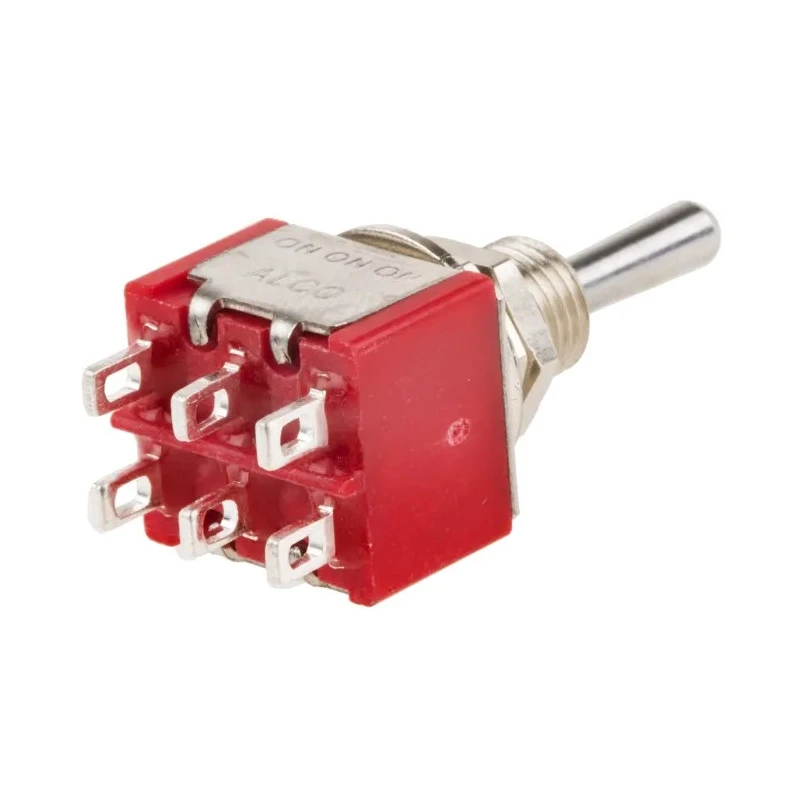

TE Connectivity Panel Mount Toggle Switch On-On-On DP3T Solder Terminal 24 V DC 120 V AC 3-1825139-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DP3T |
| Switch Configuration | 2P |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS, IEC, EN, cULus, UL |
| Switch Operation | On-On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 24V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 6000Cycles |
| Contact AC Voltage | 120V ac |
| Actuator Material | Phenolic |
Key Features
- Panel mount design ensures firm and easy installation.
- Switch operation supports On-On-On configuration for versatile control.
- Rated for 5 A contact current to handle moderate electrical loads.
- Epoxy sealed terminals provide protection and durability.
- Stainless steel frame with brass tin plated solder support for long lifespan.
- High IP67 rating for water and dust resistance enabling use in harsh environments.
- Phenolic actuator material ensures mechanical robustness and reliability.
- Operates within a temperature range of -30°C to 85°C suitable for various industrial applications.
Product Description
TE Connectivity 3-1825139-9 is a high-quality panel mount toggle switch designed for industrial, automation, and electrical applications requiring reliable switching at 24 V DC and 120 V AC.
This toggle switch features a DP3T (Double Pole 3 Throw) contact configuration with On-On-On switch operation, allowing it to control multiple circuits with three distinct switch positions.
Mounting is via the panel mount mechanism with solder terminals for secure and durable electrical connections. The switch's terminals are epoxy sealed to prevent ingress of contaminants, making it suitable for harsh industrial environments.
The actuator is constructed from phenolic material which offers excellent mechanical strength, while the stainless steel frame combined with brass tin-plated solder supports enhances corrosion resistance and durability.
This product supports a contact current rating of 5 A and offers protection with an IP67 rating, making it dust tight and protected against immersion in water.
Designed to operate efficiently in a temperature range from -30°C to 85°C, it meets critical electrical and mechanical standards including RoHS, IEC, EN, cULus, and UL certifications, ensuring safety and regulatory compliance.
Panel mount installation for firm and secure mounting. On-On-On DP3T switch operation for versatile circuit control. 5 A contact current rating suitable for moderate load switching. Epoxy sealed terminals to enhance durability and protection.
Corrosion-resistant stainless steel frame with brass tin plating. Phenolic actuator for robust mechanical performance. IP67 rating ensures resistance to dust and water ingress. Temperature operating range from -30°C to 85°C.
Mechanical life of 6000 cycles for extended reliability. Compliance with RoHS, IEC, EN, cULus, and UL standards.
This Toggle Switch is ideal for use in industrial automation systems, electrical control panels, machinery operation, and other applications requiring reliable and durable switching components. Its robust construction and protection ratings make it suitable for demanding electrical environments.
Explore more high-quality switch products and industrial electrical components at EnvMart to support your automation and electrical system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch features a DP3T (Double Pole 3 Throw) contact configuration, allowing for On-On-On switch operation to control multiple circuits with three distinct positions.
This model can operate at a maximum temperature of 85°C, making it suitable for various industrial applications.
The switch has an IP67 rating, ensuring it is dust tight and protected against immersion in water, suitable for harsh environments.
It supports a contact current rating of 5 A, suitable for handling moderate electrical loads.
The switch is equipped with solder terminals, which provide secure and durable electrical connections.
The actuator is made from phenolic material, which offers excellent mechanical strength and reliability.
The panel cutout size required for installation is 6.35 mm.
It complies with RoHS, IEC, EN, cULus, and UL standards, ensuring safety and regulatory compliance.
The mechanical life of this switch is rated at 6000 cycles, indicating its reliability over time.
This model operates efficiently within a temperature range from -30°C to 85°C, suitable for various industrial environments.
It is ideal for use in industrial automation systems, electrical control panels, and machinery operation, requiring reliable and durable switching components.
