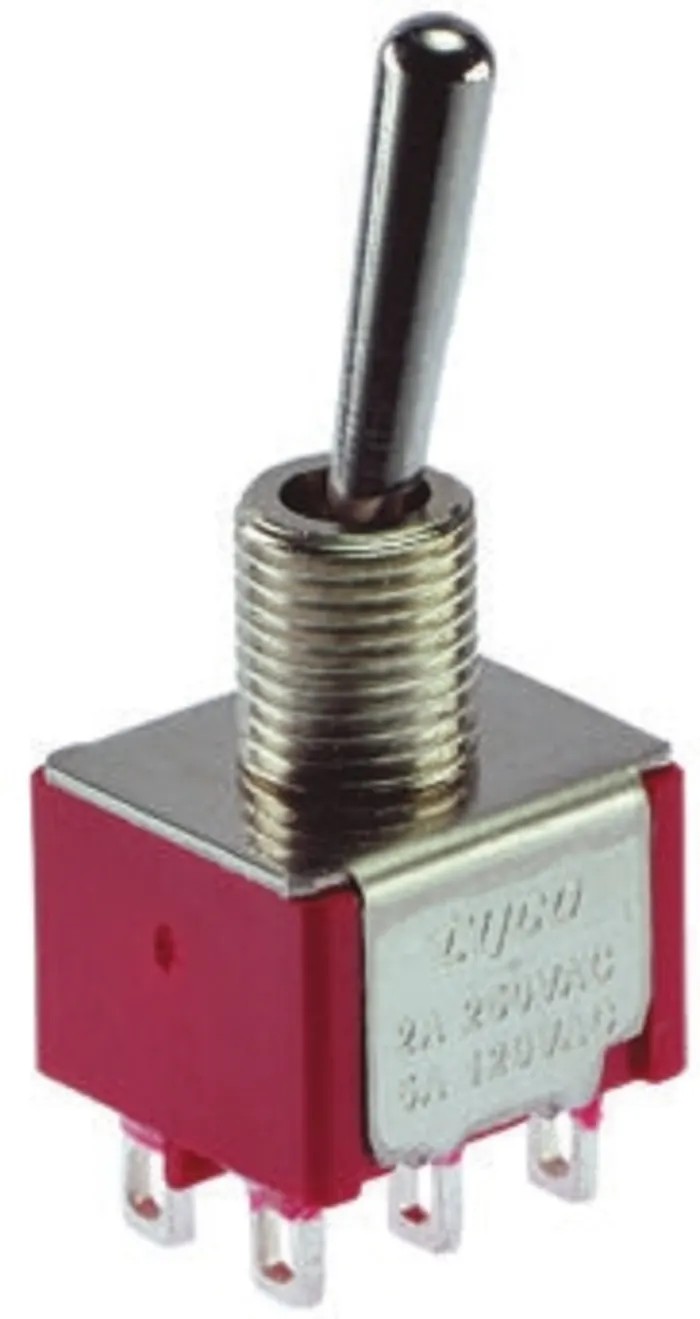

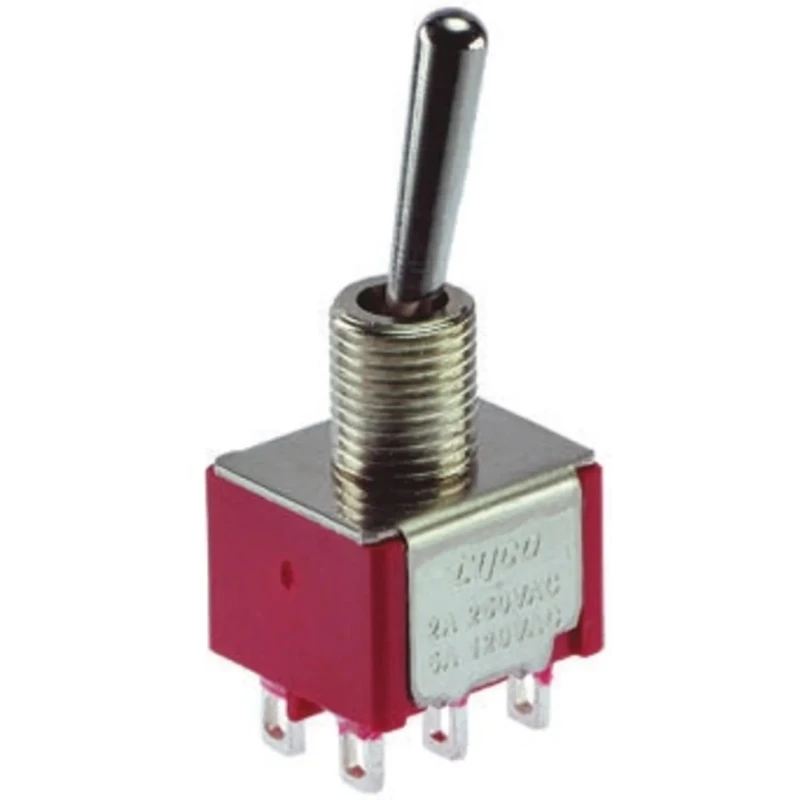

TE Connectivity Panel Mount Toggle Switch On-Off-On DPDT 5A 28V dc 125V ac 1-1825139-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.45in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
| C & K Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder TerminalBrand | C & K |
Key Features
- DPDT contact configuration for dual pole, double throw switching.
- On-Off-On switch operation suitable for multi-position control.
- Panel mount type design with solder terminal connection.
- Operates within a temperature range of -30°C to 85°C.
- Panel cutout size of 6.35 mm ensures easy mounting.
- Epoxy sealed terminals provide durability and reliability.
- Stainless steel frame with brass tin-plated solder support for corrosion resistance.
- Phenolic actuator material enhances mechanical strength.
Product Description
TE Connectivity 1-1825139-0 Panel Mount Toggle Switch is designed for industrial and electrical applications requiring robust and versatile switching solutions. This toggle switch features a Double Pole Double Throw (DPDT) configuration providing On-Off-On operation, allowing multi-directional control in circuits carrying up to 5A at 28V dc or 125V ac. The solder terminal type ensures secure electrical connections.
The switch is constructed with a stainless steel frame and brass tin-plated solder support, sealed with epoxy for enhanced durability. It is built to withstand operating temperatures from -30°C to 85°C, making it suitable for a wide range of industrial environments.
The actuator is made of phenolic material, providing mechanical strength and reliability. Its compact size with a panel cutout dimension of 6.35 mm and overall length of 0.5 inches ensures easy installation on control panels.
This toggle switch complies with RoHS standards, affirming environmentally friendly manufacturing and materials. It is ideal for use in industrial machinery, automation equipment, control panels, and consumer electronics requiring precise switching control and long service life.
DPDT contact configuration for dual pole switching applications. On-Off-On switch operation for multi-position control. Epoxy sealed terminals enhance longevity and prevent contamination. Stainless steel and brass construction for corrosion resistance.
Phenolic actuator material for durable mechanical performance. Compact panel mount design with 6.35 mm cutout. Operating temperature range -30°C to 85°C for diverse environments. Supports 5A switching current at 28V dc and 125V ac voltage ratings.
Complies with RoHS for environmental and safety compliance.
This product is a trusted solution for industrial, electrical, automation, and manufacturing sectors where reliable Toggle Switches are essential. Browse the Electronics & Electricals category on EnvMart for compatible control switches and components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Double Pole Double Throw (DPDT) contact configuration, allowing for versatile switching applications.
It supports a maximum switching current of 5A at 28V DC and 125V AC.
The switch operates effectively within a temperature range of -30°C to 85°C.
This toggle switch uses solder terminals for secure electrical connections.
The dimensions are 0.5 inches in length, 0.45 inches in width, and 0.35 inches in height, with a panel cutout size of 6.35 mm.
It has a stainless steel frame, brass tin-plated solder support, and a phenolic actuator material, enhancing its mechanical strength and corrosion resistance.
Yes, it complies with RoHS standards, indicating environmentally friendly manufacturing and materials.
The actuator length is 10.41 mm.
It is suitable for use in industrial machinery, automation equipment, control panels, and consumer electronics that require precise switching control.
This model belongs to the Gemini A series.
It provides an On-Off-On switch operation, allowing for multi-position control.
The country of origin for this product is India.
