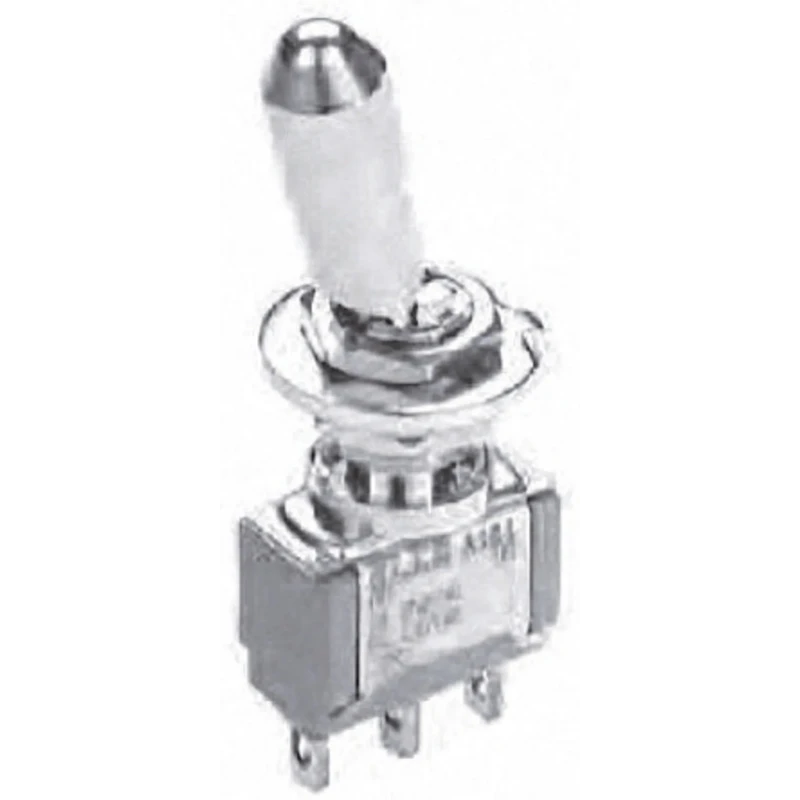

TE Connectivity Panel Mount Toggle Switch SPDT On-On 28 V dc 125 V ac Gemini A Series 1825136-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| Width | 0.27in |
| Mount Type | Panel |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 0.25 in |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 16.26mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 125V ac |
| Actuator Material | Phenolic |
Key Features
- Operates at contact voltages of 28 V dc and 125 V ac.
- Supports a switch contact current of 5A ensuring robust electrical performance.
- Features a phenolic actuator with a length of 16.26 mm for durable usage.
- Designed for panel mount with through hole terminal type for secure installation.
- Operates reliably between -30°C minimum and 85°C maximum operating temperatures.
- Compact dimensions of 0.5 in length, 0.35 in height, and 0.27 in width.
- Epoxy sealed terminals and stainless steel frame provide corrosion resistance and longevity.
- Compliance with RoHS standards ensures environmental safety.
Product Description
TE Connectivity model 1825136-7 is a Gemini A Series panel mount toggle switch featuring single pole double throw (SPDT) On-On switch operation designed for electrical and automation applications.
This toggle switch is rated for contact voltages of 28 V dc and 125 V ac, supporting a continuous switch contact current of 5A to ensure safe and stable switching under load.
The actuator is constructed from phenolic material, measuring 16.26 mm in length, providing durability and reliable tactile feedback. The switch mounting is panel type with through hole terminals, facilitating robust mechanical and electrical connections. It features epoxy sealed terminals and a stainless steel frame with brass tin-plated solder supports for enhanced corrosion resistance and mechanical strength.
The switch has a compact form factor with dimensions approximately 0.5 inches in length, 0.35 inches in height, and 0.27 inches in width, fitting easily into various panel layouts. The switch is rated to operate in a temperature range from -30°C to 85°C, making it suitable for diverse industrial environments.
RoHS compliance confirms the product meets environmental standards limiting hazardous substances, supporting green manufacturing initiatives. SPDT contact configuration offers versatile circuit switching. On-On operation provides a stable switching mechanism between two circuits.
Panel mount with through hole terminals enables simple and secure integration within control panels and electronic assemblies. Phenolic actuator ensures long-lasting mechanical performance. Temperature endurance supports use in demanding industrial settings.
Epoxy sealed terminals and stainless steel frame add durability and corrosion protection. Compact size allows easy installation in tight spaces. RoHS compliance ensures environmental safety standards are met. This toggle switch is ideal for industrial automation, electrical panels, and control systems requiring reliable manual switching components.
Explore more Toggle Switches and related TE Connectivity products for diverse applications on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at contact voltages of 28 V dc and 125 V ac.
It supports a continuous switch contact current of 5A.
The switch has compact dimensions of 0.5 inches in length, 0.35 inches in height, and 0.27 inches in width.
It features a phenolic actuator with a length of 16.26 mm.
It operates reliably between -30°C minimum and 85°C maximum.
This unit is designed for panel mount with through hole terminals for secure installation.
Yes, it is compliant with RoHS standards, ensuring it meets environmental safety requirements.
The switch features a single pole double throw (SPDT) contact configuration.
It has through hole terminals for robust mechanical and electrical connections.
The switch features epoxy sealed terminals and a stainless steel frame, enhancing its corrosion resistance.
It is ideal for industrial automation, electrical panels, and control systems requiring reliable manual switching components.
The required panel cutout size for this toggle switch is 0.25 inches.
