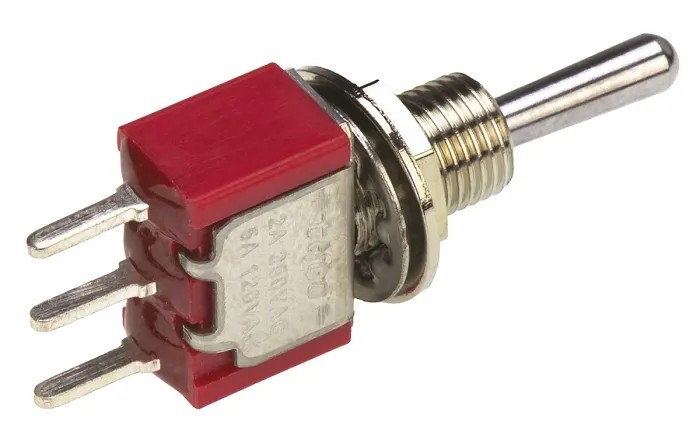

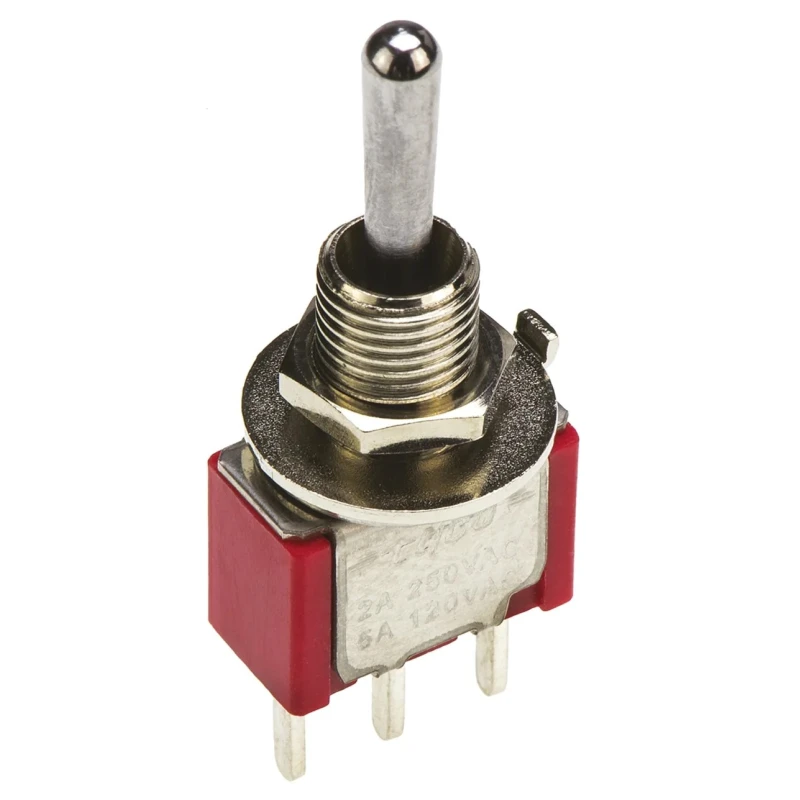

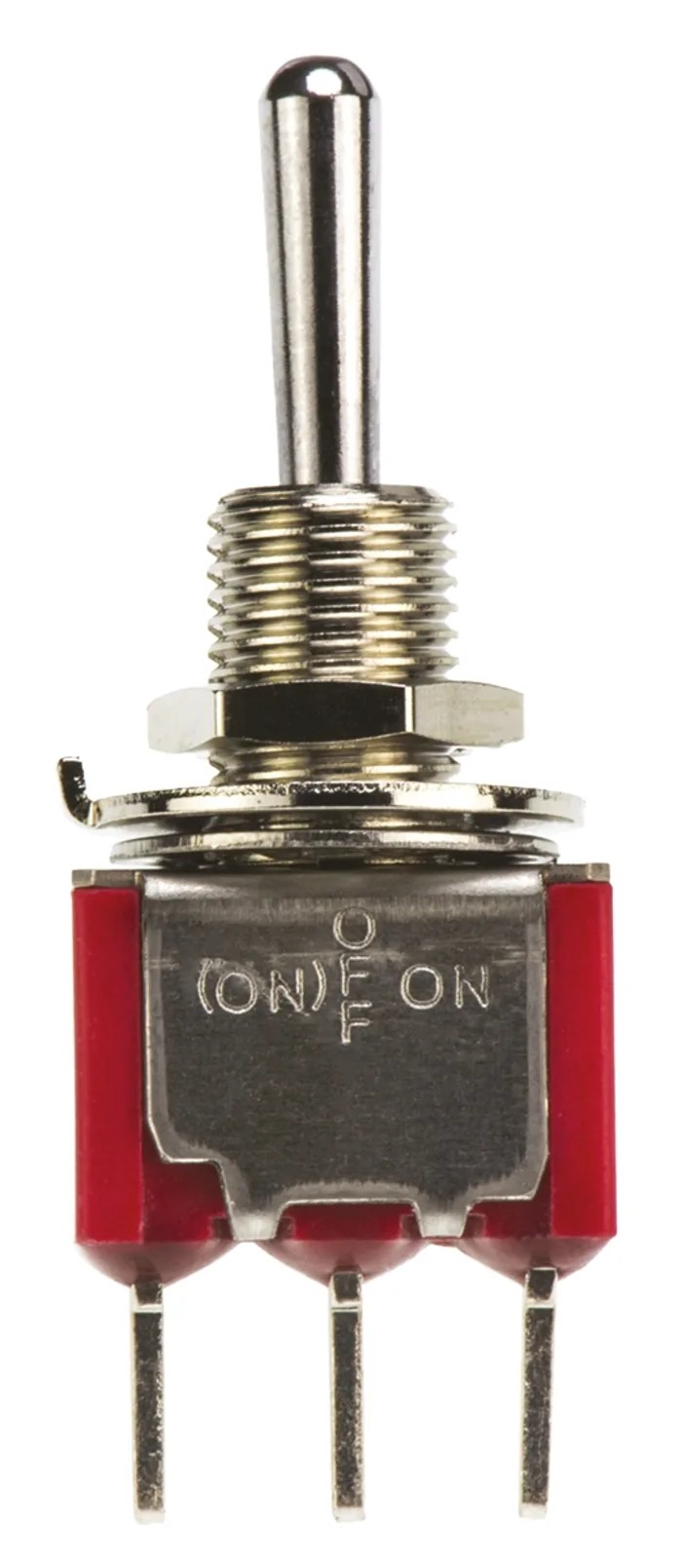

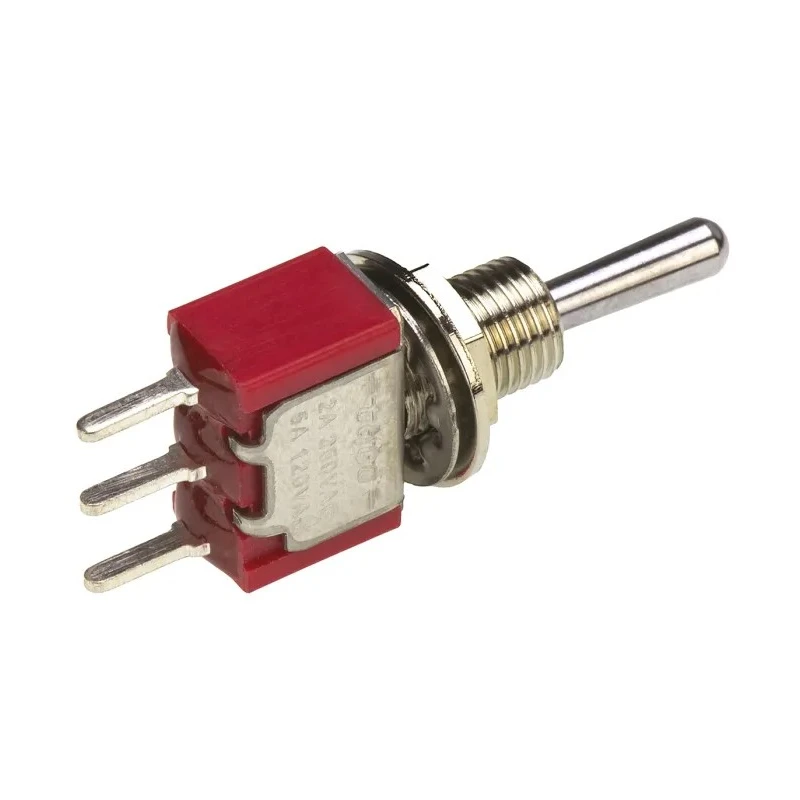

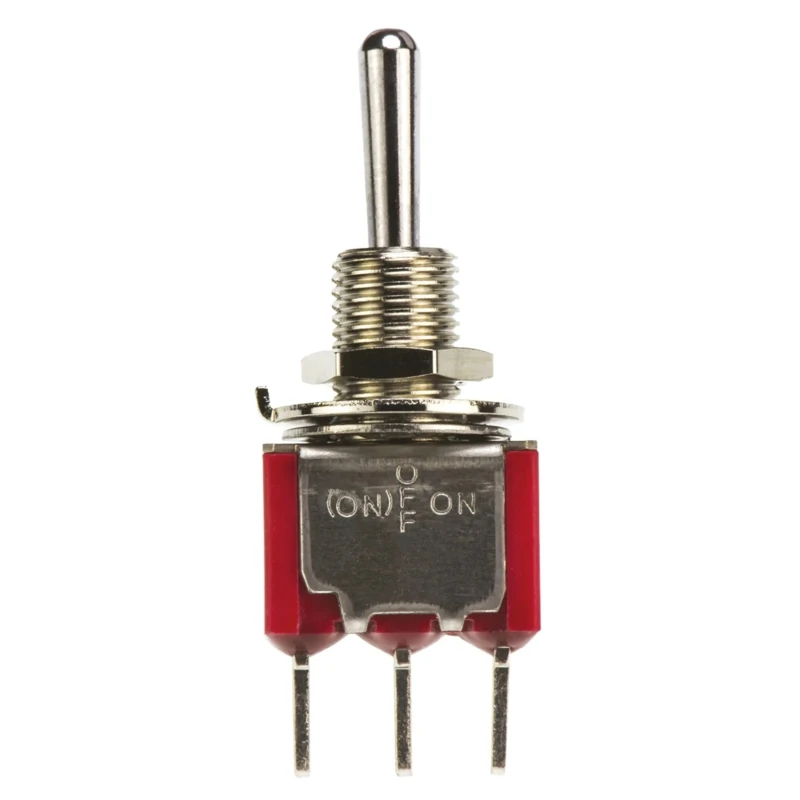

TE Connectivity Gemini A Series Toggle Switch PCB Mount On-Off-On SPDT Through Hole Terminal 28 V dc 115 V ac 5-1825137-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.27in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Compact Gemini A Series toggle switch with epoxy sealed terminals.
- Stainless steel frame and brass tin plated solder support for durability.
- PCB mount type with through hole terminals ensuring secure electrical connections.
- Panel cutout size of 6.35 mm and actuator length of 10.41 mm for precise installation.
- Rated for a switch contact current of 5A suitable for various electrical applications.
- IP67 rated for protection against dust and water ingress.
- Operates over a wide temperature range from -30°C to 85°C.
- Actuator material made of phenolic ensuring mechanical strength.
Product Description
TE Connectivity 5-1825137-1 toggle switch is a high-quality PCB mount On-Off-On SPDT switch rated at 28 V dc and 115 V ac with a 5A contact current capacity. The Gemini A Series device features an epoxy sealed terminal construction and robust stainless steel frame with brass tin plated solder supports for excellent durability and reliability. Designed for precise panel mounting with a 6.35 mm cutout and an actuator length of 10.41 mm, the switch fits standard electrical and automation equipment.
This toggle switch provides break-before-make contact action ensuring clear switching commands in electrical circuits. It is IP67 rated, offering outstanding protection against dust ingress and water immersion, making it ideal for industrial, automation, and electrical control applications requiring durability and high reliability.
Operating reliably across temperatures from -30°C to 85°C, it uses a phenolic actuator material that maintains mechanical integrity under stress and temperature variations. The switch design facilitates through-hole PCB mounting, simplifying assembly for OEMs and electrical equipment manufacturers.
Typical applications include circuit on/off control in industrial automation, switchboards, electrical panels, and other equipment requiring robust manual switching. Its combination of performance ratings and durable materials suit demanding operational environments including industrial, manufacturing, and commercial electronics.
Compact Gemini A Series toggle switch with epoxy sealed terminals. Stainless steel frame and brass tin plated solder support for durability. PCB mount type with through hole terminals ensuring secure electrical connections.
Panel cutout size of 6.35 mm and actuator length of 10.41 mm for precise installation. Rated for a switch contact current of 5A suitable for various electrical applications. IP67 rated for protection against dust and water ingress.
Operates over a wide temperature range from -30°C to 85°C. Actuator material made of phenolic ensuring mechanical strength. Explore a wide range of Toggle Switches and related electrical components at EnvMart for industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for On-Off-On operation.
The maximum operating temperature for this toggle switch is 85°C.
It has an IP67 rating, providing protection against dust ingress and water immersion.
The required panel cutout size for this toggle switch is 6.35 mm.
The actuator length of this model is 10.41 mm.
It is rated for a contact DC voltage of 28V and an AC voltage of 115V.
The switch has a contact current capacity of 5A, suitable for various electrical applications.
This unit supports PCB mounting with through-hole terminals, ensuring secure electrical connections.
The actuator is made of phenolic material, which provides mechanical strength.
The minimum operating temperature for this toggle switch is -30°C.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
It is suitable for circuit on/off control in industrial automation, switchboards, and electrical panels.
