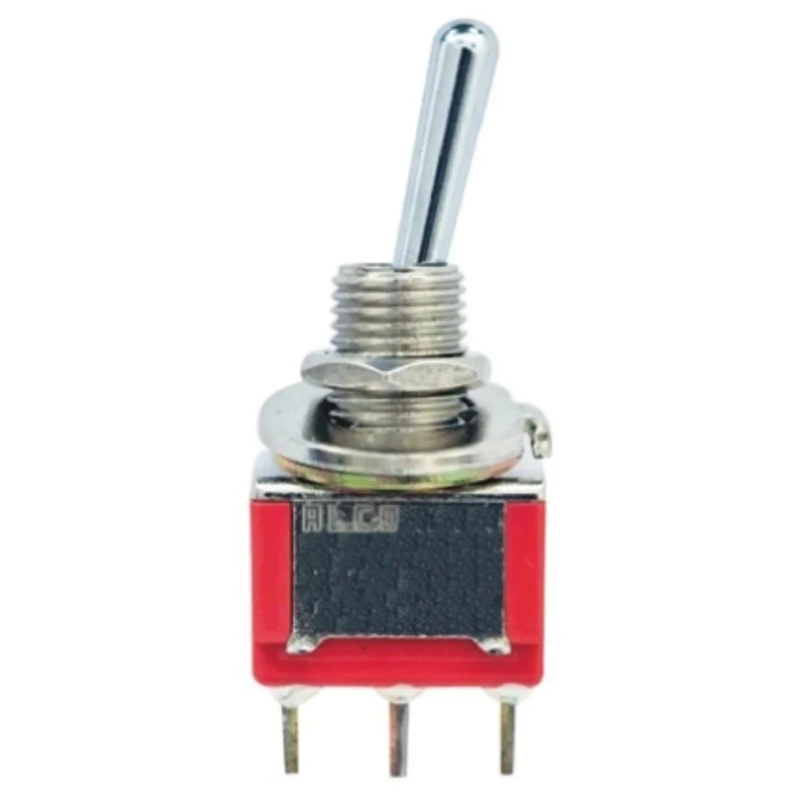

TE Connectivity Gemini A Series Toggle Switch SPDT On-Off-On PCB Mount Through Hole, 28V DC, 115V AC 5-1825137-0

TE Connectivity 5-1825137-0 Gemini A Series Toggle Switch is a durable industrial-grade SPDT toggle switch designed for PCB mounting with through-hole terminals. It operates with an On-Off-On configuration supporting both 28V DC and 115V AC voltages, catering to a wide range of electrical and automation needs.

This switch is rated for a 400mA contact current and offers excellent ingress protection with an IP67 rating, ensuring resistance against dust and water ingress for harsh industrial conditions. The actuator, crafted from phenolic, measures 10.41 mm in length, facilitating reliable and ergonomic switching action.

Operating temperature ranges from -30°C to 85°C, making it suitable for demanding environments such as manufacturing, industrial machinery, electrical automation systems, and HVAC control panels. The compact construction with dimensions of 0.5 inches length, 0.35 inches height, and 0.27 inches width allows seamless integration into PCB assemblies.

The Gemini A series is RoHS compliant and features epoxy sealed terminals which improve durability and lifespan. Additionally, the stainless steel frame combined with brass tin-plated solder support contributes to enhanced mechanical strength and corrosion resistance.

This toggle switch is designed for reliable switching applications requiring a break-before-make contact timing with a switch configuration of On-Off-(On). Its panel cutout size of 6.35 mm ensures compatibility with standard mounting setups.

The switch features a through-hole terminal type for PCB mounting. It supports a switch contact current of 400mA and offers an IP67 rating for dust and water resistance. The actuator is made of phenolic material with a length of 10.41 mm for reliable operation.

It is designed for operating temperatures ranging from -30°C to 85°C, suitable for industrial environments. The panel cutout size is 6.35 mm, with compact dimensions of 0.5 in length, 0.35 in height, and 0.27 in width. The toggle switch is RoHS compliant and epoxy sealed to enhance terminal durability.

Its stainless steel frame and brass tin-plated solder support ensure long-term reliability. This switch is ideal for automation, electrical, and industrial control applications.

Ideal for use in industrial, electrical, automation, and manufacturing processes, the TE Connectivity Gemini A Series toggle switch offers robust performance, reliability, and ease of installation.
