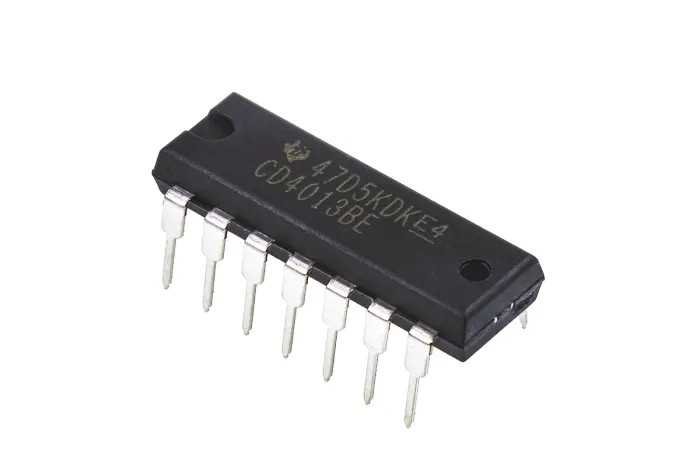

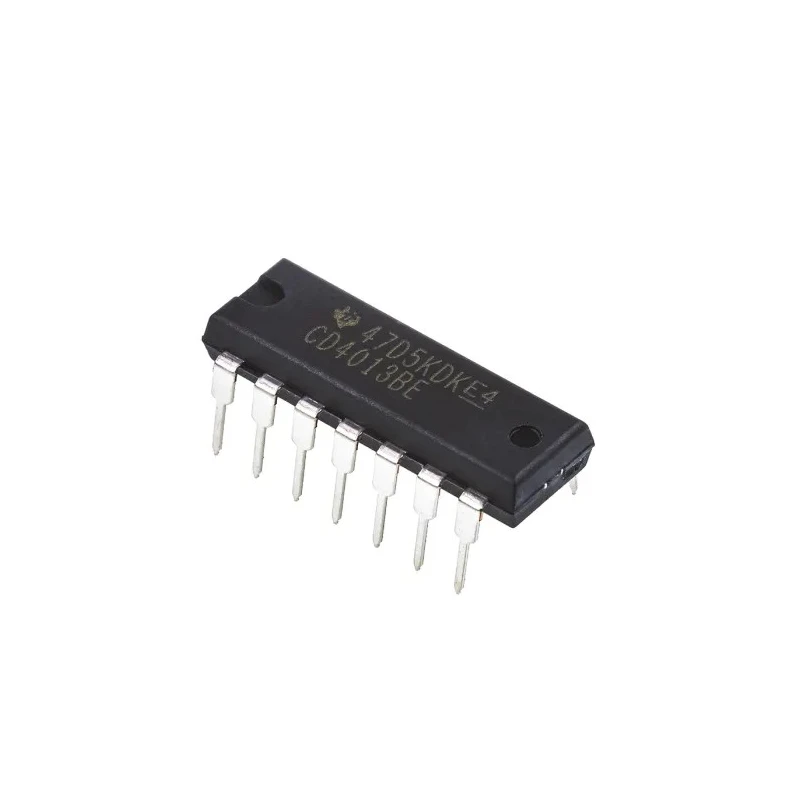

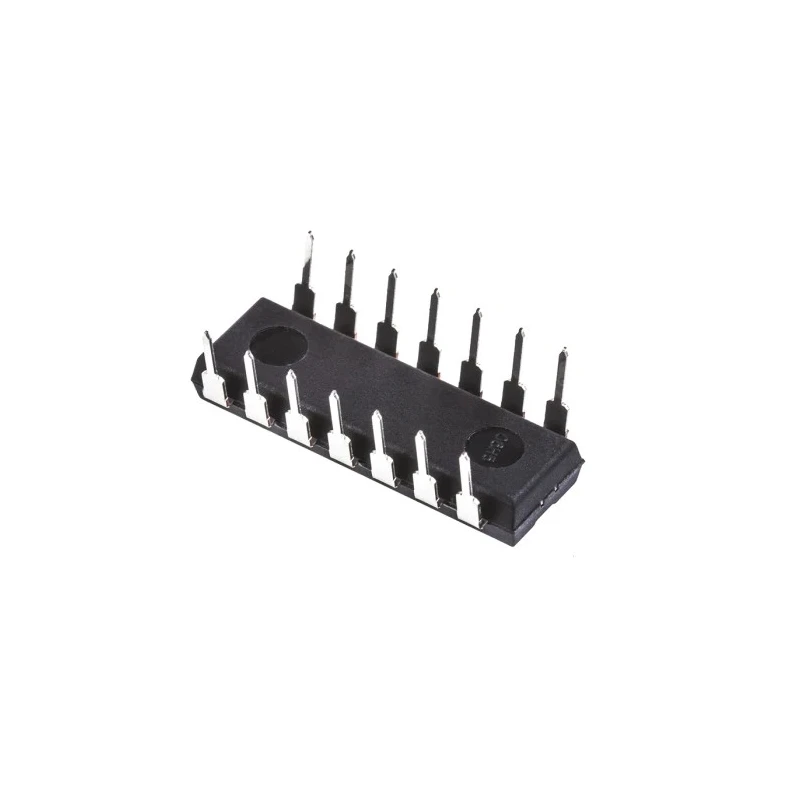

Texas Instruments 2 Flip Flop IC 4000 Series, 14-Pin PDIP, Single Ended Input, 24MHz Clock Frequency CD4013BE

Texas Instruments CD4013BE is a dual D flip flop integrated circuit from the 4000 series CMOS logic family. This IC features 2 flip flop elements per chip in a 14-pin PDIP through-hole package, making it suitable for incorporation into a variety of electronic and digital logic circuits.

It operates over a wide supply voltage range of 3V to 18V and supports single ended inputs with both inverting and non-inverting polarities. The clock frequency capability of 24MHz enables fast switching, while the maximum propagation delay of 90ns ensures timely and reliable signal processing.

The device is designed for positive edge triggering and functions well within an ambient temperature range of -55°C to 125°C, providing robustness for industrial, laboratory, and general-purpose electronics applications. Its compact physical dimensions allow for efficient PCB layout and integration.

Typical applications include digital counters, shift registers, frequency dividers, and various timing and memory devices used in industrial automation, instrumentation, and embedded systems.

Package contents include one CD4013BE IC with a 14-pin PDIP form factor. Operates from 3V to 18V supply voltage range. Dual D flip flop configuration with positive edge clock trigger. Single ended input type supporting inverting and non-inverting polarity.

Maximum propagation delay time of 90ns at the clock load. Operating temperature range from -55°C to 125°C. 14-pin PDIP through hole mount package. Compact length of 19.3mm and height of 4.57mm. Two flip flop elements per chip for versatile logic implementation.

Part of Texas Instruments 4000 series CMOS logic family.

Suitable for industrial, laboratory, construction, and electronic manufacturing uses. Texas Instruments products offer quality and reliability for all your digital logic IC requirements.
