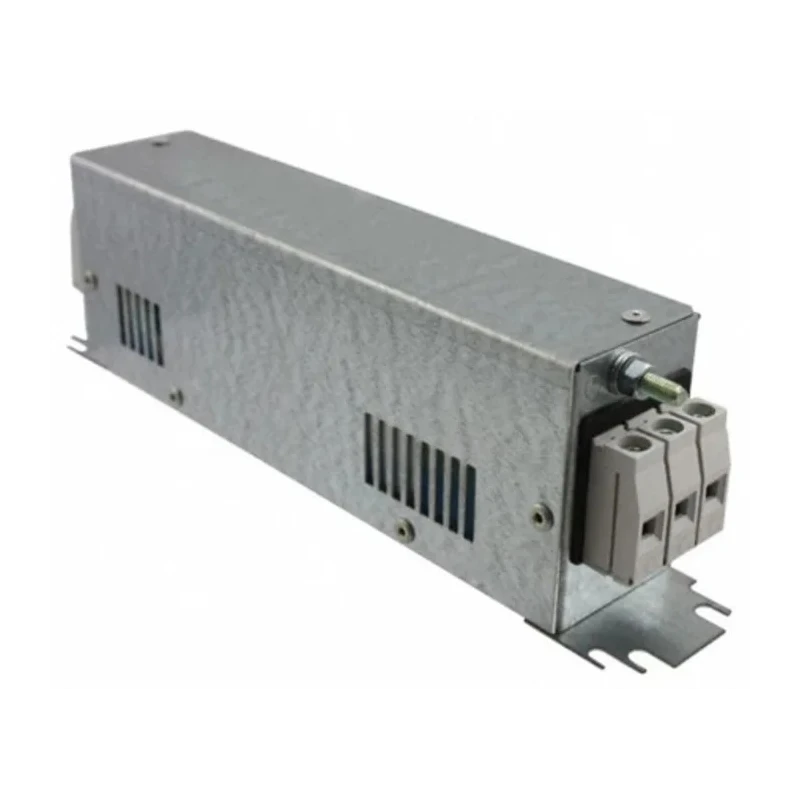

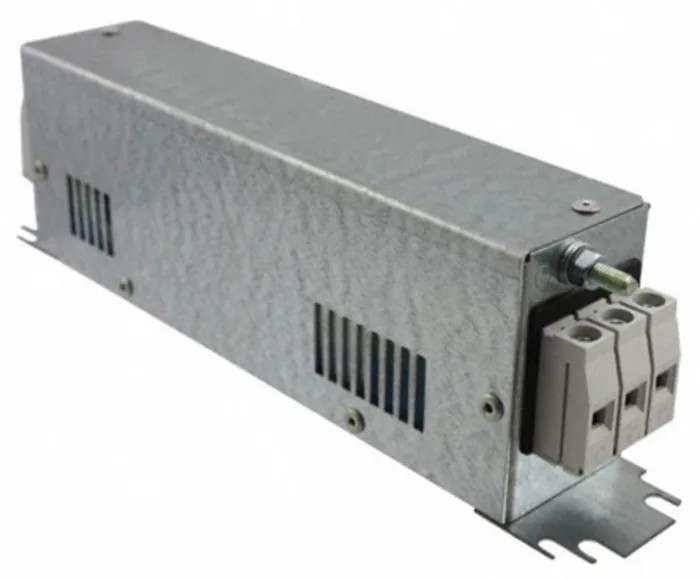

Schurter High Attenuation Flange RFI Power Line Filter 64A 480V ac 60Hz Screw 3 Phase FMAC-091E-6410
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| Height | 58mm |
| Length | 141mm |
| Model | FMAC-091E-6410 |
| Depth | 265mm |
| Mount Type | Flange |
| Operating Frequency | 60Hz |
| Series | FMAC ECO |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Resistance | 1.4mΩ |
| Capacitance | 4.7μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 64A |
| Number of Phases | 3 |
| Leakage Current | 10.2mA |
| Maximum Voltage | 480V ac |
| Inductance | 550μH |
| Standards/Approvals | UL 1283, IEC 60939 |
| Termination Style | Screw |
| Power Loss | 17W |
Key Features
- Designed for high symmetrical and asymmetrical attenuation in a frequency range of 10kHz to 300MHz.
- Flange mounting with screw clamp terminal connections ensures secure installation.
- Suitable for photovoltaic systems and industrial applications to reduce mains interference voltage.
- Rated for a maximum current of 64A and maximum voltage of 480V ac.
- Operates reliably between -25°C and 100°C ambient temperatures.
- Features capacitance of 4.7μF and inductance of 550μH for effective EMI suppression.
- Leakage current is limited to 10.2mA to ensure electrical safety compliance.
- Compact dimensions with length 141mm, depth 265mm, height 58mm for versatile installation.
Product Description
Schurter FMAC-091E-6410 is a high-performance flange mount RFI power line filter specially designed for 3-phase industrial and photovoltaic systems. It operates at 64A maximum current and 480V ac voltage with an operating frequency of 60Hz, offering robust EMI suppression and protection against interference voltages from the mains supply.
This single-stage FMAC ECO series filter delivers high symmetrical and asymmetrical attenuation across a broad frequency range from 10kHz up to 300MHz. It features screw clamp terminals for secure connections and flange mounting for easy installation in industrial equipment.
The filter is engineered for reliable operation within -25°C to 100°C, with capacitance of 4.7μF and inductance of 550μH providing effective impedance to unwanted noise signals. Leakage current is controlled to 10.2mA to meet stringent safety requirements.
With compact dimensions of 141mm length, 265mm depth, and 58mm height, the FMAC-091E-6410 integrates seamlessly into electrical systems with limited space. Its power loss rating of 17W ensures efficient operation without excessive heat generation.
Compliant with UL 1283 and IEC 60939 standards, and certified by VDE and UL, this filter is qualified for use in equipment according to IEC/EN 60950 regulations. High attenuation performance for EMI/RFI suppression up to 300MHz.
Flange mount type with screw termination for reliable electrical connection. Designed for industrial environments and photovoltaic system integration. Extended operating temperature range from -25°C to 100°C. Compact dimensions fit a variety of installation spaces.
Low power loss minimizes energy consumption and heat generation. Leakage current limited to promote electrical safety and compliance. Meets international safety and performance standards including UL and IEC. Robust design with a resistance value of 1.4mΩ ensuring minimal voltage drop.
Ideal for industrial, manufacturing, and renewable energy applications requiring reliable EMI filtering and protection. Explore more Schurter Power Line Filters and EMI suppression devices on EnvMart to enhance your system’s electromagnetic compatibility and operational reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The FMAC-091E-6410 has a maximum current rating of 64A.
This model operates at a maximum voltage of 480V ac.
It effectively suppresses frequencies in the range of 10kHz to 300MHz.
The dimensions are 141mm in length, 265mm in depth, and 58mm in height.
It uses flange mounting with screw clamp terminal connections for secure installation.
The operating temperature range is from -25°C to 100°C.
The capacitance value is 4.7μF.
It complies with UL 1283 and IEC 60939 standards.
The leakage current is limited to 10.2mA.
The inductance value is 550μH.
The power loss rating is 17W, ensuring efficient operation without excessive heat generation.
It is suitable for industrial and photovoltaic systems to reduce mains interference voltage.
