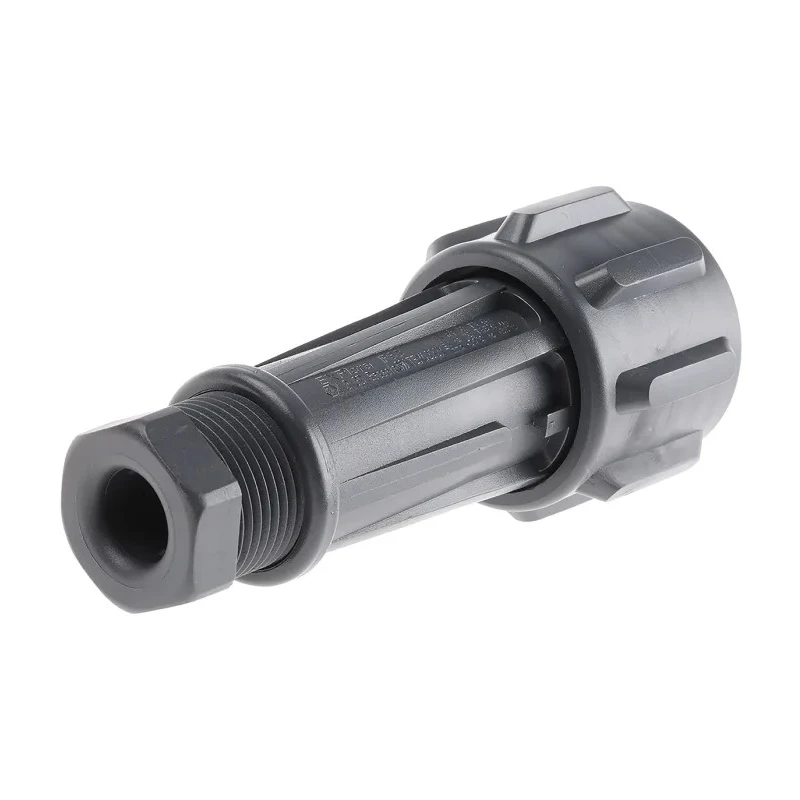

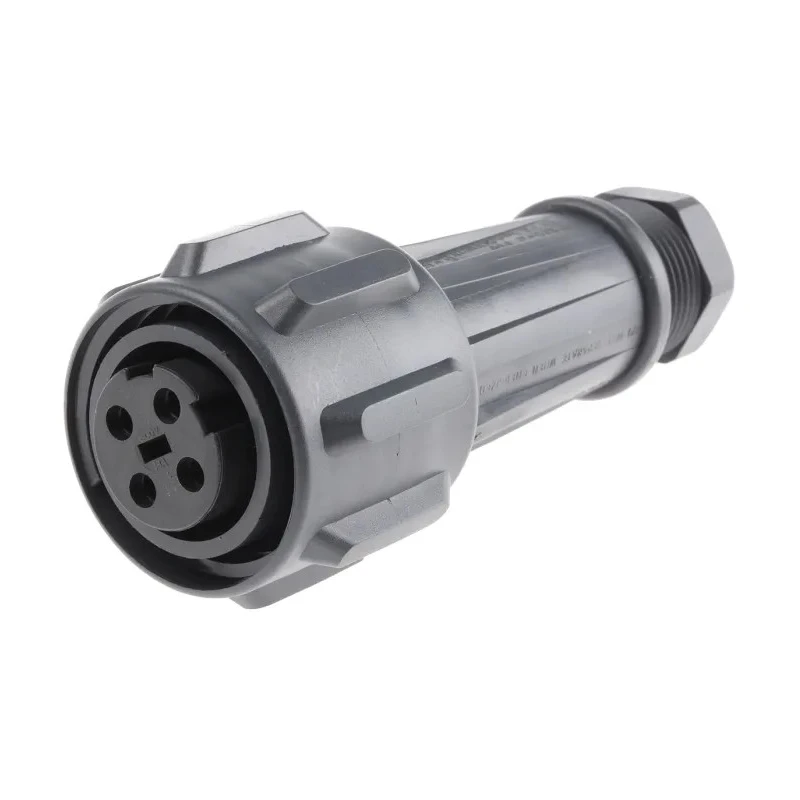

Bulgin Circular Connector 4 Contacts Cable Standard Socket Female IP68 EXPlora EXP Series EXP-0911/04/S
Specifications
| Country of Origin | Tunisia |
|---|---|
| Voltage | 600V |
| Brand | Bulgin |
| Orientation | Straight |
| Current | 18A |
| Model | EXP-0911/04/S |
| IP Rating | IP68 |
| Mount Type | Cable |
| Housing Material | Polymer |
| Contact Material | Brass |
| Series | EXPlora EXP |
| Termination Type | Screw |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -20°C |
| Pole Format | 4 |
| Contact Plating | Nickel |
| Number of Contacts | 4 |
| Contact Gender | Female |
| Shell Size | 50 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Socket |
| Coding | S |
Key Features
- The connector features a straight orientation with screw termination for secure assembly.
- It is constructed with a polymer housing and nickel-plated brass contacts for durability and corrosion resistance.
- Rated for operation between -20°C and 55°C, suitable for harsh environments.
- Its shell size is 50mm and it mates using a threaded locking mechanism for secure connections.
- Complies with EXPlora EXP series specifications designed for hazardous zones with dust and water ingress protection.
- Contact gender is female and the connector is solderless for easy field installation.
- Designed for electrical equipment, industrial automation, and hazardous area use cases such as motors, pumps, and control gear.
- Provides reliable quick connect/disconnect capabilities with positive locking keyways.
Product Description
Bulgin EXP-0911/04/S circular connector is a 4-contact female socket designed for cable mounting in industrial environments. This connector provides a robust connection with up to 18A current per contact and 600V voltage rating. Featuring a polymer housing and nickel-plated brass contacts, it offers excellent durability and corrosion resistance.
The connector has a standard shell size of 50mm and uses a threaded mating type with a straight orientation, providing secure and reliable connectivity. Its screw termination type ensures easy assembly without needing special tools. It is rated IP68 for water and dust ingress protection, making it well-suited for applications exposed to harsh environments.
This connector is part of the EXPlora EXP series, designed for hazardous zones classified as Zone 2 and Zone 22, addressing secondary electrical equipment requirements such as motors, pumps, lighting systems, and process control gear in factories and plants where explosive atmospheres may be present due to flammable gases, mists, vapors, or combustible dust.
The operating temperature range from -20°C to 55°C ensures reliable performance across various industrial settings. The positive locating keyways support quick connect and disconnect while maintaining a positive lock for safety and ease of use.
The connector supports current rating up to 18A per contact. It employs nickel-plated brass contacts for superior conductivity and corrosion resistance. Threaded mating type with straight orientation allows sturdy mechanical connection.
Housing is made from durable polymer material rated UL94V-0 suitable for hazardous environments. IP68 rated for waterproof and dustproof performance. Screw termination makes assembly straightforward without requiring specialized tools.
Designed for industrial automation, electrical equipment, and hazardous location operations. Manufactured in Tunisia with strict quality control.
This product is ideal for manufacturers of secondary electrical equipment, including motors, pumps, lighting equipment, and process control gear, particularly in industries requiring robust connectors that resist environmental challenges and hazardous conditions.
Explore more premium circular connectors and related industrial components at EnvMart for your demanding electrical and automation applications.
Explore more products in our Industrial Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bulgin EXP-0911/04/S connector has a maximum current rating of 18A per contact.
This connector is rated for a maximum voltage of 600V.
The connector has an IP68 rating, providing protection against dust and water ingress.
It features a polymer housing and nickel-plated brass contacts, ensuring durability and corrosion resistance.
The operating temperature range is from -20°C to 55°C.
The connector uses a screw termination type, allowing for easy assembly without the need for special tools.
The shell size of the Bulgin EXP-0911/04/S is 50mm.
It employs a threaded mating type for secure connections.
This model is designed for use in industrial automation, electrical equipment, and hazardous area applications such as motors and pumps.
The contact gender of the EXP-0911/04/S is female.
This connector is manufactured in Tunisia.
It belongs to the EXPlora EXP series, which is designed for hazardous zones.
