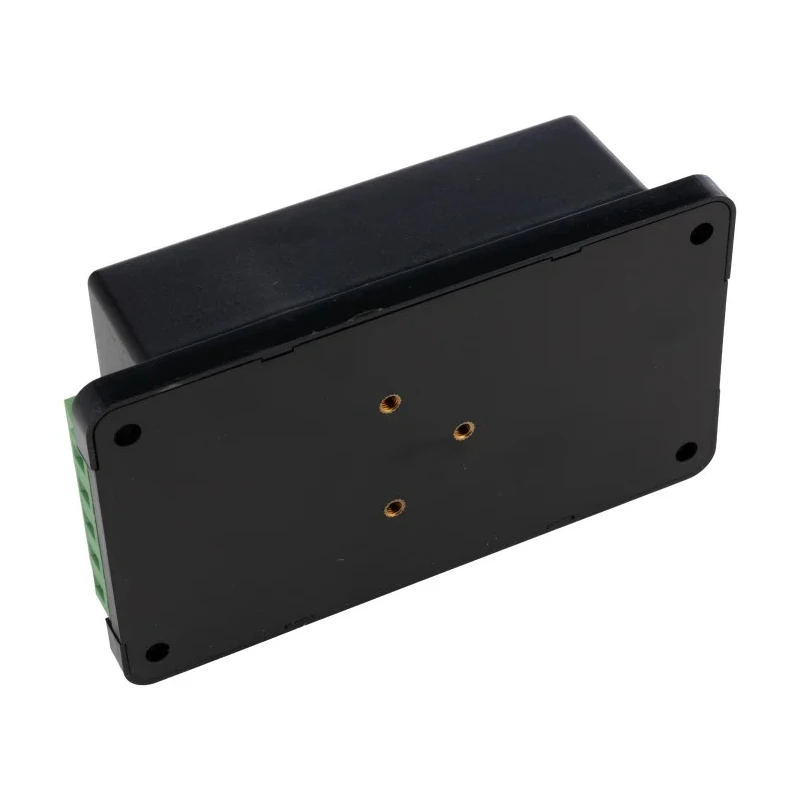

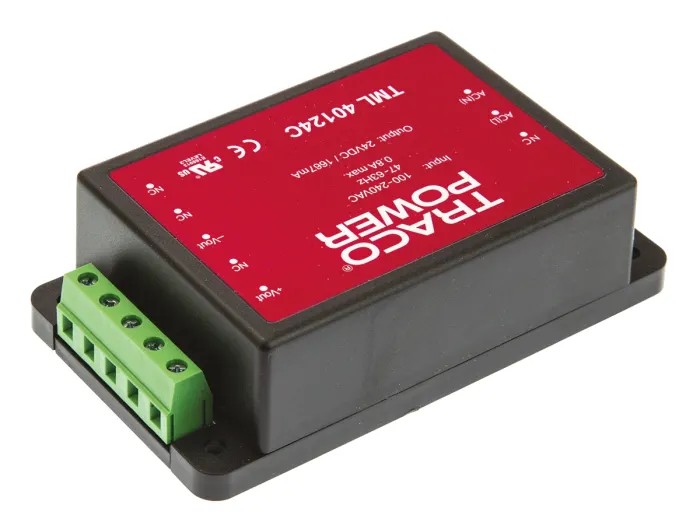

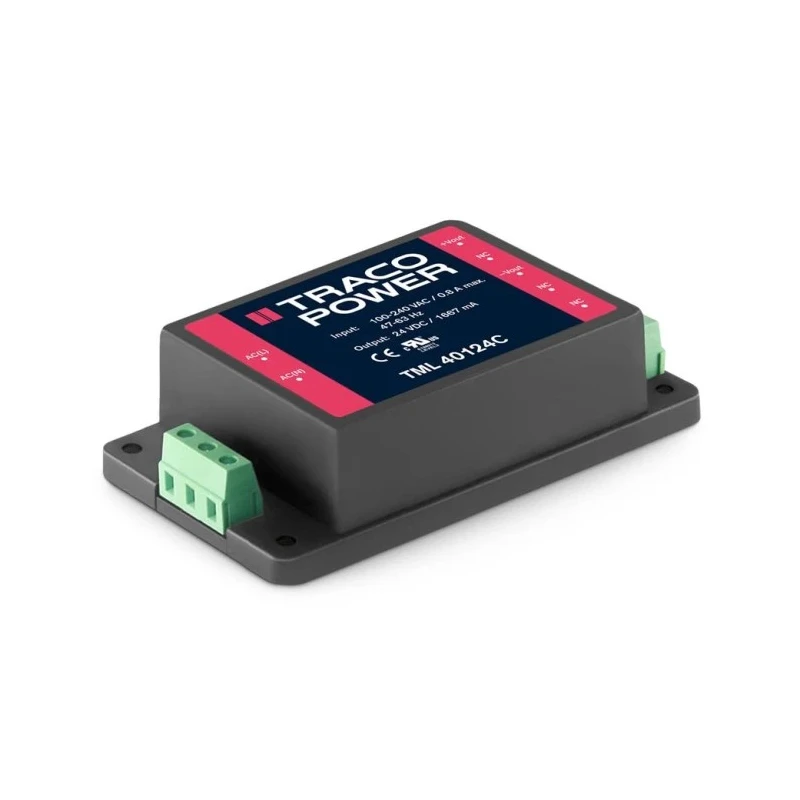

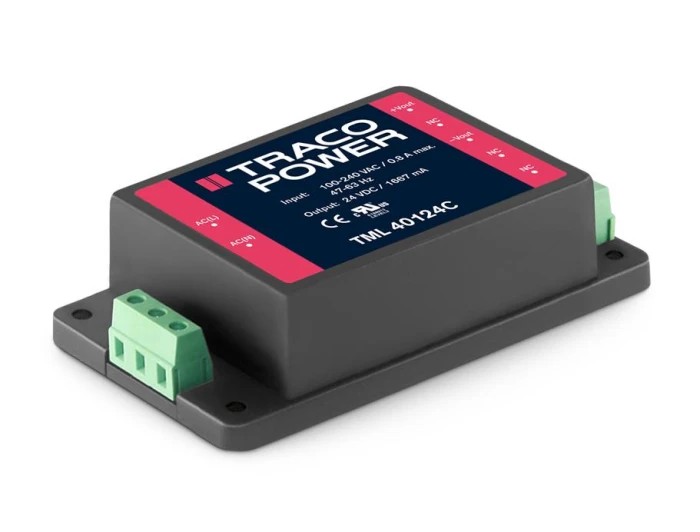

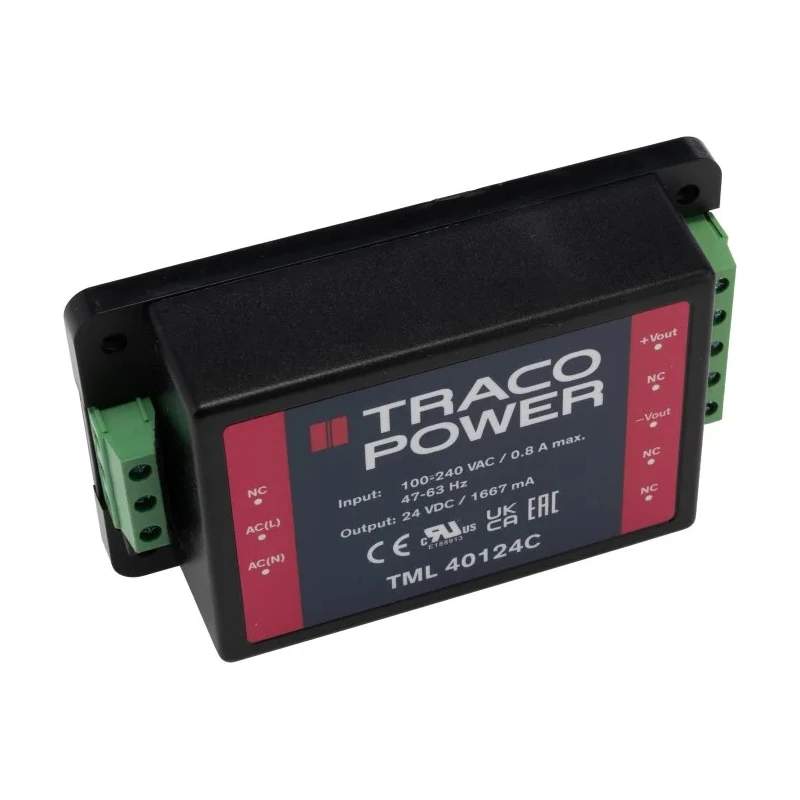

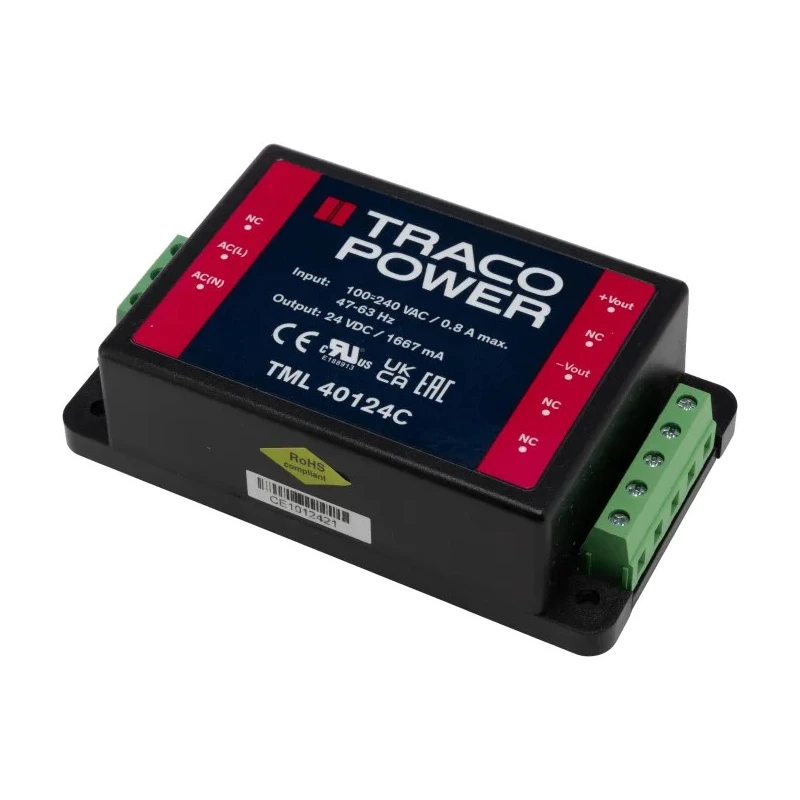

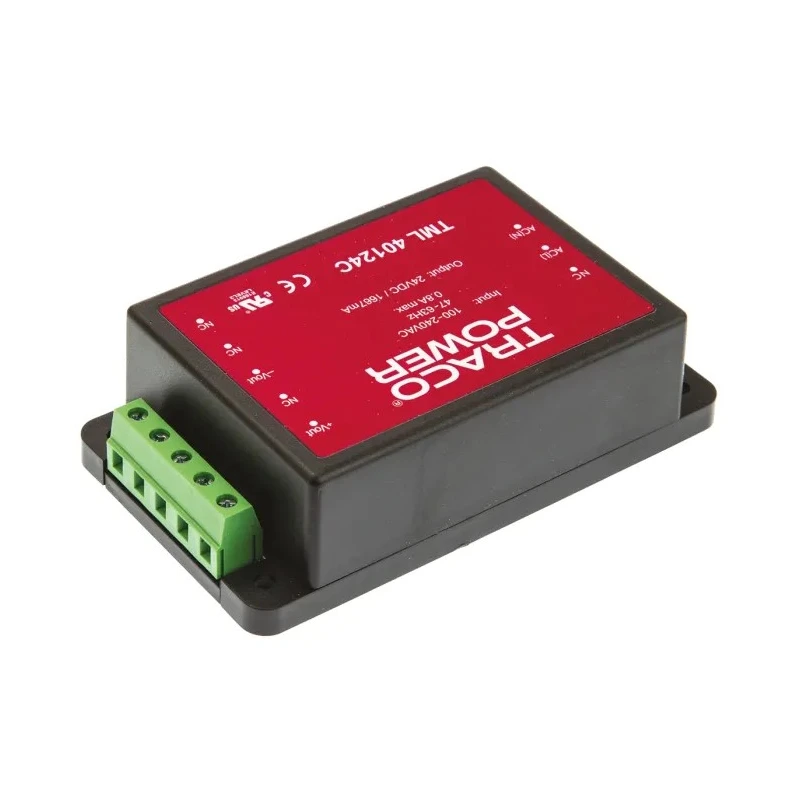

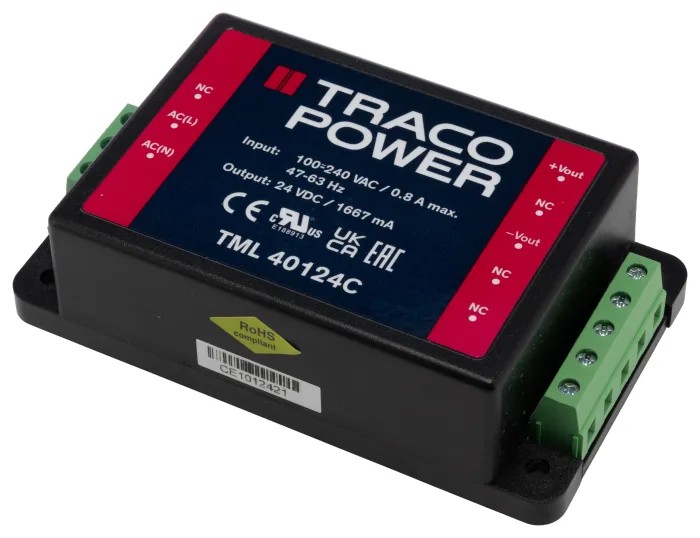

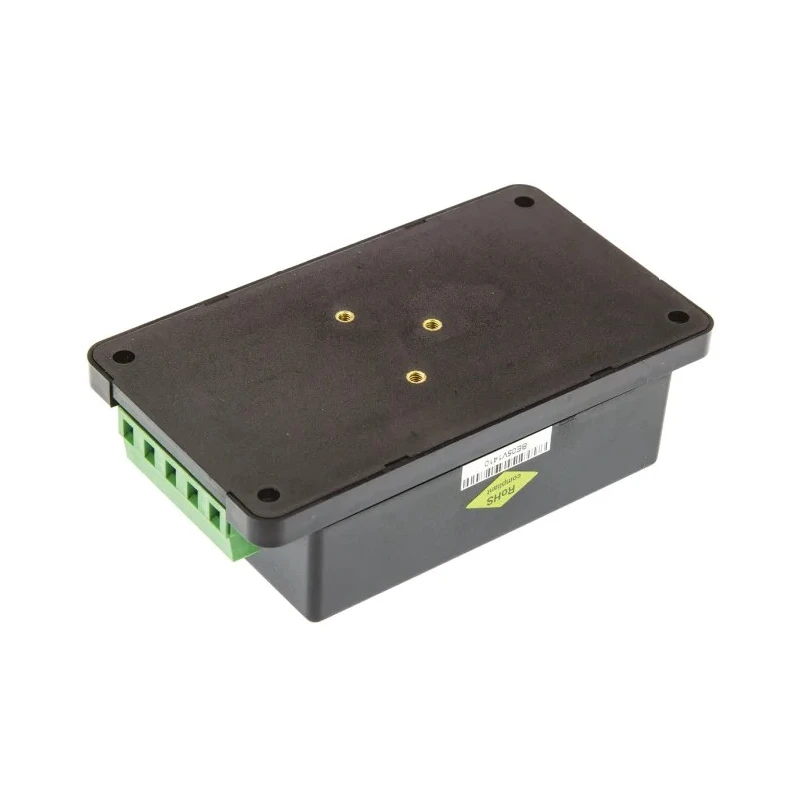

TRACOPOWER Switching Power Supply 24V DC 40W Chassis Mount TML 40124C

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER Switching Power Supply 24V DC 40W Chassis Mount TML 40124C

Name: TRACOPOWER Switching Power Supply 24V DC 40W Chassis Mount TML 40124C
Brand: TRACOPOWER
SKU: 217026



Category Switching Power Supplies Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	40W
Efficiency	83%
Length	112mm
Model	TML 40124C
Depth	32.5mm
Gross Weight	325g
Width	63.7mm
Mount Type	Chassis
Series	TML
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	24V dc
SMPS Output Current	1.67A
Minimum Input Voltage	90, 100V dc

Key Features

Operates efficiently at 83% for energy savings.
Input voltage range supports 90 to 264V AC and 100 to 375V DC.
Wide operating temperature from -40°C to +60°C for harsh environments.
Compact dimensions of 112mm x 63.7mm x 32.5mm enable easy installation.
Lightweight at 325g, reducing load on mounts.
Equipped with screw terminals for straightforward connectivity.
Single output design delivering 1.67A current.
Meets UL/cUL 60950-1, IEC/EN 60950-1 standards and is RoHS compliant.

Product Description

TRACOPOWER TML 40124C Switching Power Supply is a chassis-mounted unit engineered for reliable 24V DC output at 40W power. It accepts a wide AC input voltage range from 90V to 264V and DC input from 100V to 375V, making it compatible with varied power sources. The device operates efficiently at 83%, reducing energy waste during operation.

This power supply's robust design supports an operating temperature range from -40°C to +60°C, allowing it to withstand harsh industrial and commercial environments. Its compact size of 112mm length, 63.7mm width, and 32.5mm depth facilitates installation in constrained spaces. Weighing only 325g, it minimizes stress on mounting structures.

The TML 40124C features screw terminals for secure and easy electrical connections. It delivers a stable DC output current of 1.67A through a single output channel, ensuring consistent performance for sensitive electronics.

Compliance with standards including UL/cUL 60950-1, IEC/EN 60950-1, EN 55024, EN 55022, and Class II to IEC/EN 60536 guarantees industrial safety and electromagnetic compatibility. Additionally, it is RoHS certified, reflecting adherence to hazardous substance regulations.

This power supply is ideal for various industrial and commercial uses such as telecommunications, automotive systems, computing equipment, audio technology, and medical testing. Its tolerance for humid conditions up to 95% relative humidity (non-condensing) makes it suitable for environments with moisture presence.

Operates with high efficiency of 83% for energy savings. Wide AC/DC input voltage range for versatile power sources. Compact, lightweight chassis mount design with screw terminals. Industrial grade temperature range from -40°C to +60°C.

Certified to multiple safety and EMC standards. Stable 24V DC output at 1.67A current for reliable operation. Suitable for telecommunications, automotive, computing, audio, and medical applications. Humidity tolerance up to 95% RH prevents condensation damage.

This product is part of the TRACOPOWER TML Series known for reliable Switching Power Supplies. Explore more power supply solutions and industrial electronics at EnvMart for advanced performance and compliance.
