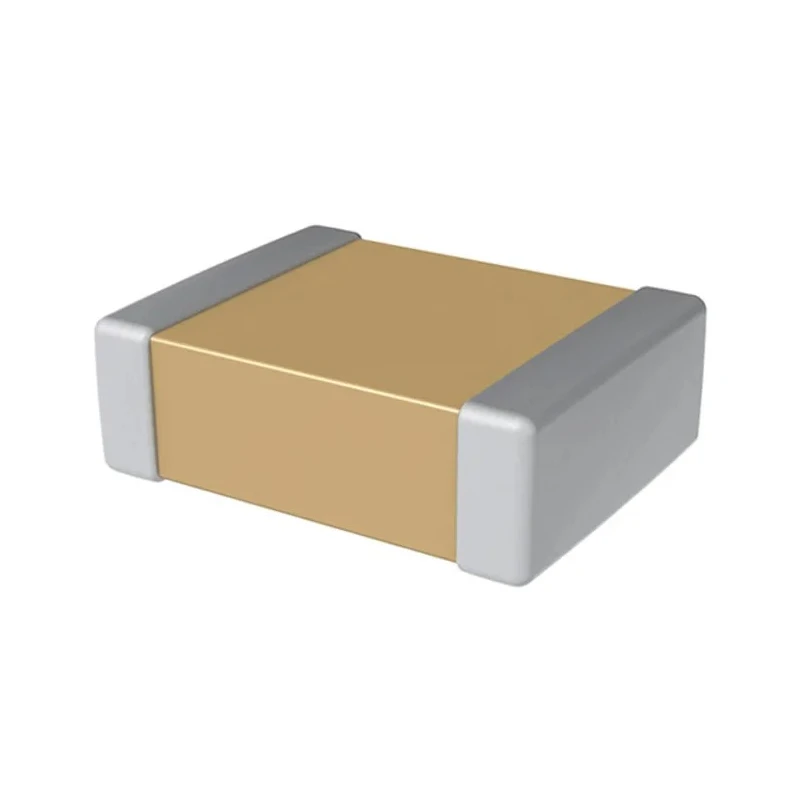

KEMET 220 nF Multilayer Ceramic Capacitor, 25V dc, ±5 %, Surface Mount, Stacked Construction, Series U2J C1210X224J3JACAUTO

KEMET C1210X224J3JACAUTO Multilayer Ceramic Capacitor is a high-quality surface mount component with a capacitance of 220 nF and rated voltage of 25V dc. Featuring a ±5 % tolerance and 1210 package size, this capacitor utilizes a stacked construction and U2J dielectric for reliable electrical characteristics and thermal stability suitable for demanding industrial and automotive applications.

This capacitor integrates KEMET's Flexible Termination (FT-CAP) system, employing a conductive silver epoxy layer to enhance mechanical flexibility and solder joint robustness without compromising electrical performance. The product meets the stringent AEC-Q200 automotive qualification, ensuring dependable operation in automotive systems and other harsh environments.

Key technical attributes include a low dissipation factor of less than 0.1%, low equivalent series resistance (ESR) and equivalent series inductance (ESL), and the ability to maintain over 99% of nominal capacitance at full rated voltage. It operates effectively across a wide temperature range from -55°C minimum to a maximum of 125°C, supporting applications in industrial controls, automotive electronics, telecommunications, and power systems.

The device's compact dimensions (3.3mm length, 2.6mm width, 1.25mm height) enable space-saving on printed circuit boards (PCBs), while the tape and reel packaging facilitates automated SMT assembly. It complies with industry standards including EIA 481, EIA 556, EIA 624, IPC-7351, and J-STD-020, assuring compatibility with standard manufacturing processes.

With low noise characteristics and high ripple current capacity, this capacitor is ideal for use in line frequency filtering, MHz range signal processing, and other precision electronic circuits requiring stable capacitance and reliability.

Automotive qualified to AEC-Q200 standard ensuring high reliability. Constructed with flexible termination for improved solderability and mechanical strength. Low dissipation factor under 0.1%, providing a low noise solution similar to C0G capacitors.

High thermal stability and ripple current capability suited for automotive and industrial applications. Compact dimensions: 3.3mm length, 2.6mm width, and 1.25mm height for space-efficient PCB layout. Wide operating temperature range from -55°C to 125°C allowing use in harsh environments.

Packaged in tape & reel format optimized for automated assembly processes. Stacked multilayer ceramic construction with U2J dielectric type for enhanced performance.

This multilayer ceramic capacitor is a preferred choice for industries including automotive manufacturing, electronic instrumentation, power supply filtering, telecommunications equipment, and other sectors requiring high-performance passive electronic components. EnvMart offers this component as part of a comprehensive range of Multilayer Ceramic Capacitors for advanced industrial applications.
