MEAN WELL Switching Power Supply 12V dc 150W 12.5A Chassis Mount SPV-150-12

Free Delivery in India | Lowest Global Shipping Charges

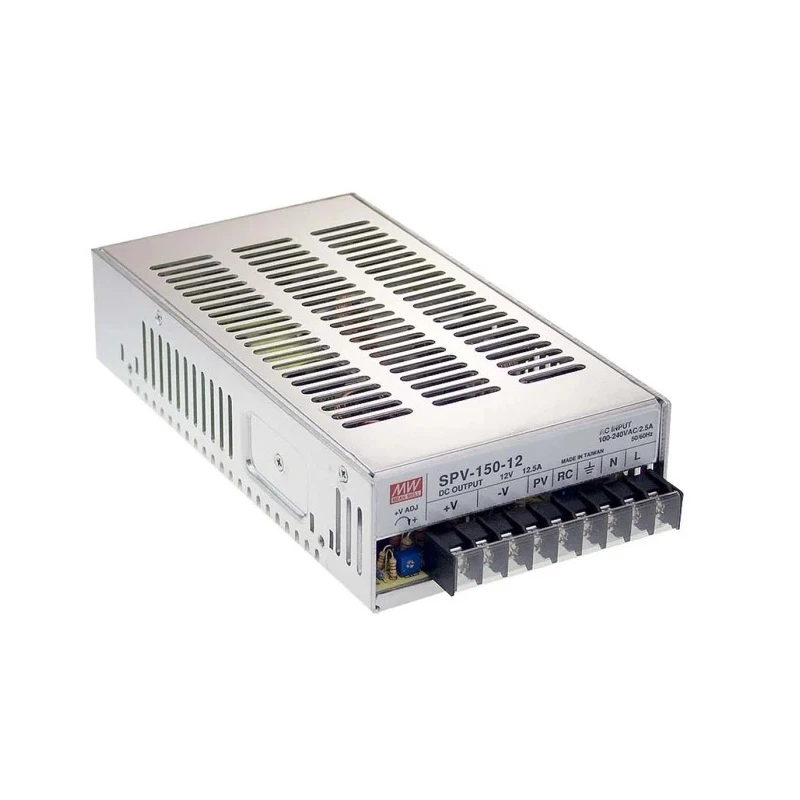

MEAN WELL Switching Power Supply 12V dc 150W 12.5A Chassis Mount SPV-150-12

Name: MEAN WELL Switching Power Supply 12V dc 150W 12.5A Chassis Mount SPV-150-12
Brand: MEAN WELL
SKU: 216657



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	Taiwan
Brand	MEAN WELL
Power	150W
Efficiency	82%
Length	215mm
Model	SPV-150-12
Depth	50mm
Gross Weight	1.1kg
Width	115mm
Mount Type	Chassis
Series	SPV-150
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protections	Short circuit, Overload, Over voltage, Over temperature
Maximum Output Voltage	12V dc
SMPS Output Current	12.5A
Minimum Input Voltage	88V ac

Key Features

Features programmable output voltage trim from 20 to 110 percent via external control signal.
Built-in active power factor correction ensuring power factor greater than 0.95.
High efficiency up to 82 percent and convection cooled for silent operation.
Provides multiple protections including short circuit, overload, over voltage, and over temperature safeguards.
Supports universal AC input ranging from 88V to 264V AC and maximum DC input voltage of 370V.
Complies with numerous standards including UL 62368-1, TUV, CSA, CCC, BSMI, and others.
Designed for use in industrial automation, LCD panel burn-in systems, IC testing, and mechanical & electrical industries.

Product Description

MEAN WELL SPV-150-12 is a high-performance switching power supply with a chassis mount design, providing a stable 12V DC output at 150W and 12.5A output current. This power supply belongs to the SPV-150 series, featuring programmable output voltage capability, which allows voltage adjustment from 20% to 110% of the nominal value by applying a 1 to 5.5V DC external control signal. This flexibility suits equipment requiring variable voltage levels.

The SPV-150-12 includes a built-in active Power Factor Correction (PFC) circuit delivering a power factor above 0.95 for higher energy efficiency. It operates at a fixed switching frequency of 100 kHz, ensuring stable output and low noise. The unit is convection cooled, negating the need for any fan and resulting in silent operation.

Safety features include comprehensive protections: short circuit, overload, over voltage, and over temperature, securing both the power supply and connected equipment. The supply accepts a universal AC input voltage from 88V to 264V AC and a maximum DC input voltage up to 370V DC.

With a compact form factor measuring 215mm length, 115mm width, and 50mm depth and a weight of 1.1 kg, the SPV-150-12 is easy to integrate into diverse machinery and control panels. It complies with global standards such as TUV BS EN/EN 62368-1, IEC 60950-1, CSA C22.2 No. 62368-1, CCCGB4943.1 among others, ensuring reliable and safe operation in industrial environments.

This switching power supply is commonly applied in industrial control systems, factory automation, IC testing equipment, LCD panel burn-in systems, and mechanical or electrical industries where variable output voltage and protections are required.

Programmable output voltage from 20 to 110 percent by external DC signal. Universal AC input: 88 - 264V AC, max DC input 370V. Active power factor correction with PF > 0.95 improves energy efficiency. Multiple protection features for enhanced reliability and safety.

Convection cooled for noiseless operation and longer lifespan. Compact chassis mount design for easy system integration. Certified to meet various international safety and quality standards. Explore the MEAN WELL product range for reliable industrial power solutions on EnvMart.
