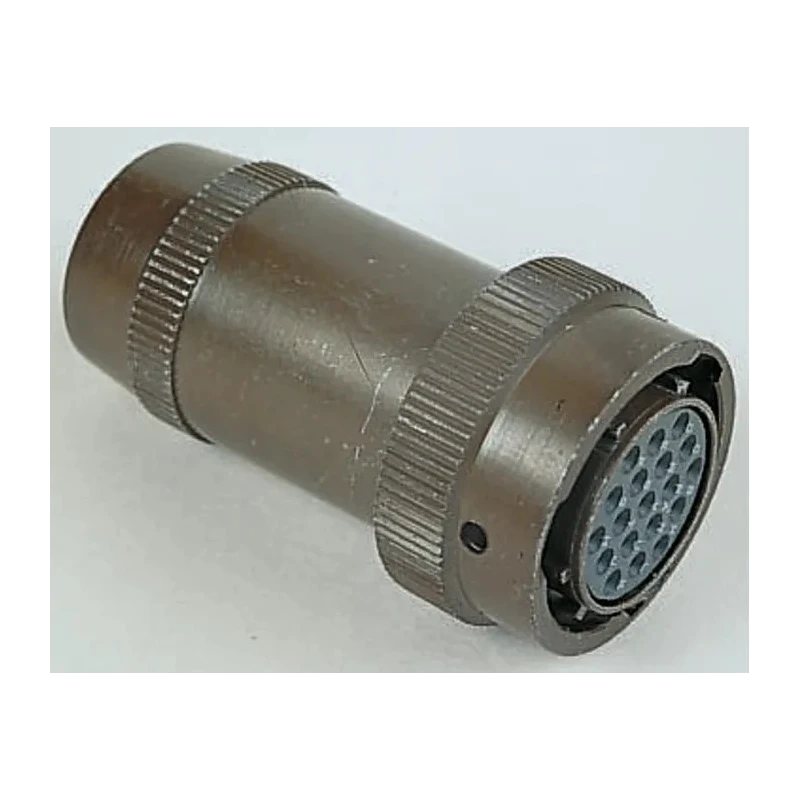

Souriau Sunbank by Eaton MIL Spec Circular Connector 19 Way Copper Alloy Straight Cable Connector Male Female 85106J1419S50
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 500V |
| Brand | Souriau Sunbank by Eaton |
| Orientation | Straight |
| Current | 7.5A |
| Model | 85106J1419S50 |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | 851 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | FBI |
| Contact Plating | Gold |
| Number of Contacts | 19 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 14 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Shell Plating | Olive Drab Cadmium |
| Meets applicable national and international standards and specifications | NFC 93422 |
Key Features
- The connector supports 19 contacts ensuring multiple circuit connections.
- Rated for 7.5A current with a maximum voltage of 500V suitable for industrial environments.
- Equipped with cable mounting type and straight orientation for secure installation.
- Contacts are made of copper alloy with gold plating for superior conductivity and corrosion resistance.
- Meets military standard MIL-DTL-26482 with IP65 rating ensuring dust and water protection.
- Operating temperature range from -55°C to 125°C for extreme conditions.
- Shell size 14 with olive drab cadmium plating offers robust mechanical protection.
- Termination is solder type compatible with 24 to 18 AWG cables.
Product Description
Souriau Sunbank by Eaton 85106J1419S50 Mil Spec Circular Connector is a high-quality 19 way cable connector featuring a copper alloy body with gold-plated female contacts and male connector pins, designed for demanding industrial and military applications. It supports a current rating of 7.5A and voltage rating up to 500V. The connector has a straight cable mount type and uses solder termination compatible with 24 to 18 AWG wire cross-sections.
This connector meets MIL-DTL-26482 military specifications, providing an IP65 ingress protection rating suitable for use in harsh environments requiring dust and water resistance. It features bayonet style mating for secure and quick connection. The shell size is 14, finished with olive drab cadmium plating that enhances corrosion resistance and mechanical robustness.
Designed initially for aeronautics and weapons industries, the 851 series is now widely utilized across measurement, instrumentation, transport, machine tools, and industrial automation sectors, providing reliability and compliance with standards such as NFC 93422 and FBI approvals.
The temperature performance ranges from a minimum of -55°C to a maximum of 125°C, making it suitable for extreme environmental conditions.
Manufactured in France with strict adherence to international standards, this connector is an essential component for demanding electrical and electronic systems requiring durable and standardized circular connectors.
The connector supports 19 contacts ensuring multiple circuit connections. Rated for 7.5A current with a maximum voltage of 500V suitable for industrial environments. Equipped with cable mounting type and straight orientation for secure installation.
Contacts are made of copper alloy with gold plating for superior conductivity and corrosion resistance. Meets military standard MIL-DTL-26482 with IP65 rating ensuring dust and water protection. Operating temperature range from -55°C to 125°C for extreme conditions.
Shell size 14 with olive drab cadmium plating offers robust mechanical protection. Termination is solder type compatible with 24 to 18 AWG cables. Mating type is bayonet for reliable locking and easy engagement. Manufactured in France adhering to international quality standards.
Ideal for use in industrial, aerospace, military, instrumentation, and automated manufacturing applications. Explore extensive Souriau Sunbank by Eaton product ranges available for robust and reliable circular connector solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7.5A and a maximum voltage of 500V, making it suitable for industrial environments.
It operates within a temperature range of -55°C to 125°C, allowing it to function in extreme conditions.
The connector supports 19 contacts, enabling multiple circuit connections.
It features a solder termination type, compatible with 24 to 18 AWG cables.
This connector has an IP65 rating, providing protection against dust and water ingress.
The contacts are made of copper alloy and are gold plated for enhanced conductivity and corrosion resistance.
The shell size of this connector is 14, which offers robust mechanical protection.
It uses a bayonet style mating for secure and quick connection.
Yes, it meets the military standard MIL-DTL-26482, ensuring reliability in demanding applications.
It is manufactured in France, adhering to international quality standards.
This model is suitable for industrial, aerospace, military, instrumentation, and automated manufacturing applications.
The shell is plated with olive drab cadmium, enhancing its corrosion resistance.
