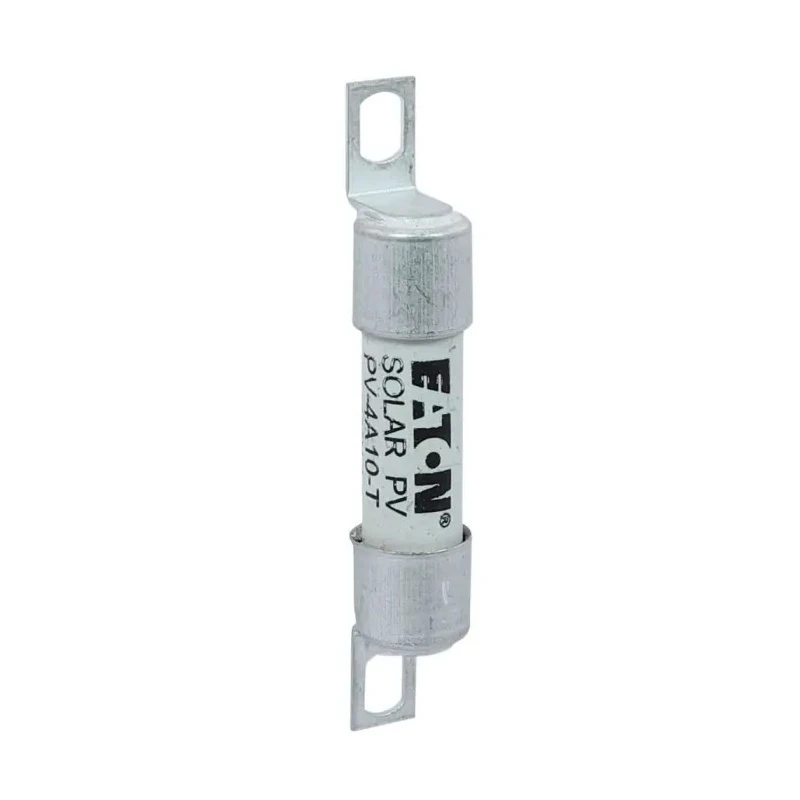

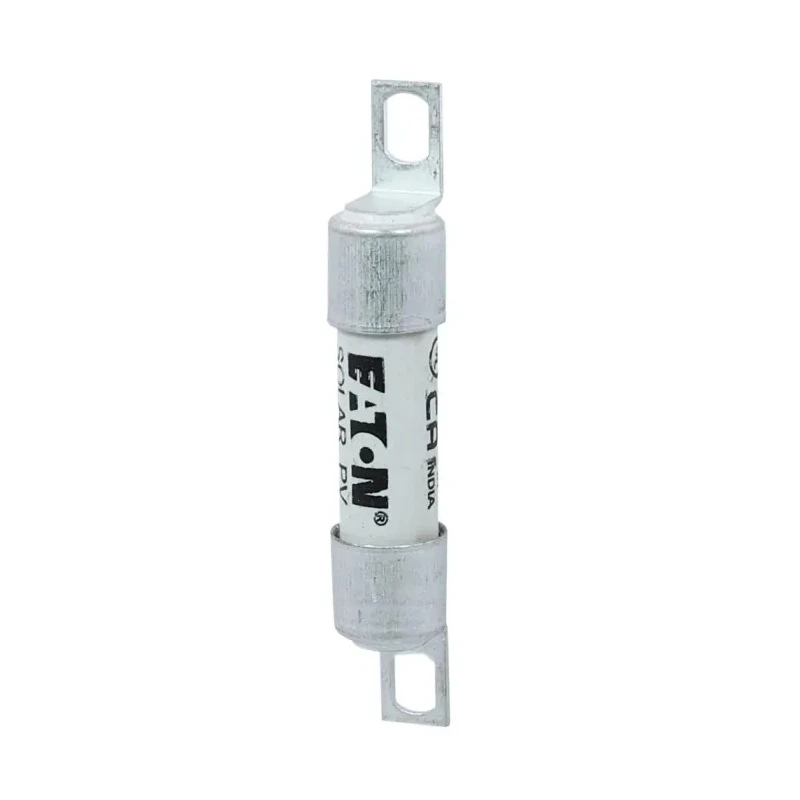

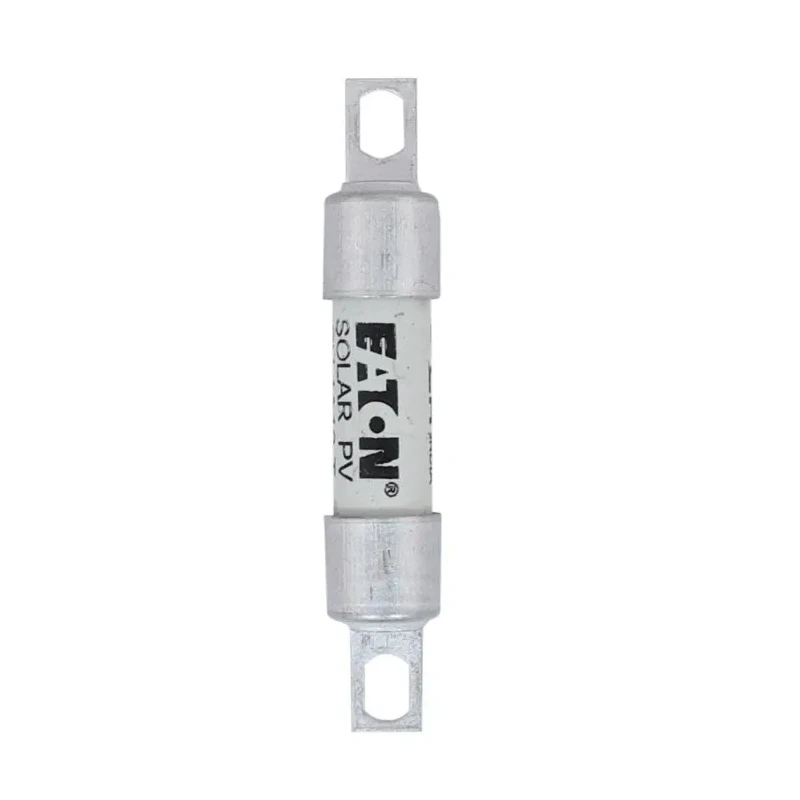

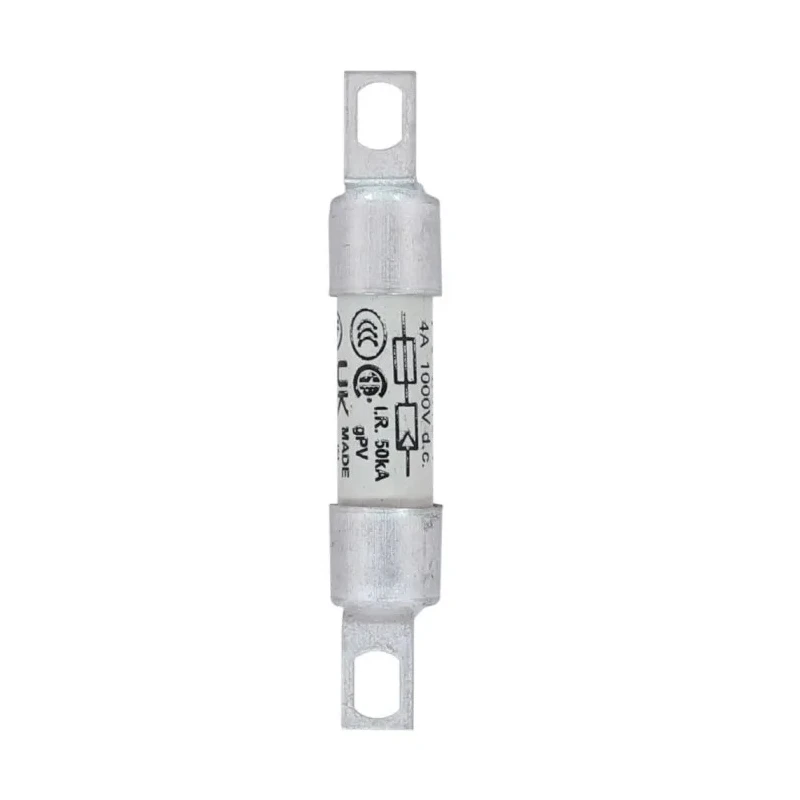

Eaton Bolt Fixing Photovoltaic Fuse 4A Current Rating 1000V dc Voltage 10 x 38 mm PV-4A10-T

Name: Eaton Bolt Fixing Photovoltaic Fuse 4A Current Rating 1000V dc Voltage 10 x 38 mm PV-4A10-T
Brand: Eaton
SKU: 216167



Category Fuse Brand Eaton Condition New

Specifications

Country of Origin	India
Voltage	1000V dc
Diameter	10.4mm
Brand	Eaton
Height	10.4mm
Length	38.5mm
Model	PV-4A10-T
Width	52mm
Overall Length	62mm
Current Rating	4A
Series	PV
Standards/Approvals	CSA, UL, CE, RoHS, CCC, IEC 60269-6
Fuse Size	10 x 38 mm
Fixing Centres	49.7 mm
Tag Width	6.6mm
Tag Orientation	Offset
Application Category	gPV

Key Features

Designed specifically for protecting and isolating photovoltaic strings.
Rated for 4A current and 1000V dc voltage in compliance with IEC 60269-6 standards.
Compact 10 x 38 mm fuse size with high rupture capacity ensures safety.
Bolt fixing design allows for secure installation and maintenance.
Compliant with multiple standards including CSA, UL, CE, RoHS, CCC.
Offset tag orientation and 6.6 mm tag width for precise fitting.
Durable construction suitable for photovoltaic applications.
Manufactured in India, ensuring quality and reliability.

Product Description

Eaton PV-4A10-T Bolt Fixing Photovoltaic Fuse is a high-quality fuse designed for the protection and isolation of photovoltaic strings in solar panel installations. It supports a current rating of 4A and a voltage rating of 1000V dc, making it suitable for interrupting low overcurrents associated with faulted photovoltaic string arrays.

The fuse complies with IEC 60269-6 and several international standards including CSA, UL, CE, RoHS, and CCC, assuring reliability and safety. Its compact 10 x 38 mm dimensions and bolt fixing mechanism allow for easy installation and secure fixing in photovoltaic systems.

The fuse features a high rupture capacity and offset tag orientation with a tag width of 6.6 mm, making it ideal for use in solar panel arrays where robust fault interruption is critical. With a fixing centre distance of 49.7 mm and overall length of 62 mm, it fits standard photovoltaic fuse holders effectively.

Manufactured in India, this Eaton fuse represents a durable and trusted solution for photovoltaic protection in industrial, commercial, and residential solar energy systems. Suitable for protecting and isolating photovoltaic strings in solar energy setups.

4A current rating and 1000V dc voltage for efficient fault interruption. Complies with IEC 60269-6 and other global safety standards. Bolt fixing design ensures secure and stable installation. High rupture capacity suitable for photovoltaic applications.

Compact size aids in easy integration within electrical panels. Offset tag orientation for accurate electrical connectivity. Manufactured with high-quality materials for durability and longevity.

This Eaton photovoltaic fuse is intended for use in electrical, automation, and solar power applications requiring reliable circuit protection. It is an essential component within electrical fuse assemblies designed for renewable energy systems.

Explore more from the Eaton Fuse range on EnvMart, your trusted industrial catalog for electrical protection devices.
