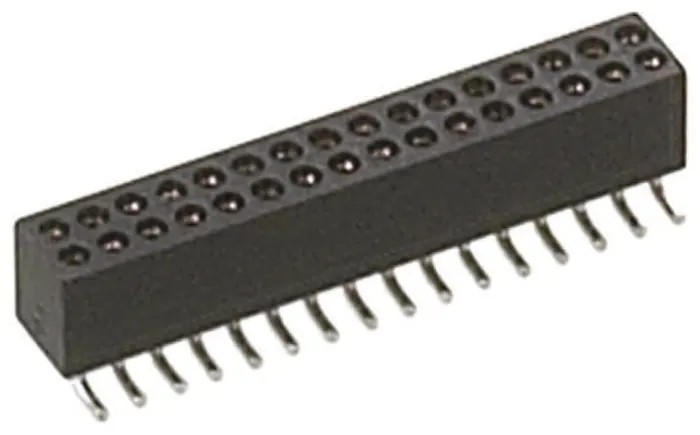

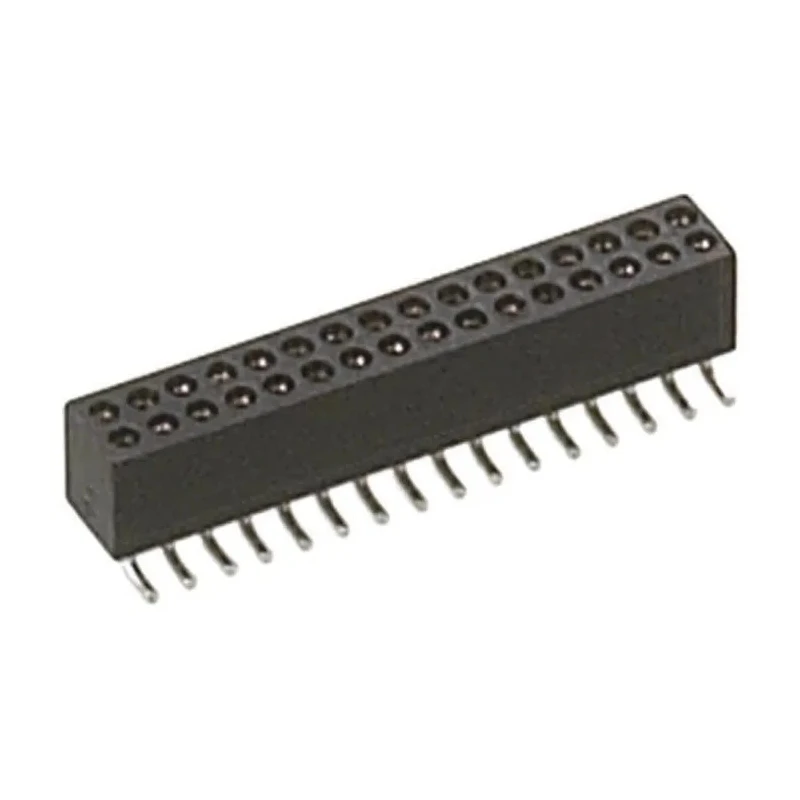

Preci-Dip 853 Series Right Angle Surface PCB Socket, 20-Contact, 2 Row, 1.27 mm Pitch, 12A, 150V 853-87-020-30-001101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 853 Series Right Angle Surface PCB Socket, 20-Contact, 2 Row, 1.27 mm Pitch, 12A, 150V 853-87-020-30-001101

Name: Preci-Dip 853 Series Right Angle Surface PCB Socket, 20-Contact, 2 Row, 1.27 mm Pitch, 12A, 150V 853-87-020-30-001101
Brand: Preci-Dip
SKU: 215499
Price: 8.1 USD
Availability: InStock



Category PCB Socket Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Right Angle
Current	12A
Mount Type	Surface
Housing Material	Black Glass Filled Polyester
Contact Material	Beryllium Copper Alloy
Series	853
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Board-to-Board
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold Flash
Number of Contacts	20
Contact Gender	Female
Connector System	Board-to-Board

Key Features

Supports 12A current and 150V voltage rating for reliable PCB connections.
Features female contacts made of beryllium copper alloy with gold flash plating for durability.
Constructed with a black glass filled polyester housing ensuring high mechanical strength.
Mount type is surface with a right angle orientation suitable for board-to-board connector systems.
Operates efficiently between -55°C and 125°C temperature range.
Complies with UL 94V-0 standards for flammability resistance.
Designed as part of the 853 series Swiss precision IC ultraminiature PCB socket connectors.
Includes 20-contact density arranged in 2 rows with a 1.27 mm pitch spacing.

Product Description

Preci-Dip 853-87-020-30-001101 is a right angle surface mount PCB socket connector designed for precision electronic applications. This 20-contact, 2-row socket offers a pitch of 1.27 mm and supports a current rating of 12A and voltage up to 150V, making it suitable for demanding industrial and electronic uses.

The housing is constructed from black glass filled polyester, providing excellent mechanical strength and stability. The female contacts are made from a beryllium copper alloy with a gold flash plating to ensure reliable conductivity and resistance to corrosion.

Its surface mount design with a right angle orientation facilitates easy board-to-board mating in compact circuit layouts. The socket supports a wide operating temperature range from -55°C to 125°C, enhancing versatility for various environments.

This product adheres to the UL 94V-0 flammability standard, ensuring safety in commercial and industrial facilities. The 853 series is known for Swiss precision, ultraminiature IC socket connectors that cater to high-density PCB requirements.

Supports 12A current and 150V voltage rating for reliable connections. 20 contacts arranged in 2 rows with 1.27 mm pitch spacing. Black glass filled polyester housing for durability. Beryllium copper alloy female contacts with gold flash plating.

Surface mount, right angle orientation for board-to-board use. Operates from -55°C to 125°C. Conforms to UL 94V-0 safety standard. Swiss precision 853 series ultraminiature socket connector.

This PCB socket connector is ideally suited for industrial electronics, electrical assemblies, manufacturing, and laboratory applications requiring precise, reliable board-to-board electrical connections. Explore more Preci-Dip connectors and PCB Socket solutions on EnvMart to meet your technical needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This PCB socket supports a maximum current rating of 12A and a voltage rating of 150V.

The contacts in this model are arranged with a pitch spacing of 1.27 mm.

This socket features 20 contacts arranged in 2 rows.

The female contacts are made from beryllium copper alloy with gold flash plating, while the housing is constructed from black glass filled polyester.

It operates efficiently within a temperature range of -55°C to 125°C.

This model supports surface mounting with a right angle orientation.

The termination type for this socket is solder.

This socket is part of the 853 series of ultraminiature PCB socket connectors.

This model complies with the UL 94V-0 flammability standard.

The connector system type for this socket is board-to-board.

This PCB socket is manufactured in Switzerland.

It is suitable for industrial electronics, electrical assemblies, manufacturing, and laboratory applications requiring precise, reliable board-to-board electrical connections.
