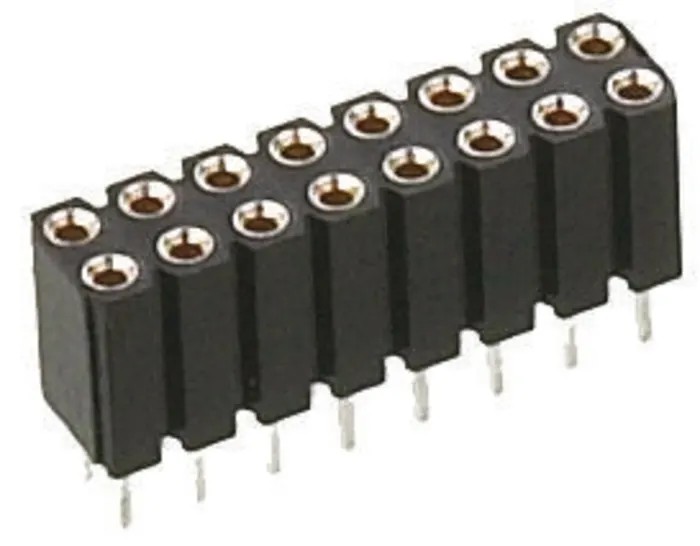

Preci-Dip 803 Series Straight PCB Socket, 16-Contact, 2 Row, 2.54 mm Pitch, Solder Termination 803-87-016-10-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 12A |
| Mount Type | PCB |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Beryllium Copper Alloy |
| Series | 803 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold Flash |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- The socket provides reliable board-to-board connection with a current rating of 12A.
- Constructed with black glass-filled polyester housing for durability.
- Contacts are made from beryllium copper alloy with gold flash plating for excellent conductivity and corrosion resistance.
- Operates safely between -55°C and 125°C temperature range.
- Compatible with straight PCB mounting and supports 150V voltage rating.
- Designed with female contact gender and straight orientation for easy integration.
- Swiss origin ensuring high manufacturing standards.
- Ideal for electronic connectors applications in industrial and manufacturing environments.
Product Description
Preci-Dip introduces the 803 Series Straight PCB Socket bearing the model number 803-87-016-10-001101, designed to facilitate secure and efficient board-to-board connections in electronic applications. This socket features 16 contacts arranged in 2 rows, spaced at a 2.54 mm pitch, optimized for solder termination on PCBs.
Manufactured with a robust black glass-filled polyester housing, it ensures resilience and protection against mechanical stresses. The contacts utilize a high-grade beryllium copper alloy, plated with a gold flash finish, providing exceptional electrical conductivity and resistance to corrosion, crucial for reliable signal transmission.
With a current capacity of 12A and a voltage rating of 150V, this socket is suited for various industrial and electronic power applications. It supports operation across a broad temperature range from -55°C to 125°C, accommodating harsh environments commonly encountered in manufacturing and industrial settings.
The socket’s female contact gender and straight orientation facilitate straightforward PCB mounting. Made in Switzerland, the product complies with quality standards expected in precision electronic connector systems.
Application domains include industrial electronics, manufacturing, power modules, telecommunications, and other settings demanding stable and durable PCB connectivity solutions. The socket offers a secure, high-performance board-to-board connection solution.
Constructed with durable materials suitable for challenging environments. Contact plating ensures longevity and low electrical resistance. Wide operating temperature and voltage specifications enhance versatility. Designed specifically for solder termination and straight PCB mounting.
Suitable for a broad range of industrial, electronic, and manufacturing uses. Produced under Swiss quality standards assuring product reliability.
EnvMart provides this Preci-Dip 803 Series PCB Socket as part of its extensive electronics components range, supporting professional and industrial market needs for high quality and precision connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This socket has a current rating of 12A, making it suitable for various power applications.
The voltage rating for this PCB socket is 150V, allowing it to handle a range of electronic applications safely.
It operates safely within a temperature range of -55°C to 125°C, accommodating harsh environments.
The contacts are made from beryllium copper alloy and feature gold flash plating for excellent conductivity and corrosion resistance.
This model features 16 contacts arranged in 2 rows, optimized for board-to-board connections.
The contacts are spaced at a pitch of 2.54 mm, which is standard for many PCB applications.
It utilizes solder termination, which is common for securing connections on printed circuit boards.
This socket has a straight orientation, facilitating easy integration into PCB layouts.
It is manufactured in Switzerland, ensuring adherence to high manufacturing standards.
It is designed for use in industrial electronics, manufacturing, power modules, and telecommunications, among others.
The housing is constructed from black glass-filled polyester, providing resilience against mechanical stresses.
This socket features female contact gender, which is standard for board-to-board connections.
