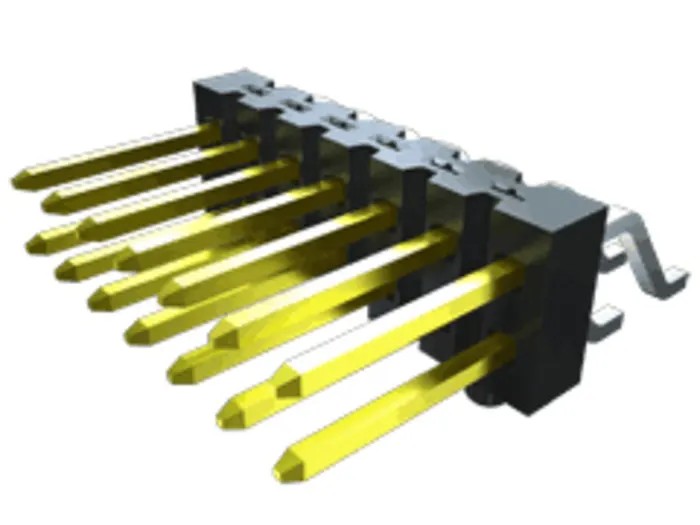

Samtec TSM Series Straight Surface Pin Header 14 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-107-01-L-DV-A
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 4A |
| Model | TSM-107-01-L-DV-A |
| Mount Type | Surface |
| Special Features | Designed specifically for surface mount applications with many options to facilitate processing |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination | Surface mount, mixed technology |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Contact System | .025" (0.635 mm) square post |
Key Features
- The pin header features a 2-row configuration with unshrouded, male contacts.
- Constructed with a liquid crystal polymer housing for durability and stability.
- Contacts made of phosphor bronze with gold plating ensure high conductivity and corrosion resistance.
- Capable of handling a current of 4A and operating voltage up to 475V.
- Surface mount termination designed for reliable solder connections on PCB.
- Operates in temperatures ranging from -55°C to 125°C, suitable for harsh environments.
- Offers .025" (0.635 mm) square post contact system for extended life and high mating cycles.
- Ideal for electronic, industrial, automotive, and communication equipment manufacturing.
Product Description
Samtec TSM-107-01-L-DV-A is a Straight Surface Mount Pin Header from the TSM Series, featuring 14 male contacts arranged in two rows with a 2.54 mm pitch. It is designed with a high-quality liquid crystal polymer housing that provides excellent durability and stability for PCB mounting.
The pin contacts are crafted from phosphor bronze and plated with gold to ensure optimal electrical performance and corrosion resistance. This connector supports a current rating of 4A and can withstand voltages up to 475V, making it suitable for demanding power connections.
Thermal performance is robust, with a minimum operating temperature of -55°C and maximum of 125°C, allowing reliable use in industrial and commercial electronics exposed to varying temperature conditions.
The unshrouded, straight orientation design facilitates easy integration in board-to-board and wire-to-board connector systems, with surface mount termination providing secure solder joints.
The contact system utilizes a .025" (0.635 mm) square post technology, categorized as an Extended Life Product™ by Samtec, capable of enduring extensive mating cycles (250 to 2,500) and passing 10-year Mixed Flowing Gas (MFG) testing, ensuring longevity in electronic assemblies.
This pin header is widely employed in applications such as industrial automation, telecommunications, computing hardware, and electronic instrumentation. The pin header features a 2-row configuration with unshrouded, male contacts.
Constructed with a liquid crystal polymer housing for durability and stability. Contacts made of phosphor bronze with gold plating ensure high conductivity and corrosion resistance. Capable of handling a current of 4A and operating voltage up to 475V.
Surface mount termination designed for reliable solder connections on PCB. Operates in temperatures ranging from -55°C to 125°C, suitable for harsh environments. Offers .025" (0.635 mm) square post contact system for extended life and high mating cycles.
Ideal for electronic, industrial, automotive, and communication equipment manufacturing. Browse the Electronics & Electricals category on EnvMart for more high-quality PCB connector solutions and related components from top brands like Samtec.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is capable of handling a current of 4A.
The maximum operating voltage for this pin header is 475V.
The contacts have a pitch size of 2.54 mm.
The housing is made of liquid crystal polymer, while the contacts are made of phosphor bronze with gold plating.
It operates in temperatures ranging from -55°C to 125°C.
This pin header features 14 male contacts.
It uses surface mount termination designed for reliable solder connections on PCB.
The contacts are arranged in a straight orientation.
It is suitable for applications in electronic, industrial, automotive, and communication equipment manufacturing.
It features a .025" (0.635 mm) square post contact system, categorized as an Extended Life Product™.
This model is designed with unshrouded male contacts.
It supports board-to-board and wire-to-board connector systems.
