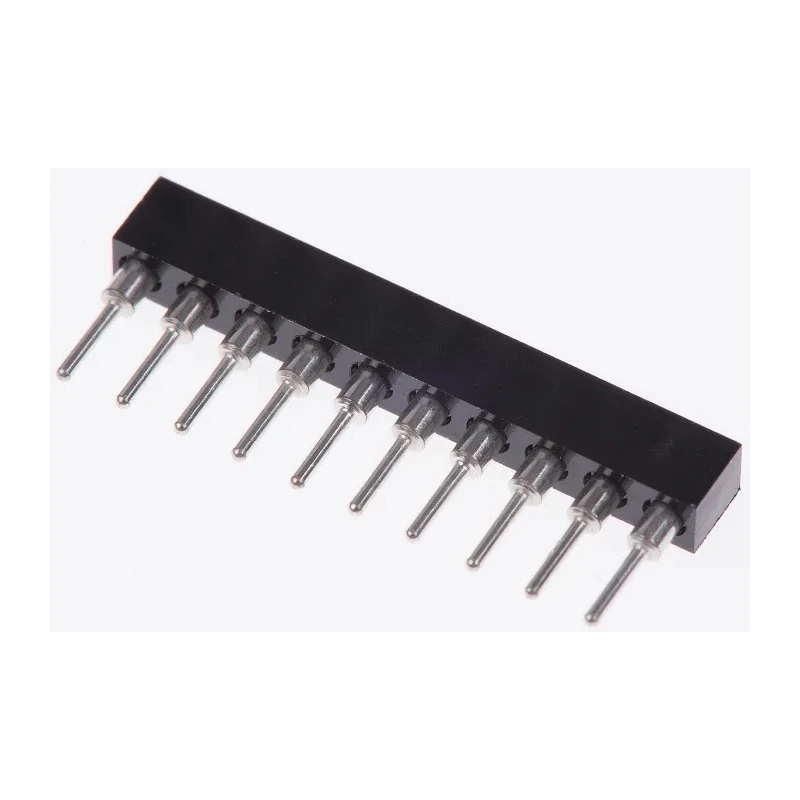

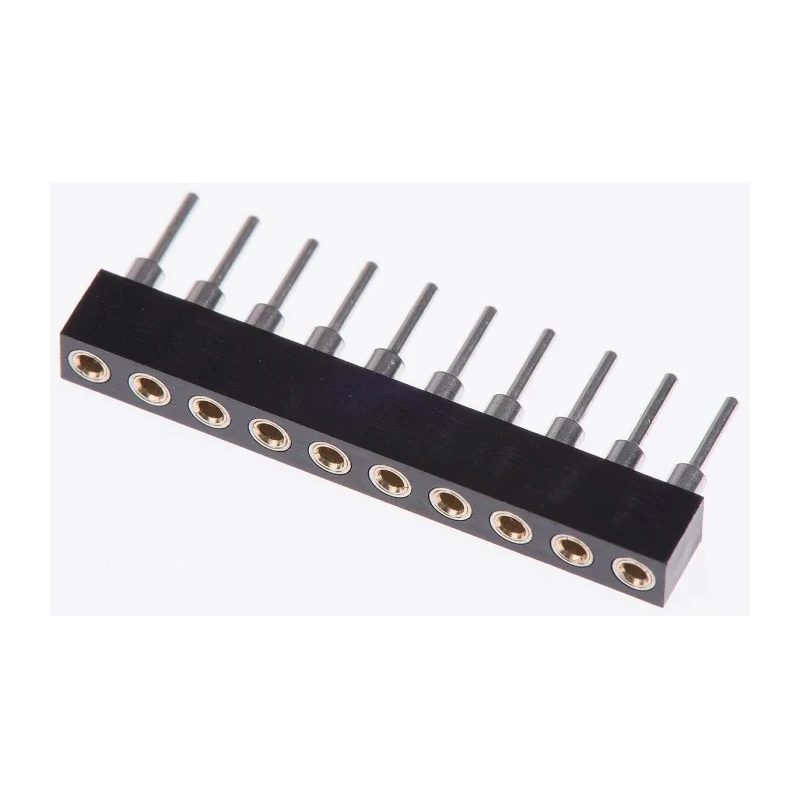

Preci-Dip 10 Way Straight Through Hole 2 mm Pitch SIL Socket 150V dc, Solder, 3A 831-87-010-10-001101

Preci-Dip 831-87-010-10-001101 is a 10 Way SIL (Single In-Line) Socket designed for electronic PCB connectors with a 2 mm pitch and 150V dc voltage rating. This model features straight orientation and through hole mount type with solder terminations, ideal for reliable mechanical and electrical connections on printed circuit boards.

The socket contacts are made from brass and beryllium copper alloy, plated with gold and tin to ensure excellent conductivity and corrosion resistance. The fibreglass reinforced liquid crystal polymer housing provides durability and stability even under demanding industrial environments.

This SIL socket supports a continuous current rating of 3A and has operating temperature limits from -55°C to 125°C, making it suitable for various industrial, electronic, and manufacturing applications where precise and dependable connections are required.

The compact design with 20 mm length, 2.2 mm width, and 4.2 mm depth permits efficient space utilization on PCBs. It is suitable for mating pins with diameter ranging from 0.4 mm to 0.66 mm or 0.5 mm square pins.

Manufactured in Switzerland, the product does not specify any formal standards or approval certifications but adheres to quality manufacturing practices. Constructed with brass and beryllium copper alloy contacts for reliable conductivity.

Gold and tin plating provides corrosion resistance and longevity. Through hole solder mount suitable for secure PCB assembly. Rated for 150V dc voltage and 3A current capacity. Operates from -55°C to 125°C temperature range.

Fibreglass reinforced LCP housing enhances strength and stability. Dimensions optimized for compact PCB layouts. 10 contacts with 2 mm pitch for precise pin alignment. Swiss manufacture ensures high product quality. No specific standards or approvals listed.

This Preci-Dip SIL Socket is widely applicable in electronics manufacturing, industrial control systems, and laboratory equipment assembly. It supports efficient connection solutions for integrated circuit and electronic component interfaces.
