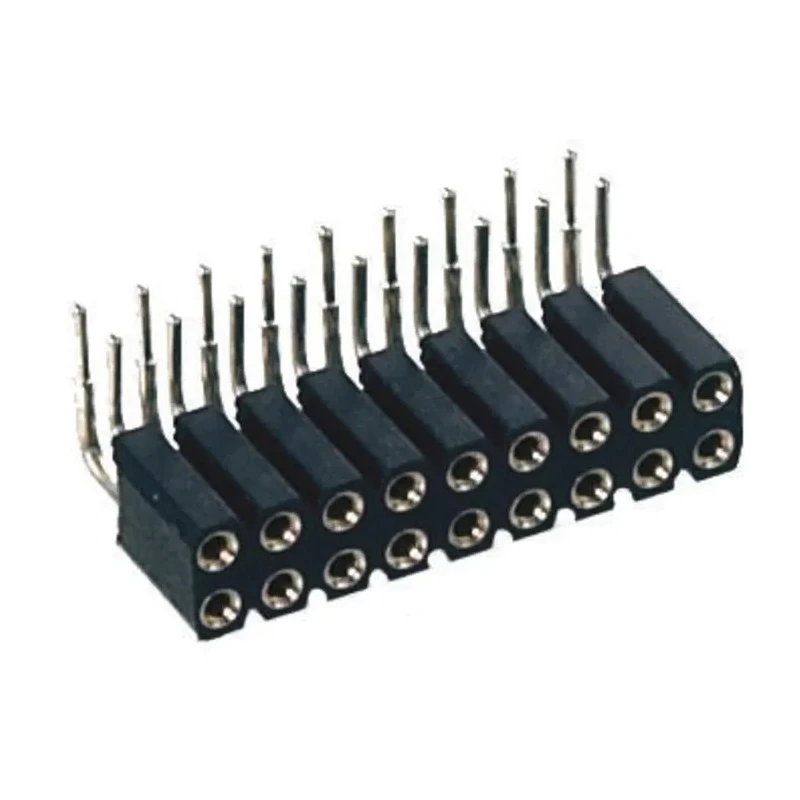

Preci-Dip 803 Series Right Angle PCB Socket, 22-Contact, 2 Row, 2.54 mm Pitch Solder 803-87-022-20-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | PCB |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Beryllium Copper Alloy |
| Series | 803 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold Flash |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with black glass filled polyester housing for durability.
- Contacts made from beryllium copper alloy with gold flash plating to ensure reliable conductivity.
- Rated for a current capacity of 12A and voltage of 150V for robust electrical performance.
- Designed with a right angle orientation suited for PCB mounting applications.
- Operates reliably in temperature ranges from -55°C to 125°C.
- Termination type is solder, supporting secure connections on printed circuit boards.
- Connector system designed for board-to-board connections enhancing flexibility in electronic assemblies.
- Manufactured in Switzerland, ensuring precision quality standards.
Product Description
Preci-Dip 803-87-022-20-001101 is a high-quality right angle PCB socket designed for industrial and electronic manufacturing applications requiring reliable board-to-board connections. This socket features 22 female contacts arranged in 2 rows with a standard 2.54 mm pitch, ideal for precision electronic assemblies.
The housing is constructed from durable black glass filled polyester, providing longevity and resistance in demanding environments. The contact material is a beryllium copper alloy, plated with a gold flash finish to ensure excellent electrical conductivity and corrosion resistance.
With a current rating of 12A and operating voltage up to 150V, the socket suits power and signal interface applications. It supports solder termination type mounting, designed specifically for PCB installations where right angle orientation is needed to optimize space and connector alignment.
The socket performs reliably across a wide temperature range from -55°C to 125°C, making it suitable for use in industrial, manufacturing, and electronic lab settings. The series 803 provides both through-hole and SMD mounting options, with right angle types using cranked pins to facilitate easy soldering and board assembly.
Durable black glass filled polyester housing enhances mechanical strength. Beryllium copper alloy contacts with gold flash plating for superior electrical performance. 12A current and 150V voltage rating ensures robust power handling.
Right angle solder termination for efficient PCB mounting. Reliable operation in extreme temperature ranges of -55°C to 125°C. Designed for board-to-board connector systems with 22 contacts in 2 rows. Manufactured in Switzerland for high-quality standards.
Series 803 supports cranked pin right angle SMD mounting configuration.
This PCB socket is ideal for electronic component manufacturers, assembly lines, and laboratories requiring standardized, high-quality, and reliable connectors. It integrates seamlessly in industrial electronics, power systems, and commercial applications, providing efficient and durable performance.
Explore a wide range of PCB Sockets and connectors on EnvMart to find compatible products for your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 12A and can operate at a voltage of 150V, making it suitable for various power and signal interface applications.
The housing is made from black glass filled polyester, while the contacts are constructed from beryllium copper alloy and plated with gold flash for enhanced conductivity.
It operates reliably within a temperature range of -55°C to 125°C, suitable for demanding industrial and electronic environments.
The socket features 22 female contacts arranged in 2 rows, with a standard pitch of 2.54 mm.
It utilizes a solder termination type, which supports secure connections on printed circuit boards.
This model is designed with a right angle orientation, which is ideal for PCB mounting applications where space optimization is necessary.
It is manufactured in Switzerland, ensuring adherence to high-quality standards.
It is designed for board-to-board connections, enhancing flexibility in electronic assemblies.
The gold flash plating on the contacts ensures reliable conductivity and corrosion resistance, which is crucial for maintaining electrical performance.
Yes, it is suitable for use in industrial, manufacturing, and electronic lab settings due to its robust specifications and reliable performance.
This socket is part of the Preci-Dip 803 series, which supports various mounting configurations including right angle types with cranked pins.
It is ideal for electronic component manufacturers, assembly lines, and applications requiring standardized, high-quality connectors.
