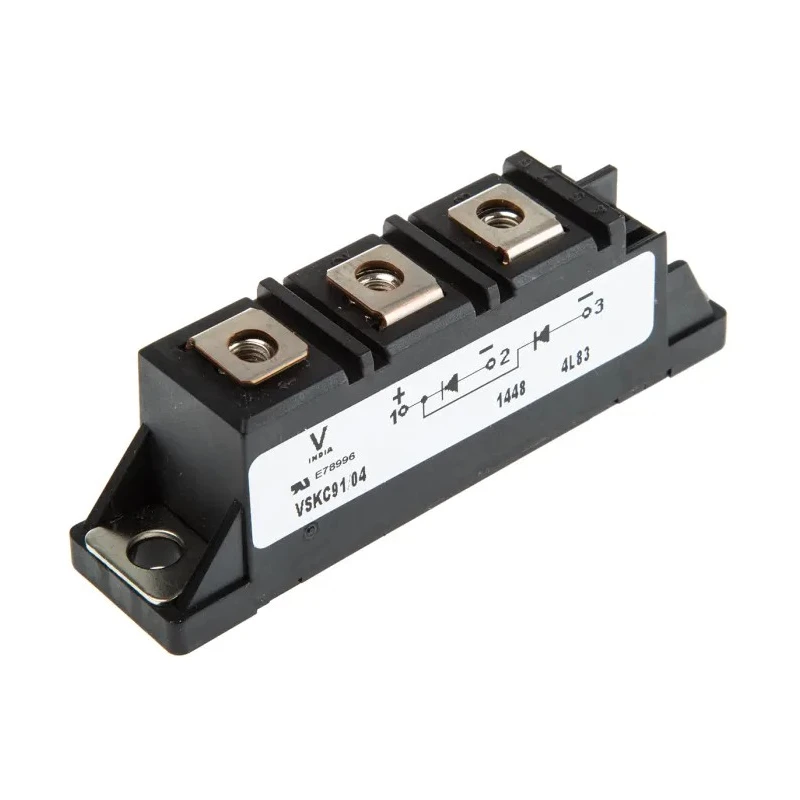

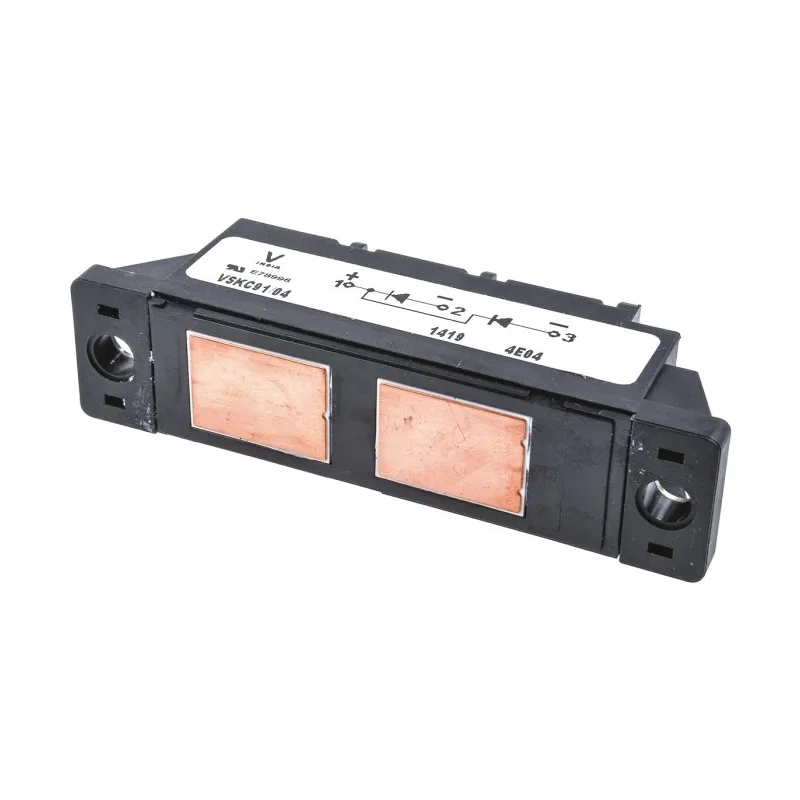

Vishay 400 V 100 A Standard Recovery Diode Common Cathode Panel Mount TO-240 VS-VSKC91/04
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 35mm |
| Length | 92mm |
| Model | VS-VSKC91/04 |
| Width | 22.6mm |
| Mount Type | Panel |
| Series | VS-VSKC91 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-240 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 100A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.1kA |
| Maximum Forward Voltage Vf | 1.55V |
Key Features
- Designed for reliable operation up to 150°C maximum temperature.
- Configured as a common cathode diode with 3 pins in a TO-240 package.
- Supports a peak non-repetitive forward surge current of 2.1 kA.
- Features a maximum forward voltage drop of 1.55 V for efficient power handling.
- Operating temperature range is -40°C to 150°C ensuring industrial robustness.
- Panel mountable to fit industrial applications and assemblies.
Product Description
The Vishay VS-VSKC91/04 is a robust, industry-standard recovery diode designed for demanding electronic and power applications. With a maximum repetitive peak reverse voltage rating of 400 V and continuous forward current capability of 100 A, it is suitable for use in diverse industrial environments.
This diode is configured as a common cathode device with a 3-pin TO-240 panel mount package, facilitating straightforward integration into power assemblies and electronic chassis.
It features a standard recovery rectifier type construction, with a peak non-repetitive forward surge capability of 2.1 kA, making it ideal for handling transient overloads without permanent damage.
The maximum forward voltage drop of only 1.55 V ensures efficient conduction and minimized power loss during operations. Its operating temperature range from -40°C to 150°C is suited for industrial, commercial, and laboratory equipment demanding thermal resilience.
Dimensions for the TO-240 package are 92 mm length, 35 mm height, and 22.6 mm width, allowing compatibility with various panel mount setups and electronic designs requiring compact and durable components.
High continuous forward current rating of 100 A for heavy-duty applications. Effective at blocking up to 400 V of peak reverse voltage. Standard recovery diode technology for controlled switching and power rectification.
Robust panel mounting package TO-240 for industrial integration. Wide operating temperature range suitable for harsh environments. Efficient low forward voltage drop of 1.55 V to reduce power dissipation. Peak non-repetitive surge current capacity up to 2.1 kA for transient load handling.
This Vishay diode is suited for use in industrial power supplies, motor drives, power rectifiers, and other semiconductor applications requiring reliable high-current diode solutions.
Explore more electronic components and semiconductor devices on EnvMart for enhanced product selection and technical support.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage for this diode is 400 V.
This model has a continuous forward current rating of 100 A.
It supports a peak non-repetitive forward surge current of 2.1 kA.
The maximum forward voltage drop is 1.55 V.
The operating temperature range is from -40°C to 150°C.
It is designed for panel mounting, facilitating integration into various setups.
The dimensions of the TO-240 package are 92 mm in length, 35 mm in height, and 22.6 mm in width.
This diode has a total of 3 pins.
It is configured as a common cathode diode.
This model utilizes standard recovery rectifier type construction.
It is suitable for industrial power supplies, motor drives, and power rectifiers, among other semiconductor applications.
The peak reverse current is rated at 10 mA.
