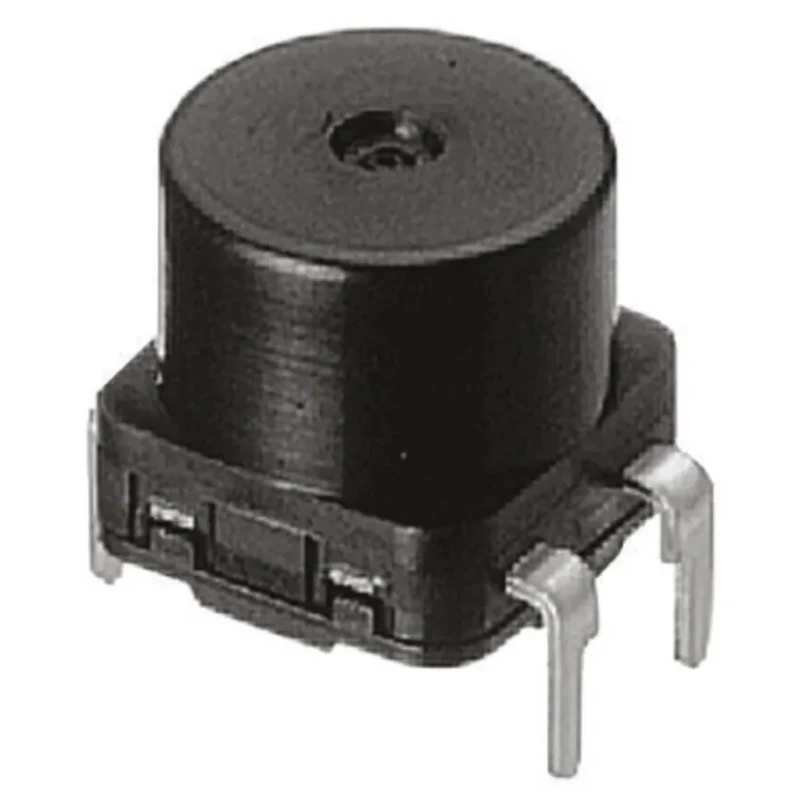

Panasonic 60 ° Horizontal Tilt Switch 19 mA AHF23
Specifications
| Country of Origin | Japan |
|---|---|
| Diameter | 9.5mm |
| Brand | Panasonic |
| Length | 11.5mm |
| Model | AHF23 |
| Depth | 11.9mm |
| Width | 9.5mm |
| Series | AHF2 |
| Maximum Operating Temperature | 80°C |
| Mounting Orientation | Horizontal |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 19mA |
| Maximum dc Voltage | 5V dc |
| Differential Angle | 60 ° |
| Panasonic 60 ° Horizontal Tilt Switch 19 mABrand | Panasonic |
Key Features
- The differential tilt angle is 60 degrees for reliable operation.
- Maximum current rating is 19 mA ensuring low power consumption.
- Operates with a maximum DC voltage of 5 V dc for safe connectivity.
- Wide operating temperature range from -20°C to 80°C suits varying environments.
- Compact dimensions including 11.5 mm length and 9.5 mm diameter enable easy installation.
- Constructed with durable materials, originating from Japan.
- Part of Panasonic’s AHF2 series known for quality tilt switches.
- No additional standards or approvals apply to this model.
Product Description
Panasonic AHF23 Horizontal Tilt Switch 60 ° 19 mA is a precision device engineered for tilt detection in industrial and automation applications. Its horizontal mounting orientation and 60 degrees differential angle allow for accurate position sensing in machinery, control systems, and safety equipment.
This tilt switch supports a maximum current of 19 mA and operates safely under a maximum DC voltage of 5 V dc, making it suitable for low-voltage signal circuits. With an operating temperature range of -20°C to 80°C, the switch performs reliably in various environmental conditions.
The compact dimensions (length 11.5 mm, diameter 9.5 mm, depth 11.9 mm) allow integration into confined spaces while maintaining consistent performance. Manufactured in Japan, this switch embodies reliability expected from Panasonic’s AHF2 series.
Due to its design, the switch finds extensive applications in automation, instrumentation, electrical control panels, and industrial equipment for tilt and position monitoring. The differential tilt angle is 60 degrees for reliable operation.
Maximum current rating is 19 mA ensuring low power consumption. Operates with a maximum DC voltage of 5 V dc for safe connectivity. Wide operating temperature range from -20°C to 80°C suits varying environments. Compact dimensions including 11.5 mm length and 9.5 mm diameter enable easy installation.
Constructed with durable materials, originating from Japan. Part of Panasonic’s AHF2 series known for quality tilt switches. No additional standards or approvals apply to this model. This high-quality tilt switch is essential for precise automation control and safety monitoring, making it a valuable component in industrial and laboratory settings.
Explore more from Panasonic and similar Tilt Switch products in the EnvMart Electronics & Electricals category for Switches & Sockets.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 19 mA, ensuring low power consumption during operation.
The differential tilt angle of the AHF23 is 60 degrees, allowing for reliable operation in tilt detection applications.
This tilt switch operates within a wide temperature range from -20°C to 80°C, making it suitable for various environmental conditions.
The maximum DC voltage for safe operation of this switch is 5 V dc.
The dimensions of this model are 11.5 mm in length, 9.5 mm in diameter, and 11.9 mm in depth, allowing for easy installation in confined spaces.
This switch supports a horizontal mounting orientation, which is ideal for various applications in industrial settings.
This model is designed for use in automation, instrumentation, electrical control panels, and industrial equipment for tilt and position monitoring.
It is constructed with durable materials, ensuring reliability in various applications, and it originates from Japan.
No additional standards or approvals apply to this model, as stated in the product specifications.
This tilt switch is part of Panasonic’s AHF2 series, known for its quality in tilt detection applications.
The weight of this model is not specified in the provided information.
The product description does not mention any additional accessories required for installation of this tilt switch.
