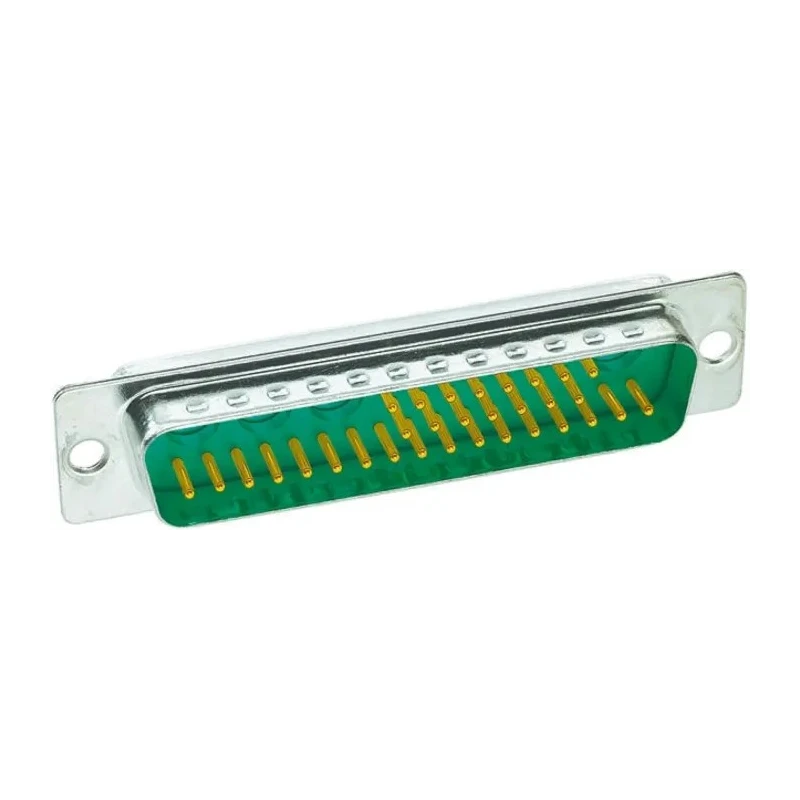

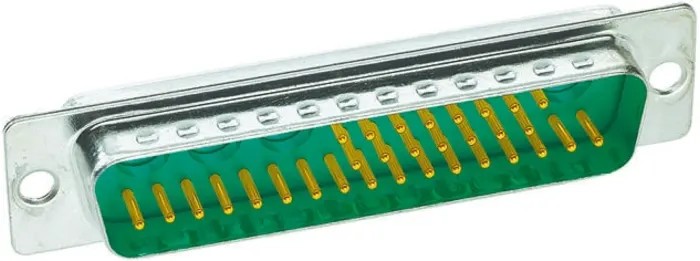

HARTING D-Sub 36 Way Straight Panel Mount D-Sub Connector 5A 1000V Steel Housing 09695117364

HARTING 09695117364 D-Sub 36 Way Straight Panel Mount D-Sub Connector is engineered for reliable connectivity in industrial, electronics, and power applications with a panel mounting design and high durability steel housing. It supports a maximum current of 5 amps and operates safely up to 1000 volts, suitable for demanding electrical environments.

The connector utilizes a mixed contact layout (36W4) with 32 signal contacts, making it versatile for numerous connection requirements. Contacts are made from copper alloy plated with gold to provide excellent electrical conductivity and resistance against corrosion, ensuring long-term performance.

Designed for solder cup termination, this connector facilitates secure and reliable assembly during installation processes. Its robust steel housing protects sensitive contact points and adds mechanical strength, suitable for panel mount setups with a flange through hole size of 3.1 mm.

Operating temperature spans from -55°C to 125°C, allowing stable operation in both cold and hot industrial environments. The product complies with RoHS environmental standards, confirming its suitability for use within electronics manufacturing frameworks emphasizing safety and eco-friendliness.

Connector features 36 contact points for efficient signal and power transmission. Supports a maximum current of 5 amps ensuring robust electrical performance. Designed with a straight orientation for panel mount applications.

Constructed with a durable steel housing for mechanical strength and protection. Rated for voltage up to 1000 volts suitable for various industrial environments. Contact material made from copper alloy with gold plating for enhanced conductivity and corrosion resistance.

Operating temperature range from -55°C to 125°C supporting diverse environmental conditions. Termination via solder cup type ensuring secure and dependable connections. Complies with RoHS standards to meet environmental and safety regulations.

Mixed contact layout (36W4) with 32 signal contacts supporting multiple connection types.

This connector is ideal for industrial automation, manufacturing equipment, power distribution panels, telecommunications, and other electronic component integration tasks requiring reliable, high-quality connector solutions. Explore more HARTING connectors and related industrial electronic components in the EnvMart catalog.
