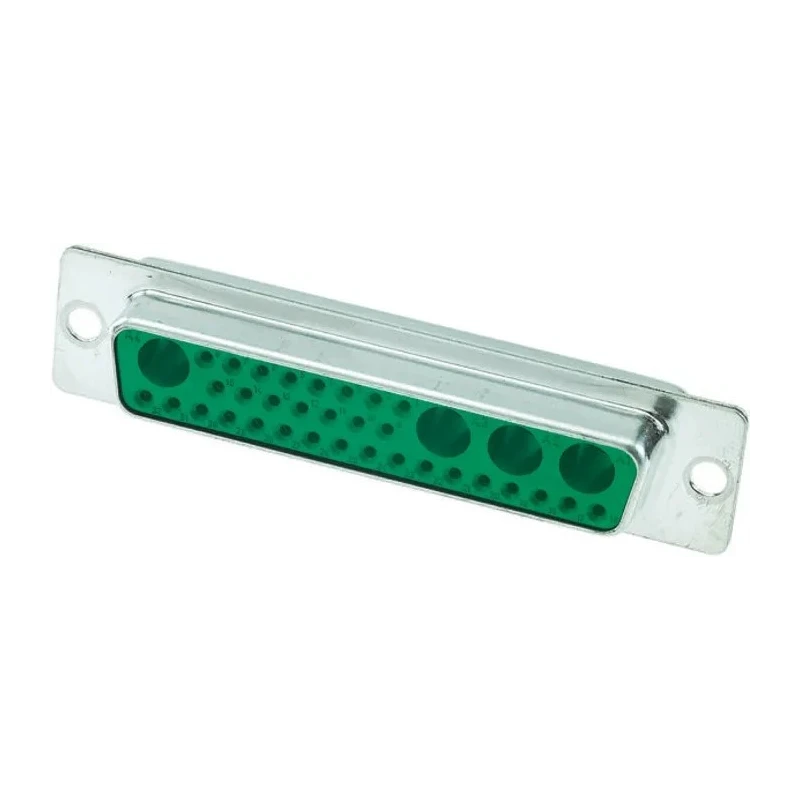

HARTING D-Sub 36 Way Straight Panel Mount D-Sub Connector 09695017364
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Panel Mount |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Termination Type | Solder Cup |
| Maximum Operating Temperature | 125°C |
| Contact Type | 32 Signal |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Female |
| Mixed Contact Layout | 36W4 |
Key Features
- Features 36 contacts for robust connectivity.
- Panel mount type with straight orientation for secure installation.
- Contacts include 32 signal pins with gold-plated copper alloy for durability.
- Steel housing ensures mechanical strength and durability.
- Solder cup termination type enables reliable solder connections.
- Operates at voltages up to 1000V for versatile applications.
- Current rating of 5A suitable for medium power signals.
- Wide operating temperature range from -55°C to 125°C for harsh environments.
Product Description
HARTING 09695017364 is a high-quality D-Sub 36 Way Straight Panel Mount D-Sub Connector designed for reliable electronic and power connectivity applications. This connector features a robust steel housing combined with a mixed shell design and pre-mounted signal solder cup contacts, making it ideal for use in industrial, laboratory, and manufacturing environments.
Equipped with 36 contacts, including 32 signal pins, the connector operates at voltages up to 1000V and supports a current rating of 5A. The gold-plated copper alloy contacts ensure excellent conductivity and resistance to corrosion, enhancing long-term performance.
Its solder cup termination type allows for secure and durable soldering connections, while the straight orientation and panel mount design facilitate easy and stable integration into equipment panels. The connector is engineered to perform reliably across a broad temperature range from -55°C to 125°C, making it suitable for use in harsh and demanding environmental conditions.
Compliant with RoHS directives, this connector supports environmentally responsible manufacturing and use. Its flange through holes with a diameter of 3.1 mm provide secure mechanical mounting, following the DIN 41 652 T1 standard ensuring compatibility and quality.
This D-Sub Connector is applicable in electronics, power distribution, automation, and communication systems, where dependable multi-contact connections are essential. The steel housing material and mixed contact layout provide mechanical robustness and flexible signal distribution.
Features 36 contacts for robust connectivity. Panel mount type with straight orientation for secure installation. Contacts include 32 signal pins with gold-plated copper alloy for durability. Steel housing ensures mechanical strength and durability.
Solder cup termination type enables reliable solder connections. Operates at voltages up to 1000V for versatile applications. Current rating of 5A suitable for medium power signals. Wide operating temperature range from -55°C to 125°C for harsh environments.
Complies with RoHS standards ensuring environmental safety. Mixed shell design with pre-mounted signal solder cup contacts for convenience. Explore EnvMart's comprehensive collection of connectors and power connectors for all your industrial and electronic application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector operates at voltages up to 1000V, making it suitable for various applications.
It features a total of 36 contacts, including 32 signal pins designed for robust connectivity.
The current rating for this model is 5A, which is suitable for medium power signals.
It uses a solder cup termination type, allowing for reliable solder connections.
This connector operates within a wide temperature range from -55°C to 125°C, making it suitable for harsh environments.
The housing is made from steel, providing mechanical strength and durability.
Yes, it complies with RoHS standards, ensuring environmental safety in its manufacturing and use.
It has a straight orientation, which facilitates secure installation in panel mount applications.
The contacts are made from gold-plated copper alloy, which enhances conductivity and corrosion resistance.
This model features a panel mount type, allowing for stable integration into equipment panels.
The contact gender for this connector is female, suitable for various connectivity needs.
Yes, it features a mixed contact layout, specifically designed as a 36W4 configuration for flexible signal distribution.
