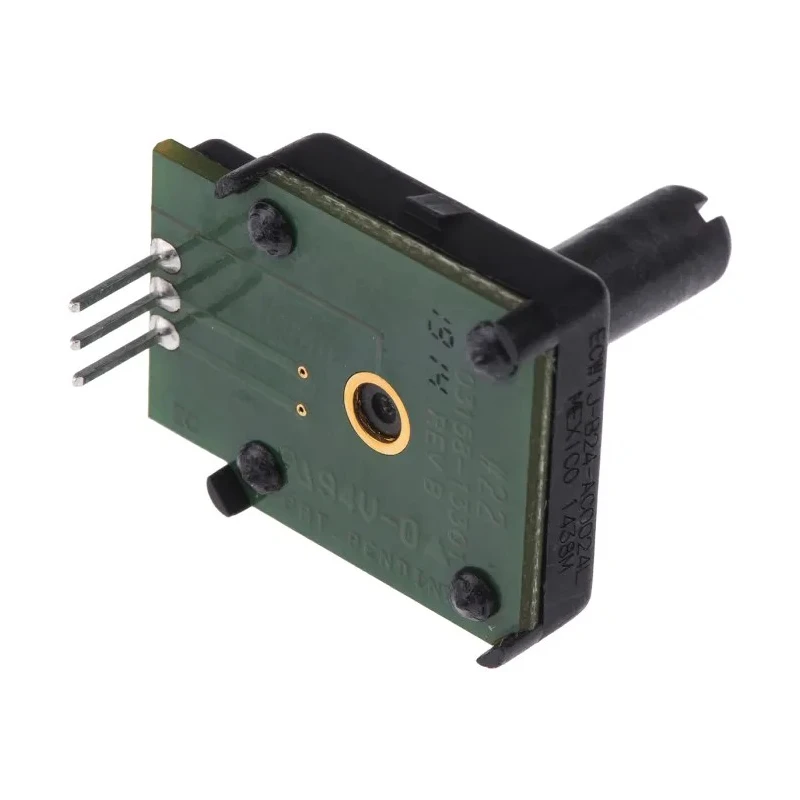

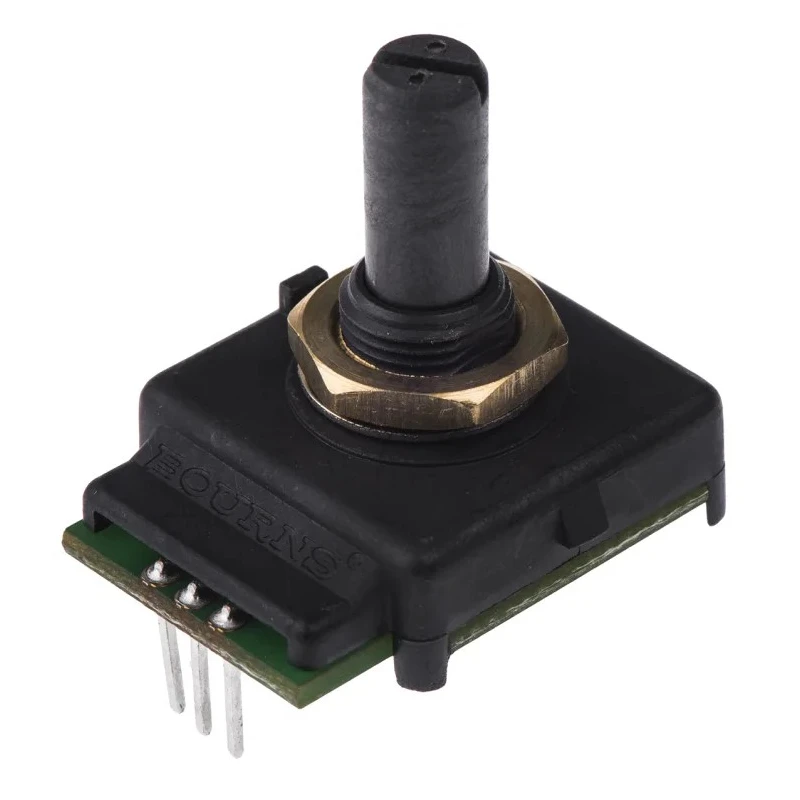

Bourns ECW Series Incremental Encoder 10V, 24 PPR, Quadrature Signal, Solid Shaft 6.35 mm ECW1J-B24-AC0024L

Bourns ECW1J-B24-AC0024L is an Incremental Encoder from the ECW series, featuring a 10V maximum supply voltage and delivering 24 pulses per revolution via a quadrature output signal. It is designed with a solid 6.35 mm diameter shaft and panel mounting for reliable installation.

This encoder offers a maximum rotational speed of 120 rpm and operates efficiently within a temperature range of -40°C to 85°C, making it suitable for a variety of industrial and automation environments. The IP40 rating provides protection against ingress of solid particles, enhancing its durability in demanding conditions.

The compact form factor with overall dimensions of 28.49 mm width, 27.51 mm height, and 22.2 mm depth ensures ease of integration into control systems. Its robust construction provides an exceptionally long operating life, supporting continuous industrial operations.

Ideal for applications involving motion control sensors, factory automation, and machinery requiring precise rotational feedback, this encoder is compatible with various shaft styles as detailed in the datasheet. It can be paired with mounting brackets for PCB installation if needed.

Operates with a maximum supply voltage of 10V. Produces 24 pulses per revolution using quadrature output signals. Solid shaft type with 6.35 mm diameter. Rated IP40 for protection against solid objects. Suitable for panel mounting installation.

Temperature operating range from -40°C to 85°C ensures versatile usage. Compact and robust design for industrial-grade operation.

This encoder supports industrial, electrical automation, motion control, and manufacturing processes by providing reliable position sensing. The Bourns ECW Series is recognized for its durability and precision in automation applications.
