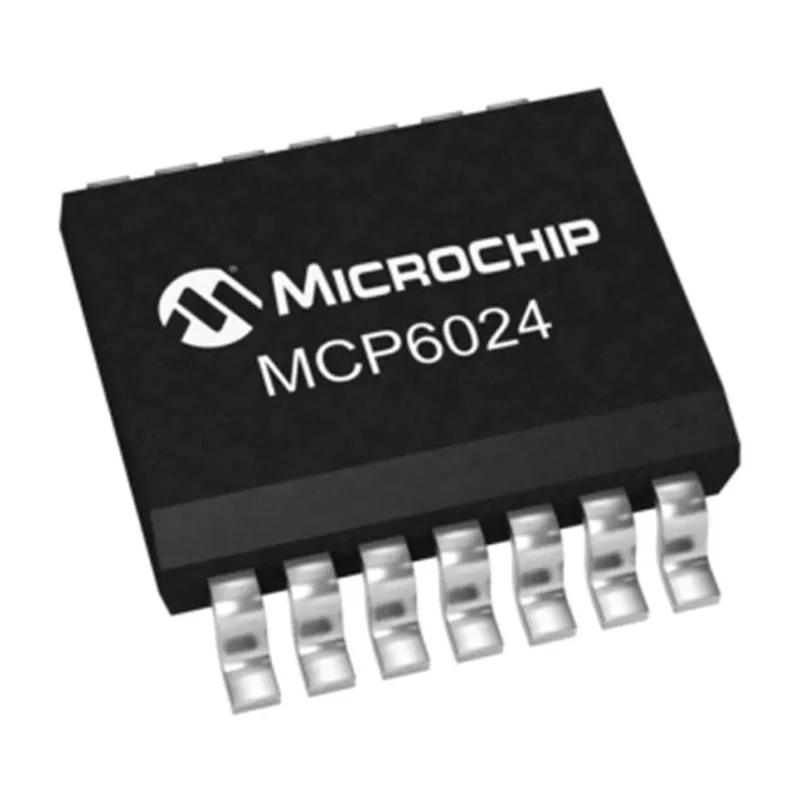

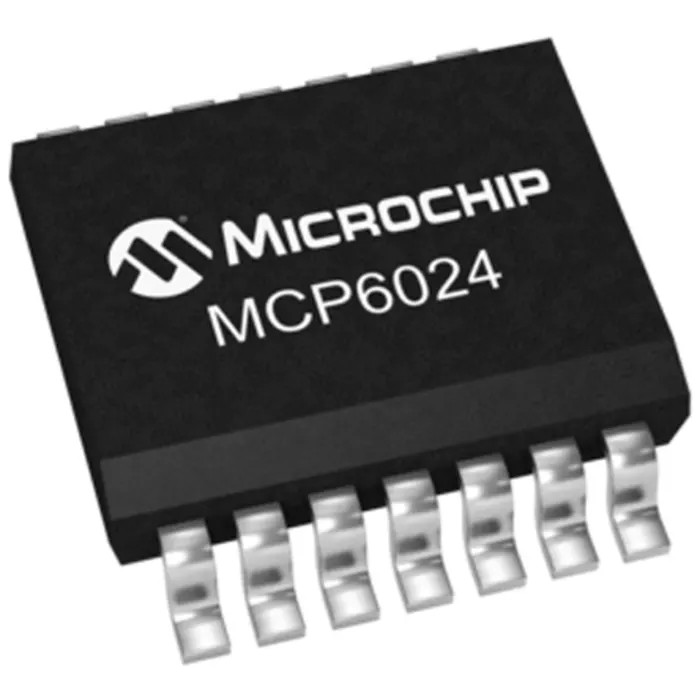

Microchip Operational Amplifier 10 MHz 14-Pin SOIC 5.5V MCP6024-I/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | MCP6024-I/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6024 |
| Output Current | 30mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Slew Rate | 7V/μs |
| MCP6024-E/SL Microchip, Operational Amplifier, 10 MHz, 14-Pin 5.5V SOICBrand | Microchip |
Key Features
- Low input bias current of 1 picoampere ensures high precision performance.
- Wide supply voltage range from 3V to 5.5V suits various circuit designs.
- Gain bandwidth product of 10 MHz supports high-frequency operations.
- Slew rate of 7 V/μs enables rapid response to input changes.
- Operating temperature range from -40°C to 85°C for reliable industrial use.
- Output current capability of 30 mA allows driving moderate loads.
- Compact dimensions 8.65 mm length, 3.9 mm width, and 1.5 mm height optimize PCB layout.
- Surface mount SOIC packaging simplifies assembly on modern printed circuit boards.
Product Description
Microchip MCP6024-I/SL is a four-channel operational amplifier in a 14-pin SOIC surface mount package, delivering a gain bandwidth product of 10 MHz and operating from a supply voltage range of 3 to 5.5 volts. This device features an ultra-low input bias current of 1 picoampere, an input offset voltage of ±500 microvolts, and a slew rate of 7 volts per microsecond, making it ideal for precision amplification in industrial, laboratory, and embedded electronics.
The amplifier supports an output current of up to 30 mA and functions reliably across an extended temperature range of -40 to 85 degrees Celsius, ensuring robust performance in demanding environments. Its compact size with dimensions of 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height facilitates space-efficient PCB designs in automotive and commercial applications, although it does not meet automotive standard certifications.
This SOIC packaged component provides four integrated channels, reducing component count and enhancing circuit simplicity for applications such as signal conditioning, data acquisition, instrumentation amplification, and general analog signal processing. Compliance with RoHS directives ensures environmentally safe manufacturing and disposal.
Low input bias current enhances precision in sensitive signal amplification. Wide supply voltage range for versatility across power schemes. High slew rate for fast signal response and minimal distortion. Four amplifiers in a single package for multi-channel solutions.
Compact surface mount footprint reduces assembly complexity. Operating temperature range supports industrial-grade applications. Output current capacity suitable for moderate load driving. RoHS compliant for environmental safety.
Ideal for use in industrial, laboratory, electronic design, and manufacturing sectors.
This Microchip Operational Amplifier MCP6024-I/SL is a reliable choice for precision electronics projects requiring stable and high-speed amplification. Explore more in the Electronics & Electricals category at EnvMart to find complementary semiconductor components and amplifiers tailored for diverse applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 10 MHz, supporting high-frequency operations.
It operates within a supply voltage range of 3V to 5.5V, making it suitable for various circuit designs.
This operational amplifier can provide an output current of up to 30 mA, allowing it to drive moderate loads.
The MCP6024-I/SL has compact dimensions of 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height, optimizing PCB layout.
It functions reliably within an operating temperature range of -40°C to 85°C, suitable for industrial applications.
The slew rate of this operational amplifier is 7 V/μs, enabling rapid response to input changes.
This model features four integrated channels, which helps reduce component count and enhance circuit simplicity.
It comes in a 14-pin SOIC surface mount package, simplifying assembly on modern printed circuit boards.
The input bias current is specified at 1 picoampere, ensuring high precision performance in applications.
Yes, this operational amplifier complies with RoHS directives, ensuring environmentally safe manufacturing and disposal.
It is ideal for applications such as signal conditioning, data acquisition, instrumentation amplification, and general analog signal processing.
The input offset voltage is ±500 microvolts, contributing to its precision in amplification tasks.
