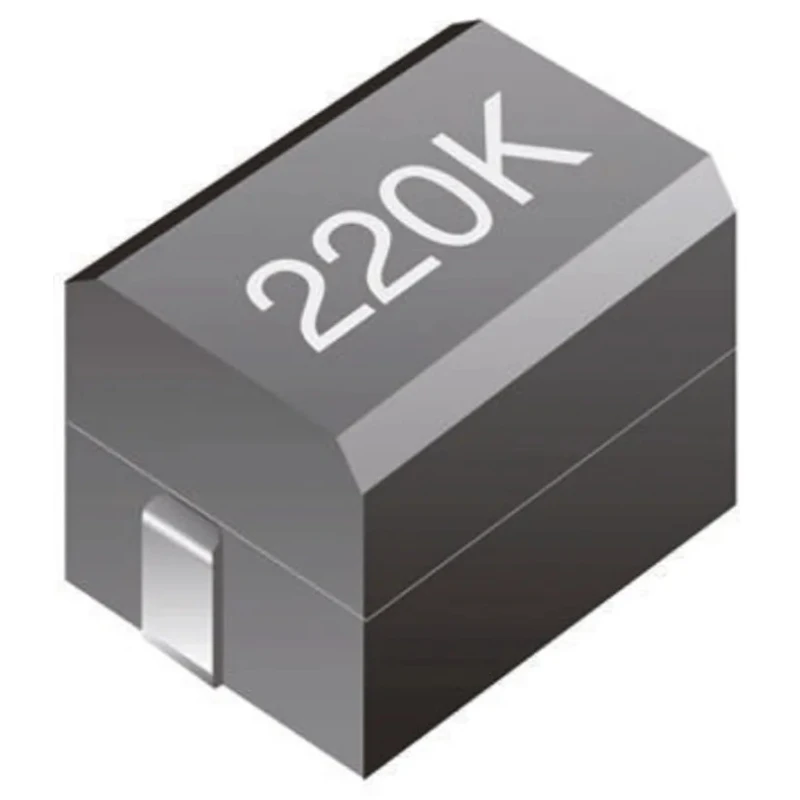

Bourns 1210 Shielded Wirewound Surface Mount Inductor, Ferrite Core, 1 μH ±10 %, 230 mA Idc, Q:30 CM322522

Bourns CM322522 is a 1210 size shielded wirewound Surface Mount Inductor featuring a ferrite core. This component provides an inductance of 1 μH with a tolerance of ±10 % and supports a maximum DC current of 230 mA. It is designed for use in a variety of electronic equipment including AV devices and wireless communication systems where stable inductance and low electromagnetic interference are essential.

The ferrite core construction enhances magnetic performance while the shielded design reduces electromagnetic interference, improving overall circuit reliability. With a maximum DC resistance of 690 mΩ, the inductor maintains efficiency even under continuous current stress. The maximum operating temperature is rated up to 100°C, making it suitable for demanding thermal environments.

Its compact dimensions of 3.2 mm length, 2.2 mm height, and 2.5 mm depth in the 1210 case allow for space-saving on PCB layouts. The termination style uses solder for secure attachment to circuit boards. Packaging in tape and reel facilitates automated placement in large volume manufacturing.

This inductor also features a maximum self-resonant frequency of 115 MHz and a minimum quality factor of 30, making it effective for high frequency applications with minimal losses. It is fully RoHS compliant and moulded for mechanical robustness.

Commonly found in professional industrial, electronic, and communication devices, this inductor is ideal for enhancing circuit performance by providing reliable inductance and noise suppression in compact form factors.

Features a wirewound construction for durability and stable inductance. Ferrite core enhances magnetic performance and reduces losses. Shielded design minimizes electromagnetic interference in circuits. Compact 1210 package size with dimensions 3.2 mm length, 2.2 mm height, and 2.5 mm depth.

Suitable for applications up to 100°C operating temperature. Inductance tolerance is ±10 % ensuring reliable performance. Maximum DC resistance is 690 mΩ maintaining efficiency at rated current. Maximum self-resonant frequency of 115 MHz enables high frequency operation.

Minimum quality factor of 30 ensures low losses and stable operation. Packaged in tape & reel format for automated assembly processes. Explore more in Electronics Components at EnvMart for reliable electronic passive components including inductors and related accessories.
