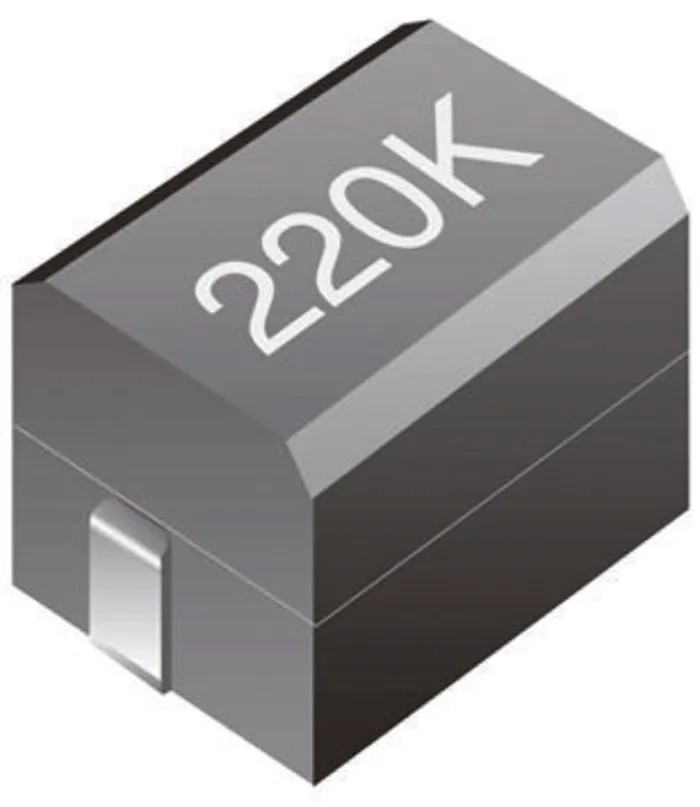

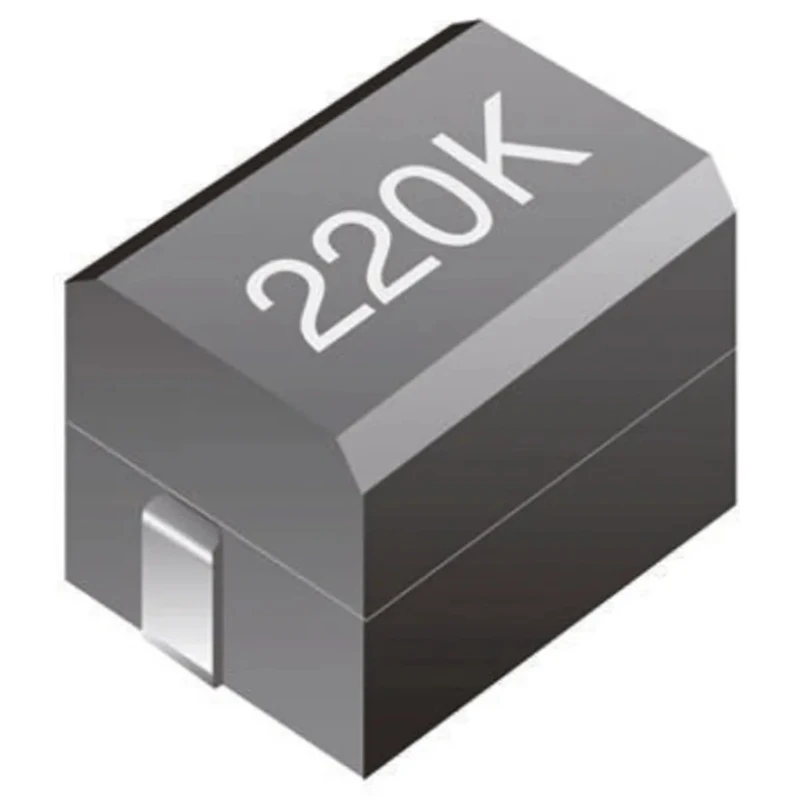

Bourns 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 3.3 μH ±10% 180 mA Idc Q:30 CM322522

Free Delivery in India | Lowest Global Shipping Charges

Bourns 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 3.3 μH ±10% 180 mA Idc Q:30 CM322522

Name: Bourns 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 3.3 μH ±10% 180 mA Idc Q:30 CM322522
Brand: BOURNS
SKU: 212982
Price: 0.25 USD
Availability: InStock



Category Surface Mount Inductor Brand BOURNS Condition New

Specifications

Country of Origin	Japan
Brand	Bourns
Height	2.2mm
Length	3.2mm
Model	CM322522
Depth	2.5mm
Packaging	Tape & Reel
Series	CM322522
Maximum Operating Temperature	100°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	3.3μH
Standards/Approvals	RoHS
Package/Case	1210
Maximum DC Current	180mA
Pin Count	2
Maximum DC Resistance	1.2Ω
Inductance Tolerance	±10 %
Termination Style	Solder
Maximum Self Resonant Frequency	65MHz
Minimum Quality Factor	30
Inductor Construction	Wirewound

Key Features

Inductor features a ferrite core and is shielded to reduce electromagnetic interference.
Rated for a maximum DC current of 180 mA with a quality factor of 30 at resonance.
Compact 1210 package size with dimensions of 3.2 mm length, 2.5 mm depth, and 2.2 mm height.
Manufactured using wirewound construction and resin molded for durability.
Designed for surface mounting with solder termination style suitable for automated assembly.
Approved as RoHS compliant for environmentally safe use.
Operating temperature range from -40°C to 100°C for broad application environments.
Maximum DC resistance of 1.2 Ω ensures efficient energy use.

Product Description

Bourns CM322522 1210 Shielded Wirewound Surface Mount Inductor delivers 3.3 μH inductance with a ±10% tolerance, suitable for precise filtering and energy storage in electronic circuits. This wirewound inductor features a ferrite core that provides excellent magnetic properties and shielding to minimize interference for clearer signal integrity.

Its compact 1210 case measures 3.2 mm by 2.5 mm by 2.2 mm and employs solder termination style ideal for surface mount technology manufacturing processes, supporting high volume production.

Rated for a maximum DC current of 180 mA and featuring a minimum quality factor of 30, this inductor supports efficient performance at up to 65 MHz self-resonant frequency, making it optimal for RF and general electronic applications.

The component is resin molded and RoHS compliant, making it environmentally friendly and mechanically robust for varied industrial uses including AV equipment, wireless communications, and other general electronic assemblies.

Ferrite core provides high magnetic permeability and effective shielding. Compact 1210 package ensures space-efficient PCB layouts. RoHS certification suitable for modern environmentally regulated manufacturing. Wide operating temperature range from -40°C to 100°C for versatile industrial use.

Low DC resistance reduces energy loss and heat generation during operation. Wirewound construction enhances inductance stability and performance consistency. Surface mount design permits easy automated soldering on PCBs.

Manufactured in Japan, ensuring quality manufacturing standards.

This Surface Mount Inductor is ideal for industrial electronics applications requiring precise inductance, small form factor, and dependable performance. It suits manufacturers and engineers designing AV equipment, wireless communication devices, and general purpose electronic circuits.
