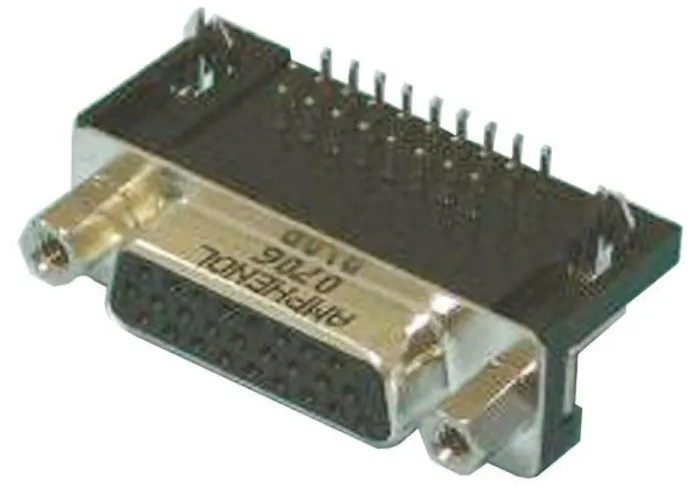

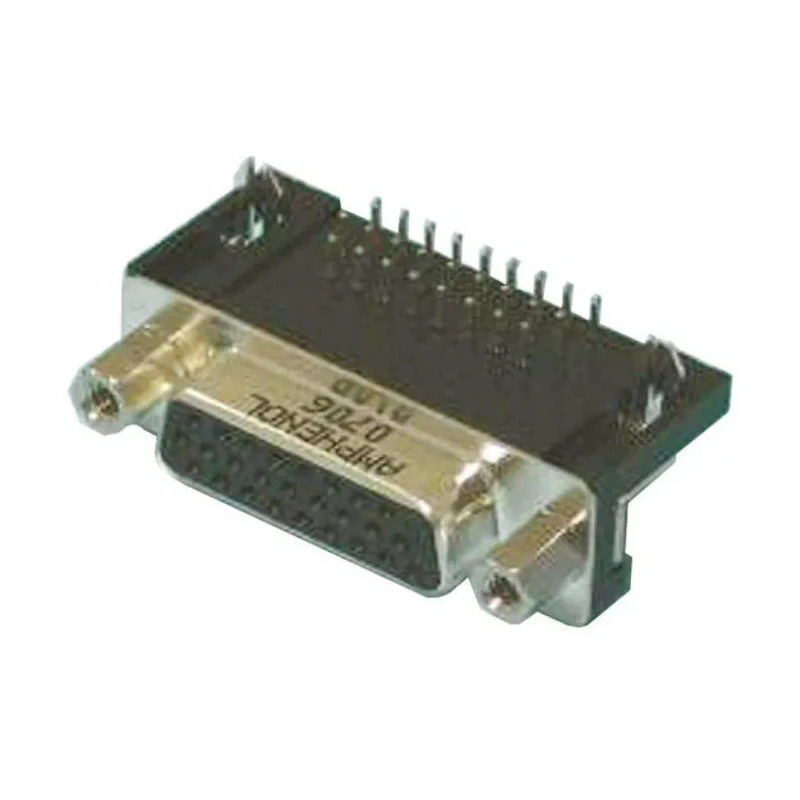

Amphenol Communications Solutions D-Sub Connector 15 Way Right Angle Through Hole 250V 3A Thermoplastic Housing L77HD
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 3A |
| Model | L77HD |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Bronze |
| Series | L77HD |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DE-15 |
Key Features
- 15 contact points provide secure electrical connections at 3A maximum current.
- Right angle orientation suitable for space-saving PCB mounting.
- Thermoplastic housing ensures durability and insulation at operating temperatures from -55°C to 105°C.
- Gold-plated bronze contacts enhance corrosion resistance and conductivity.
- Mount type is through hole with 4 to 40 UNC screw lock hardware for secure fastening.
- Rated for a voltage of 250V, suitable for various electronic applications.
- Termination type is solder, compatible with standard soldering processes.
- Connector gender is female to match typical mating connectors.
Product Description
Amphenol Communications Solutions L77HD is a high-density 15 way right angle D-Sub connector designed for through hole mounting and solder termination. It features a thermoplastic housing and gold-plated bronze contacts, ensuring excellent electrical performance and durability.
The connector supports a voltage rating of 250V and a current of up to 3A, making it suitable for industrial, commercial, and electronic component applications requiring reliable data and signal connections. Its operating temperature range spans from -55°C to 105°C, accommodating harsh environments.
Mounting hardware includes 4 to 40 UNC screw locks, providing a secure and stable connection in enclosure or PCB assemblies. The female connector gender and DE-15 shell size are compatible with standard D-Sub cabling and interface systems.
This connector is ideal for use in electronic devices, power connectors, audio/video systems, and other industrial electronics requiring high-density and robust connectivity solutions. Its thermoplastic housing offers lightweight protection while withstanding mechanical and thermal stress.
15 contact points provide secure electrical connections at 3A maximum current. Right angle orientation suitable for space-saving PCB mounting. Thermoplastic housing ensures durability and insulation at operating temperatures from -55°C to 105°C.
Gold-plated bronze contacts enhance corrosion resistance and conductivity. Mount type is through hole with 4 to 40 UNC screw lock hardware for secure fastening. Rated for a voltage of 250V, suitable for various electronic applications.
Termination type is solder, compatible with standard soldering processes. Connector gender is female to match typical mating connectors.
This product is manufactured in China and conforms to reliable industrial standards. Amphenol Communications Solutions connectors are widely used in electronic manufacturing, automation systems, telecommunications, and instrumentation industries.
Explore the extensive range of D-Sub Connectors at EnvMart for your connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a voltage of 250V, making it suitable for various electronic applications.
It supports a maximum current of 3A, ensuring secure electrical connections for compatible devices.
This model features a through hole mounting type, which allows for secure fastening using 4 to 40 UNC screw lock hardware.
The housing is made of thermoplastic, while the contacts are made of bronze with gold plating for enhanced conductivity and corrosion resistance.
It operates effectively within a temperature range of -55°C to 105°C, accommodating harsh environmental conditions.
This connector features 15 contact points, providing secure electrical connections.
The connector is a female type, designed to match typical mating connectors in standard applications.
It utilizes solder termination, which is compatible with standard soldering processes for secure connections.
The L77HD model has a right angle orientation, which is suitable for space-saving PCB mounting.
This product is manufactured in China, conforming to reliable industrial standards.
It is suitable for a variety of applications including industrial, commercial, and electronic component connections that require reliable data and signal connectivity.
The D-Sub shell size for this model is DE-15, which is compatible with standard D-Sub cabling and interface systems.
