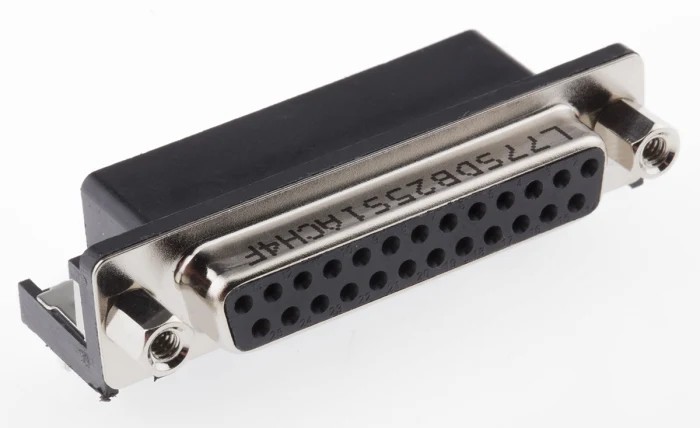

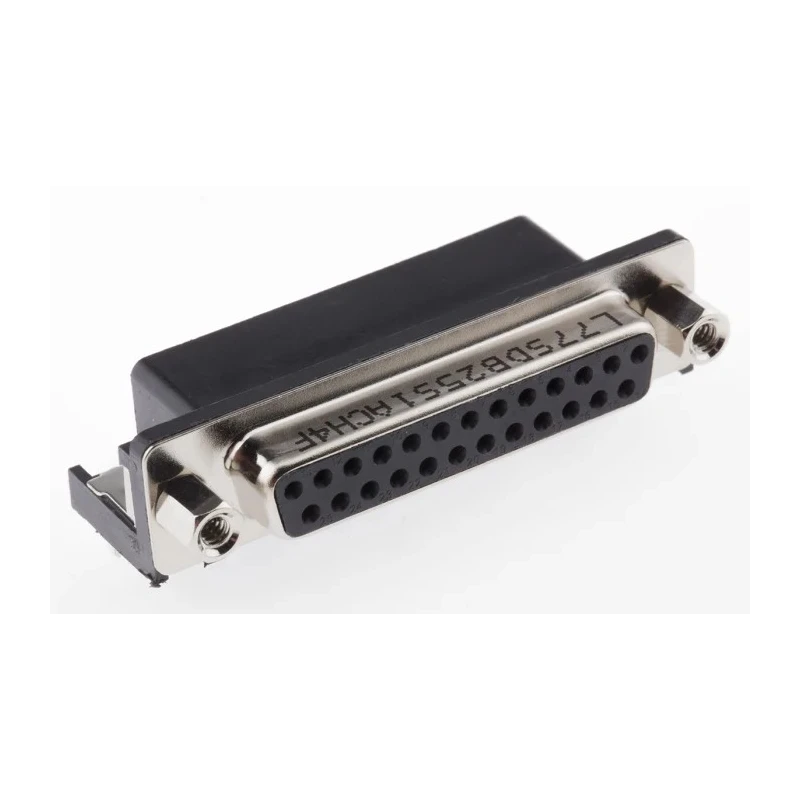

Amphenol Communications Solutions D-Sub Connector 25 Way Right Angle Through Hole Thermoplastic Housing Gold Plated L77SD
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 5A |
| Model | L77SD |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Bronze |
| Series | L77SD |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| D-Sub Shell Size | DB-25 |
Key Features
- This connector features 25 contacts with female gender suitable for various applications.
- Operates safely at voltages up to 250V and current ratings up to 5A.
- Right angle orientation and through hole mounting ensure secure PCB installation.
- Housing material is durable thermoplastic suited for demanding environments.
- Contact material is bronze with gold plating for excellent conductivity and corrosion resistance.
- Includes 4 to 40 UNC screw lock mounting hardware for secure mechanical attachment.
- Suitable for operating temperatures ranging from -55°C to 105°C.
- Termination type is solder, providing strong electrical and mechanical connection.
Product Description
Amphenol Communications Solutions L77SD D-Sub Connector 25 Way Right Angle Through Hole is a premium connector designed for secure and reliable electronic connections in industrial, electronic components, power, and connector applications. It offers thermoplastic housing which provides durability and insulation for sensitive connections.
Its right angle female connector design with 25 contact pins caters to compact PCB layouts while maintaining excellent electrical performance.
The connector is rated for 250 volts and 5 amperes current, making it suitable for various power and signal transmission applications. The bronze contacts with gold plating enhance conductivity and provide corrosion resistance for long-term reliability. The termination type is solder, ensuring a secure attachment to PCB pads.
The mounting mechanism uses a 4 to 40 UNC screw lock, facilitating a robust mechanical connection in demanding industrial and electronics assemblies. Operating temperature ranges from -55°C to 105°C allow this connector to function in harsh environmental conditions.
This L77SD series connector is suitable for electronic, industrial, manufacturing, and power supply equipment applications requiring high-density D-Sub style connectors for data and power transmission.
This connector features 25 contacts with female gender. Operating voltage is 250V with current rating of 5A. Housing material is thermoplastic for excellent insulation. Contact material is bronze with gold plating for durability and conductivity.
Right angle orientation and through hole mount for effective PCB connection. Termination is solder type with secure mechanical mounting screw locks. Operating temperature range from -55°C to 105°C supports diverse environments.
Choose Amphenol Communications Solutions L77SD connector for trusted high-performance D-Sub connections in industrial and electronics manufacturing applications. Browse more electronic connectors and components on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates at a voltage of 250V and has a current rating of 5A.
It features a right angle orientation and is designed for through hole mounting.
The housing is made of thermoplastic, while the contacts are bronze with gold plating for enhanced conductivity and corrosion resistance.
The operating temperature range is from -55°C to 105°C, allowing it to function in various environmental conditions.
This connector features 25 contacts with a female gender.
The termination type is solder, providing a strong electrical and mechanical connection.
It includes 4 to 40 UNC screw lock mounting hardware for secure mechanical attachment.
This connector is suitable for electronic, industrial, manufacturing, and power supply equipment applications requiring high-density D-Sub connections.
The D-Sub shell size for this model is DB-25.
The country of origin for this connector is China.
The gold plating on the bronze contacts enhances conductivity and provides corrosion resistance, contributing to long-term reliability.
Yes, the right angle female connector design with 25 contact pins caters to compact PCB layouts while maintaining excellent electrical performance.
