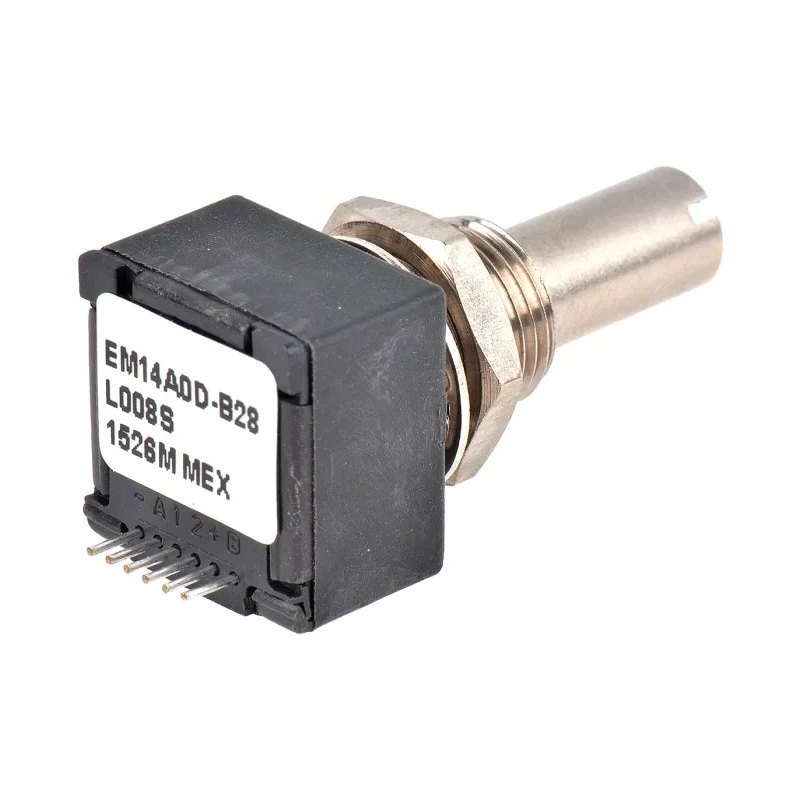

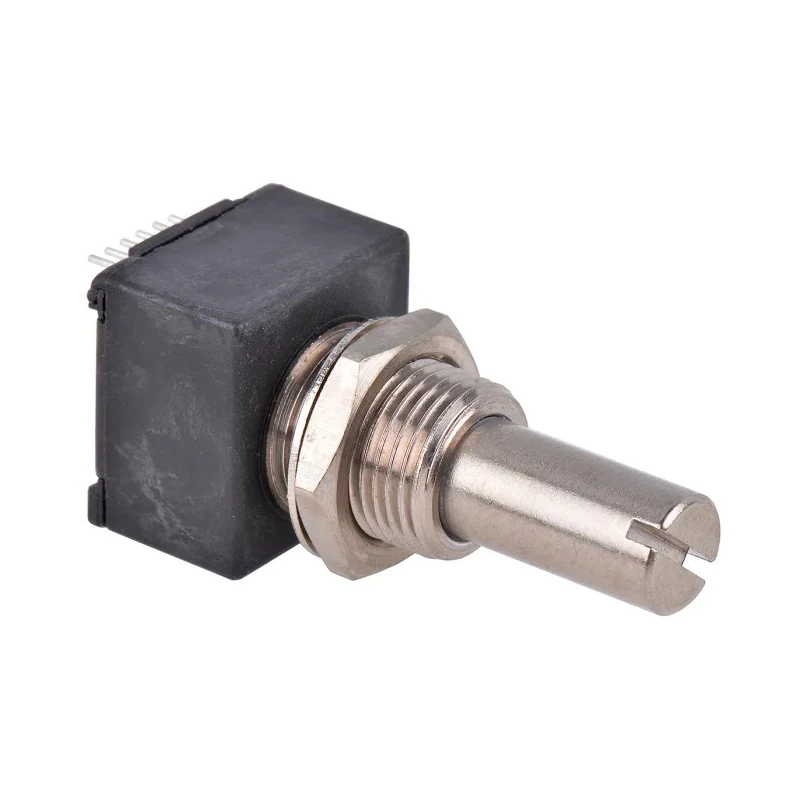

Bourns Optical Incremental Encoder 5V DC, 8 PPR, Quadrature Signal, Slotted Shaft 6.35 mm, Panel Mount EM14
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | Bourns |
| Model | EM14 |
| IP Rating | IP54 |
| Mount Type | Panel Mount |
| Series | EM14 |
| Overall Width | 14.25mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| Shaft Diameter | 6.35mm |
| Overall height | 14.76mm |
| Shaft Type | Slotted |
| Terminal type | Axial Multi Purpose Pin |
| Interface Type | HMI |
| Pulses per Revolution | 8ppr |
| Standards/Approvals | RoHS |
| Maximum Supply Voltage | 5V dc |
| Overall Depth | 32.05mm |
| Encoder Technology | Optical |
| Maximum Revolutions | 120rpm |
| Output Signal Type | Quadrature |
Key Features
- Compact 14 mm rotary optical encoder with panel mount design.
- Operates at a maximum speed of 120 RPM ensuring precise position feedback.
- Features quadrature output signals compatible with HCMOS, CMOS, and TTL logic levels.
- Incorporates a splashproof shaft seal providing IP54 protection rating.
- Engineered for long rotational life cycle and robust performance.
- Equipped with axial multi-purpose pin terminals for versatile connectivity.
- Suitable for human-machine interface (HMI) control applications.
- Functions within a temperature range of -40°C to 70°C for broad environmental tolerance.
Product Description
Bourns EM14 Optical Incremental Encoder EM14 model is a 5V DC powered rotary optical encoder designed for precise motion control sensing in industrial and automation applications. The encoder features an 8 pulses per revolution output and quadrature signal type, providing accurate incremental feedback for position and speed measurement.
This encoder is built with a robust, splashproof shaft seal to meet IP54 ingress protection, enhancing durability in harsh industrial environments. The compact design includes a 14.25 mm width, 14.76 mm height, and 32.05 mm overall depth, making it suitable for compact panel mount installations.
The slotted shaft with a 6.35 mm diameter enables precise mechanical coupling, while axial multi-purpose pin terminals provide reliable electrical interfacing. The device supports HCMOS, CMOS, and TTL compatible output signals, allowing flexible integration with various control systems.
Rated for operation in temperatures between -40°C and 70°C, the encoder is engineered for high rotational life cycles and consistent performance, ideal for human-machine interface (HMI) applications and general automation sensor tasks.
Manufactured in Mexico, the EM14 series complies with RoHS standards, ensuring environmentally responsible production. This panel mount Incremental Encoder is recommended for diverse industrial automation, manufacturing, and control systems requiring precise position feedback.
Compact 14 mm rotary optical encoder with panel mount design. Operates at a maximum speed of 120 RPM ensuring precise position feedback. Features quadrature output signals compatible with HCMOS, CMOS, and TTL logic levels.
Incorporates a splashproof shaft seal providing IP54 protection rating. Engineered for long rotational life cycle and robust performance. Equipped with axial multi-purpose pin terminals for versatile connectivity. Suitable for human-machine interface (HMI) control applications.
Functions within a temperature range of -40°C to 70°C for broad environmental tolerance. Constructed with a 6.35 mm slotted shaft diameter for easy integration. Manufactured in Mexico to ensure quality and compliance with RoHS standards.
Explore more industrial sensors and motion control solutions from Bourns on EnvMart for high-quality and reliable automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum speed of this encoder is 120 RPM, ensuring precise position feedback in applications.
This model features a quadrature output signal type, which is compatible with HCMOS, CMOS, and TTL logic levels.
It operates within a temperature range of -40°C to 70°C, allowing for broad environmental tolerance.
The overall dimensions are 14.25 mm in width, 14.76 mm in height, and 32.05 mm in depth.
It has a slotted shaft with a diameter of 6.35 mm, facilitating precise mechanical coupling.
This encoder has an IP54 protection rating, which provides a splashproof design suitable for industrial environments.
It is equipped with axial multi-purpose pin terminals for versatile connectivity.
This encoder is manufactured in Mexico, ensuring quality and compliance with RoHS standards.
The encoder provides 8 pulses per revolution (PPR), enabling accurate incremental feedback.
It is suitable for human-machine interface (HMI) control applications and general automation sensor tasks.
The maximum supply voltage for this model is 5V DC, which is required for its operation.
This model utilizes optical encoder technology, designed for precise motion control sensing.
