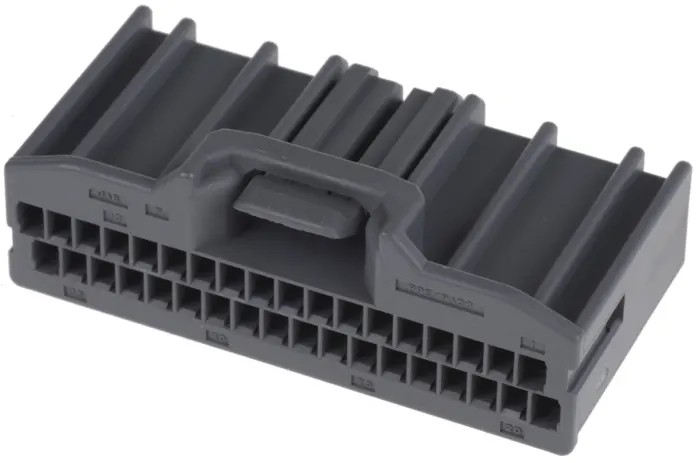

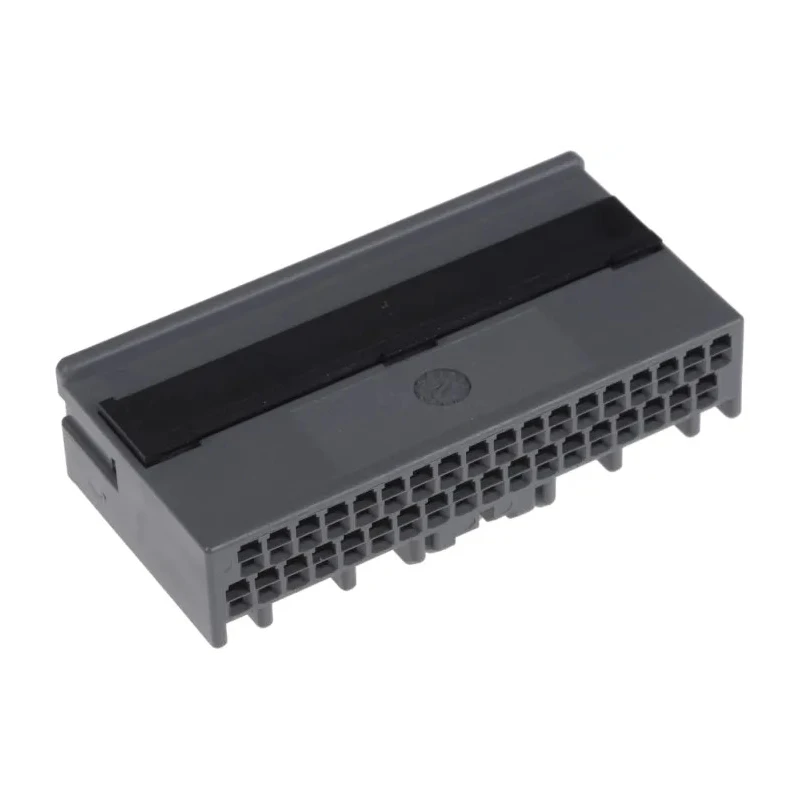

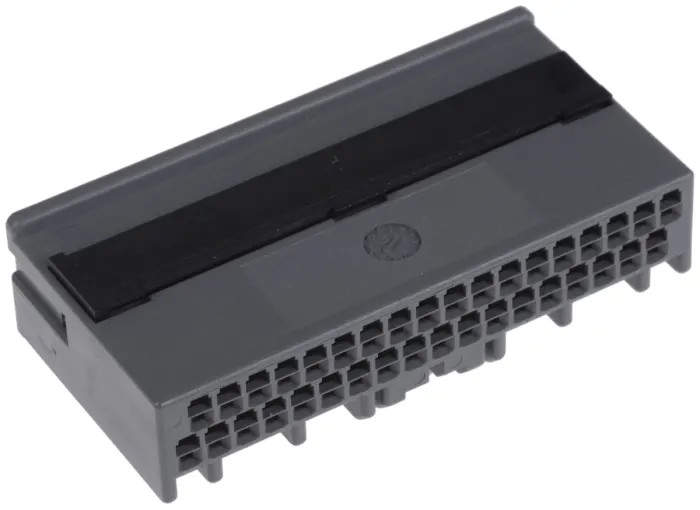

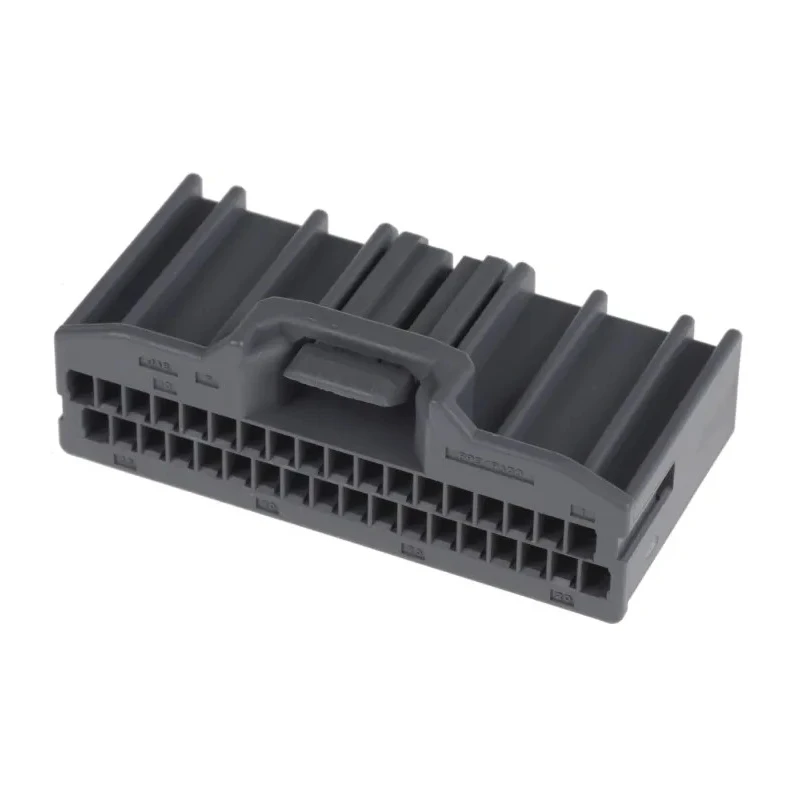

JAE MX34 Automotive Connector Female Grey Cable 36 Way Crimp Termination MX34
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Colour | Grey |
| Current | 3A |
| Height | 14mm |
| Model | MX34 |
| Depth | 21.3mm |
| Width | 42.7mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Nylon, Polyphenylene Ether |
| Series | MX34 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Sub Type | Socket Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 36 |
Key Features
- Compact, non-waterproof connector designed for automotive board-to-cable connections.
- Equipped with a preset double locking mechanism for secure connection.
- Durable nylon and polyphenylene ether housing for robust protection.
- 36 contacts with tin-plated socket contacts to ensure reliability.
- Operating temperature range from -40°C to 85°C for diverse environments.
- Supports a current of 3A and cable mount type for easy installation.
- Features a 2-row socket housing with grey color for cable identification.
- Certified RoHS compliant ensuring environmental safety standards.
Product Description
JAE MX34 automotive connector female grey cable 36 way crimp termination is a compact, non-waterproof automotive connector designed specifically for board-to-cable applications. The connector features a robust nylon and polyphenylene ether housing providing excellent mechanical strength and environmental durability. It contains 36 contacts arranged in 2 rows, designed to carry a current of 3A and is terminated by crimping for secure electrical connections.
This connector series emphasizes ease of use with a preset-type double locking mechanism that detects incomplete contact insertion, enhancing reliability and safety during assembly. The socket contacts are tin-plated and constructed to resist twisting, supported by a double leaf spring design. Additionally, the locking spring incorporates a bridge to protect contacts from external mechanical loads.
Operating within a temperature range of -40°C to 85°C, the MX34 connector is suited for demanding automotive environments. The grey color coding aids in cable identification, while the cable mount type allows straightforward installation in vehicle wiring systems.
The connector meets RoHS compliance standards, ensuring adherence to environmental and safety regulations. Typical applications include automotive electrical systems requiring a reliable, compact, and robust connector solution.
For compatible parts, MX34 contacts availability is indicated by the typical stock number 690-9893, and MX34 header connectors are available as 690-8935 (straight) and 690-8900 (90°) variants.
Compact design suitable for automotive board-to-cable connections. Durable nylon and polyphenylene ether housing with tin-plated contacts. Double locking mechanism for secure and reliable connection. Resistance to twisting with double leaf spring contact design.
Temperature range from -40°C to 85°C for versatile use. Rated for 3A current to support automotive electrical loads. Grey socket housing with 36 contacts arranged in 2 rows. RoHS compliant ensuring environmental and safety compliance.
Includes locking spring bridge to protect contacts from external forces. Compatible with MX34 contact and header parts for system integration. Explore the range of Automotive Connectors in EnvMart for robust connectivity solutions in automotive, industrial, and commercial electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for the MX34 connector is 85°C.
This model features 36 contacts arranged in 2 rows.
It is rated for a current of 3A.
The housing is made from nylon and polyphenylene ether, providing robust protection.
This connector uses crimp termination for secure electrical connections.
Yes, it is RoHS compliant, ensuring adherence to environmental safety standards.
The connector has a depth of 21.3mm and a width of 42.7mm.
This connector is female gendered.
It is suitable for automotive electrical systems requiring reliable board-to-cable connections.
Yes, it features a preset double locking mechanism to enhance connection reliability.
The minimum operating temperature is -40°C, making it suitable for diverse environments.
The socket housing is grey, which aids in cable identification.
