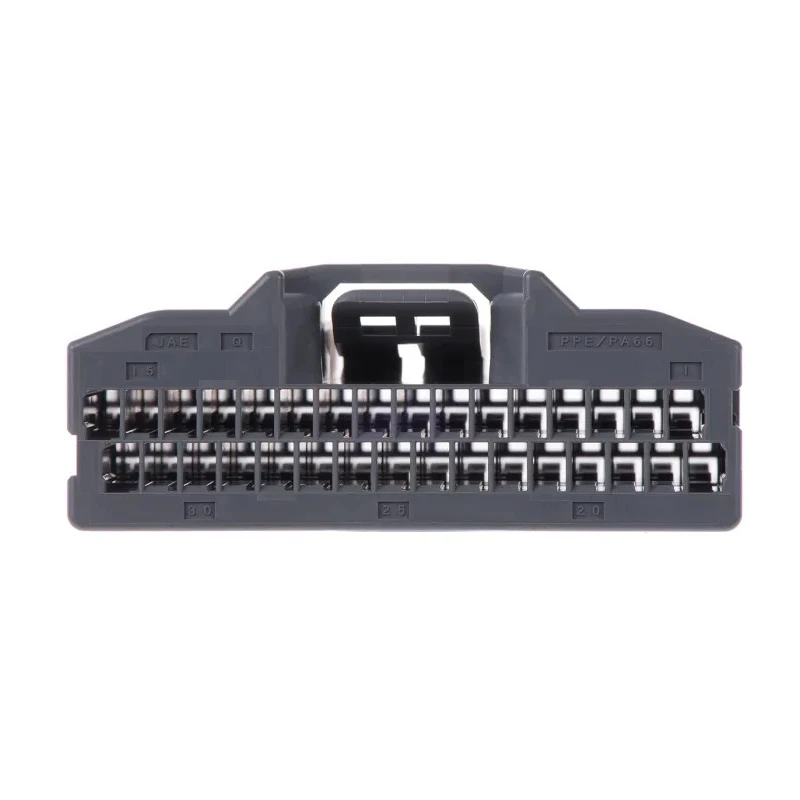

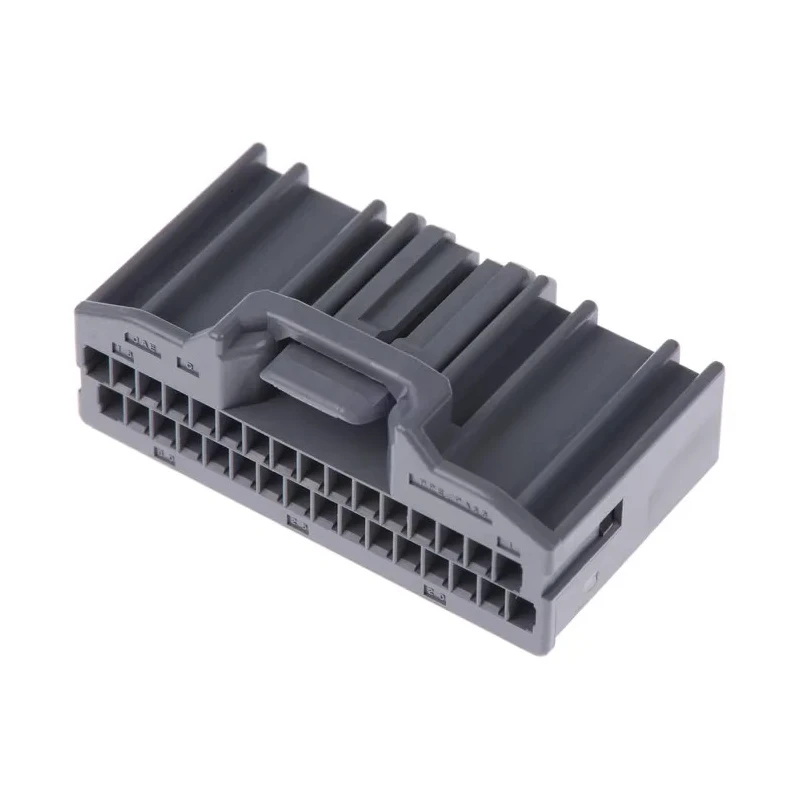

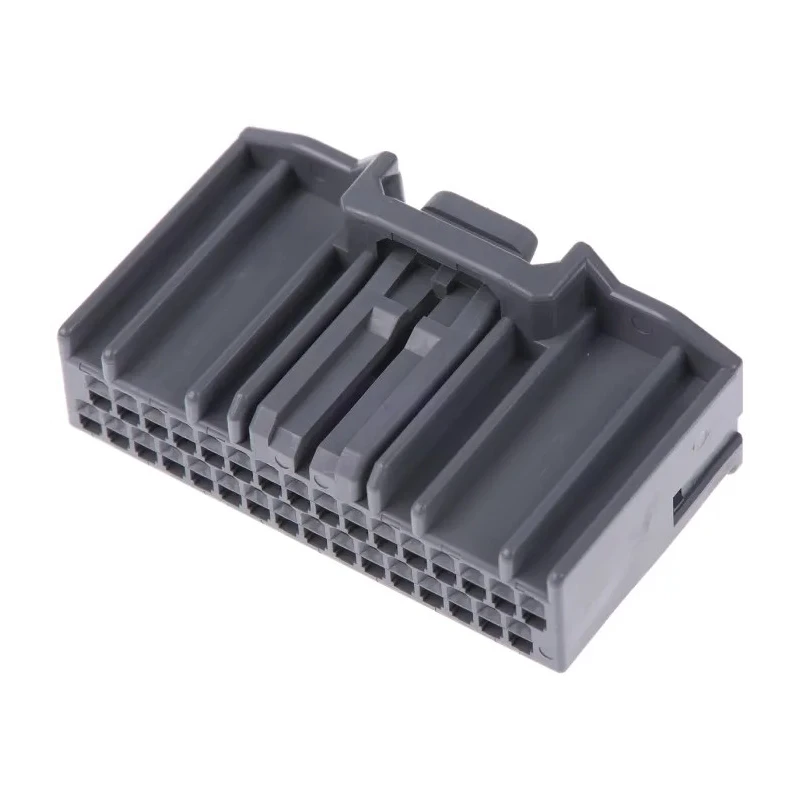

JAE MX34 Automotive Connector Female Grey Cable 32 Way Crimp Termination MX34032SF1

JAE MX34032SF1 Automotive Connector is a female socket housing designed specifically for automotive electrical systems. Featuring a cable mount style with 32 contacts arranged in two rows, this connector ensures reliable crimp termination and secure connections.

Constructed from polyphenylene ether and nylon, with tin-plated contacts, the connector is designed for durability and resistance to external mechanical stresses. It supports a current rating of 3A and operates reliably within the temperature range of -40°C to 85°C, suitable for demanding automotive environments.

The MX34 series connectors are compact and non-waterproof, engineered to reduce mating and unmating force to 80N or less, thus improving ease of assembly and serviceability. The double locking mechanism with a preset-type retainer ensures that all contacts are fully engaged before mating, preventing connection errors.

Contact design includes a box-type pin header and a robust lock spring to protect against external loads and twisting forces, enhancing connector longevity. This model complies with RoHS standards, meeting environmental regulations for hazardous substances.

The compact dimensions of 38.3mm width, 21.3mm depth, and 14mm height make it suitable for tight spaces in automotive harnesses. Typical compatible MX34 headers include stock numbers 690-8935 (straight) and 690-8900 (90°).

32 contacts in a 2-row configuration allow efficient electrical connections. Rated for 3A current with reliable tin-plated contacts. Constructed with durable polyphenylene ether and nylon housing materials. Operates reliably from -40°C to 85°C temperature range.

Incorporates a double locking mechanism and box-type pin header for secure mating. Compact dimensions of 38.3mm width, 21.3mm depth, and 14mm height. Termination by crimping to cable ensures solid and dependable connections.

Compliant with RoHS standards for environmental safety. Designed to meet automotive industry requirements for robustness and reliability. The preset-type retainer detects incomplete contact insertion for enhanced safety.

This connector is ideal for applications in automotive wiring harnesses, manufacturing assembly lines, and other environments requiring robust and reliable electrical connections. Browse EnvMart's full range of Automotive Connectors for compatible accessories and installation tools.
