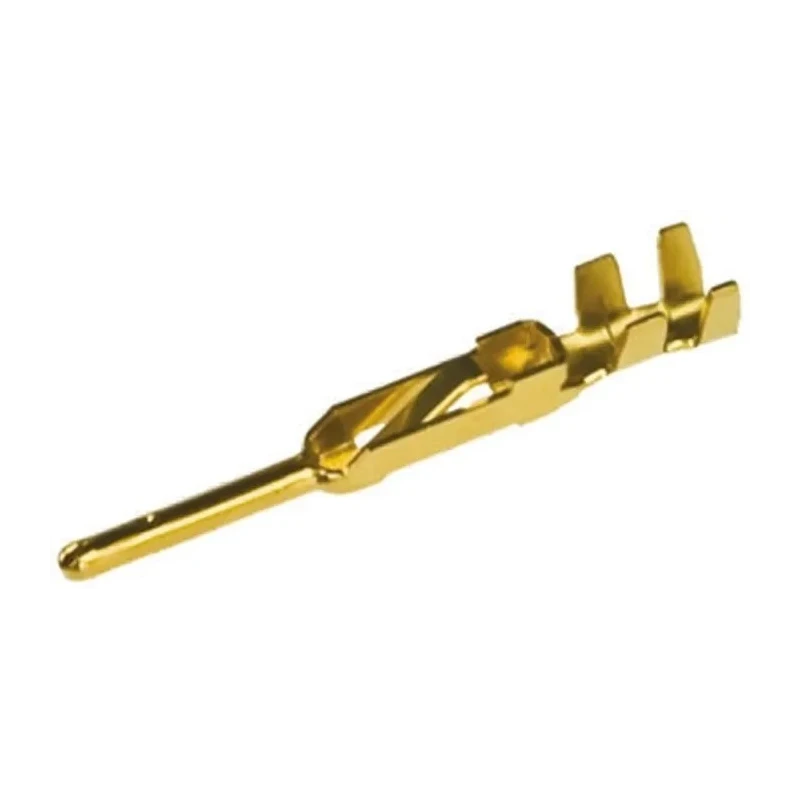

JAE Male Crimp Circular Connector Contact 3A 200V AC Gold over Nickel Plating JN1-22-22P-PKG100
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | JAE |
| Current | 3A |
| Length | 13.9mm |
| Model | JN1-22-22P-PKG100 |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | JN1 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Contact Type | Machined |
| Minimum Operating Temperature | -20°C |
| For Use With | JN1 Series Connectors |
| Contact Plating | Gold over Nickel |
Key Features
- Features machined contact type for reliable electrical connections.
- Constructed with copper alloy contact material ensuring durable performance.
- Gold over nickel plating enhances conductivity and corrosion resistance.
- Operates within a temperature range of -20°C to 125°C.
- Termination type is crimp, compatible with JN1 series connectors.
- Contact length measures 13.9 mm, suitable for precise installations.
- Provides protection against dust and water ingress with IP67-rated JN Series design.
- Designed with push and twist one-touch lock mechanism for secure mating.
Product Description
JAE JN1-22-22P-PKG100 Male Crimp Circular Connector Contact is engineered to support 3A current at 200V AC operation, providing an efficient and secure connection solution. This high-quality circular connector contact is designed for use with JN1 Series connectors and features a machined contact type for superior electrical performance. The contact is manufactured from durable copper alloy and features gold over nickel plating to enhance conductivity and resist corrosion.
The contact length of 13.9 mm facilitates precise and reliable installations in constrained spaces. With a termination type of crimp, this connector contact ensures a strong and lasting electrical joint. Operating temperature ranges from -20°C to a maximum of 125°C, making it suitable for various industrial environments.
This connector contact is part of JAE's JN Series, which includes IP67 rated components designed to be waterproof and dustproof. The series incorporates a push and twist one-touch lock mechanism, ensuring an easy and secure mating process, essential for demanding applications.
Typical applications include industrial electronics, power distribution, and other scenarios requiring reliable circular connector contacts capable of withstanding harsh environmental conditions.
Features machined contact for precision and reliability. Copper alloy construction with gold over nickel plating for durability. Rated for 3A current and 200V AC voltage. Supports operation from -20°C to 125°C temperatures.
Crimp termination compatible with JN1 series connectors. Designed for waterproof and dustproof performance (IP67 rated). Push and twist one-touch lock mechanism for easy mating. Contact length of 13.9 mm ensures precise fitment.
Ideal for industrial and electronic equipment connectivity. Explore the comprehensive range of Circular Connector Contacts and components on EnvMart for industrial electronics and power applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum voltage of 200V AC.
It supports a current capacity of 3A.
The contact length measures 13.9 mm, allowing for precise installations.
This unit features a crimp termination type, compatible with JN1 series connectors.
It is constructed from copper alloy and features gold over nickel plating to enhance conductivity and corrosion resistance.
It operates within a temperature range of -20°C to 125°C.
Yes, it is part of the JN Series, which is IP67 rated for dust and water ingress protection.
It is designed with a push and twist one-touch lock mechanism for secure mating.
This contact is specifically designed for use with JN1 series connectors.
The country of origin for this connector contact is India.
It features a machined contact type for reliable electrical connections.
Typical applications include industrial electronics, power distribution, and scenarios requiring reliable circular connections in harsh environments.
