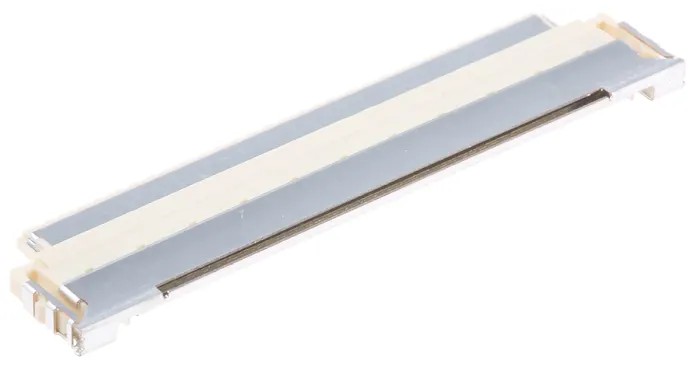

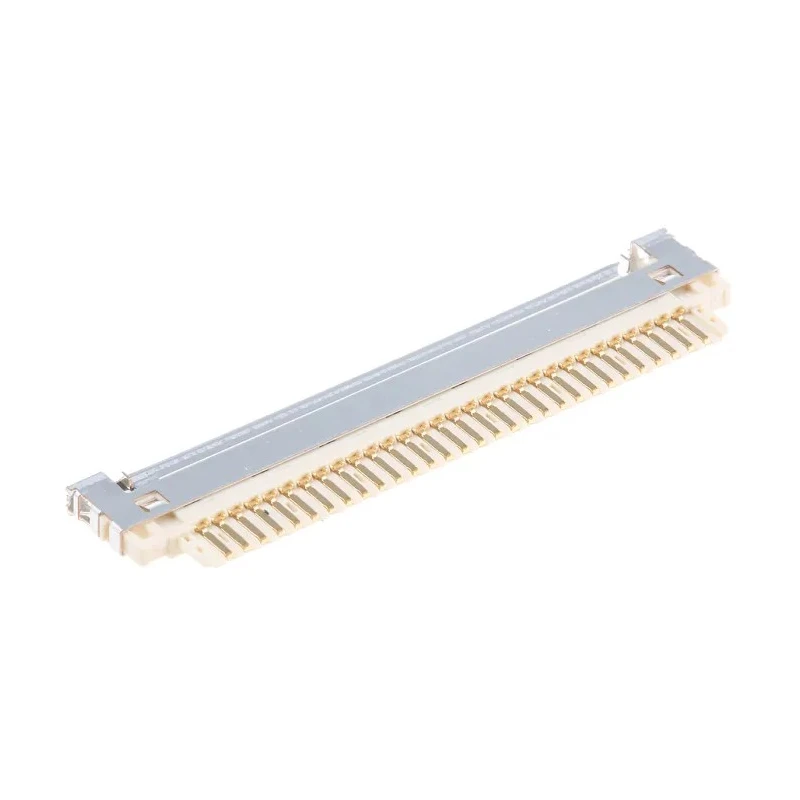

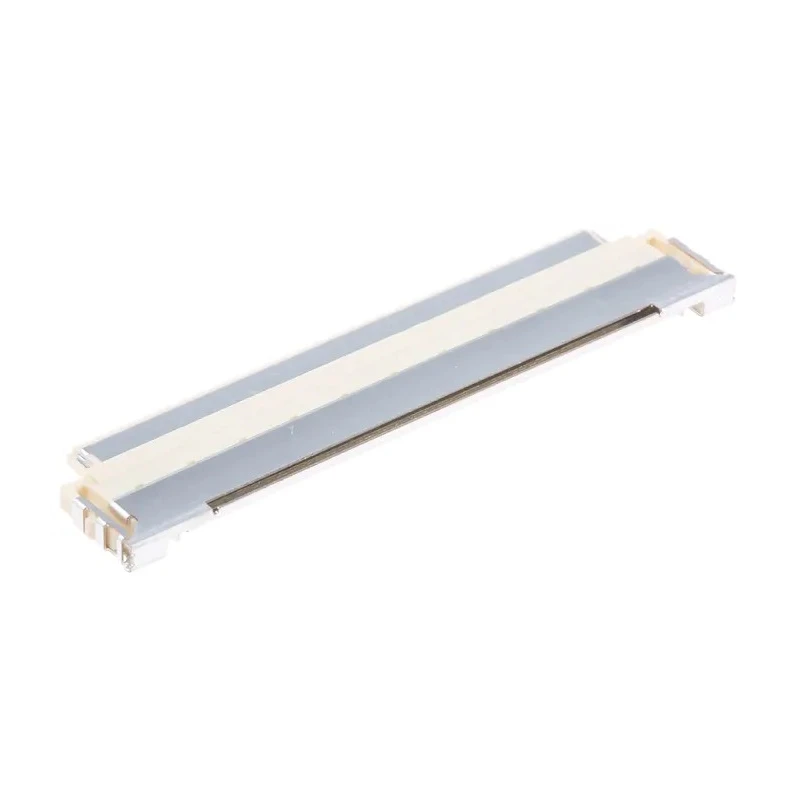

JAE FI-X 1 mm Pitch 30 Way 1 Row Straight Cable LVDS Connector FCP Plug Push-in FI-X30M-NPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Orientation | Straight |
| Model | FI-X30M-NPB |
| Mount Type | Cable |
| Housing Material | Nylon |
| Contact Material | Copper Alloy |
| Series | FI-X |
| Termination Type | Push-in |
| Sub Type | FCP Plug |
| Number of Rows | 1 |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 30 |
| Housing Colour | Beige |
Key Features
- Designed for board to cable connection supporting Low Voltage Differential Signalling transmissions.
- Features 30 contacts in a single row with straight cable orientation.
- Durable nylon beige housing with copper alloy contacts for optimal conductivity.
- Push-in termination ensures secure contacts and easy assembly.
- Complies with RoHS standards ensuring environmental safety.
- Part of the FI-X series suited for applications in LCD, PDP, and rear projection devices.
- Compatible with high-speed differential transmission impedance of 90 to 100 Ohms.
- Latching version available for improved mechanical retention under vibration conditions.
Product Description
The JAE FI-X30M-NPB LVDS Connector is a high-performance cable connector designed for precise and reliable board-to-cable connections with a 1 mm pitch and 30 contacts in a single row. This straight orientation FCP plug offers push-in termination, facilitating ease of installation and firm contact retention.
Manufactured with a beige nylon housing and copper alloy contacts, it ensures excellent durability and electrical conductivity. The FI-X series is engineered to support Low Voltage Differential Signalling (LVDS), making it ideal for modern digital devices such as LCD displays, plasma display panels (PDP), and rear projection equipment.
This connector supports differential transmission characteristics compatible with 90 to 100 Ohm impedance, ensuring high fidelity data transmission in sensitive electronic applications. Shielded and latch versions provide enhanced electromagnetic interference (EMI) protection and mechanical stability for environments subjected to vibration.
Designed according to RoHS requirements, the connector meets environmental and safety regulations, making it suitable for a variety of industrial, commercial, and consumer electronics applications.
Applications include interfaces for LCDs as standardized by VESA, high-speed data communication in multimedia devices, and reliable signal connections in embedded electronics. Designed for board-to-cable LVDS transmissions with 30 contacts.
Durable nylon housing with copper alloy contacts for optimal performance. Push-in termination type for secure and easy connection. Meets RoHS compliance for environmental safety. Suitable for high-speed digital display equipment like LCD and PDP.
Offers latching and shielded options for enhanced reliability. Explore the comprehensive range of LVDS Connectors and electronics components from EnvMart for industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 30 contacts in a single row, designed for board-to-cable connections.
The pitch of this connector is 1 mm, which is standard for its design.
It utilizes a push-in termination type, ensuring secure and easy connections during installation.
The connector features a nylon housing and copper alloy contacts, providing durability and optimal conductivity.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
This connector has a straight orientation, suitable for various cable applications.
It is ideal for use in LCD displays, plasma display panels (PDP), and rear projection equipment, supporting Low Voltage Differential Signalling (LVDS).
The housing color of this model is beige, which is typical for its design.
It is designed for cable mounting, facilitating easy installation in various applications.
This connector is part of the FI-X series, which is designed for high-performance applications.
It supports a differential transmission impedance of 90 to 100 Ohms, ensuring high fidelity data transmission.
Yes, there are latching versions available that provide improved mechanical retention under vibration conditions.
