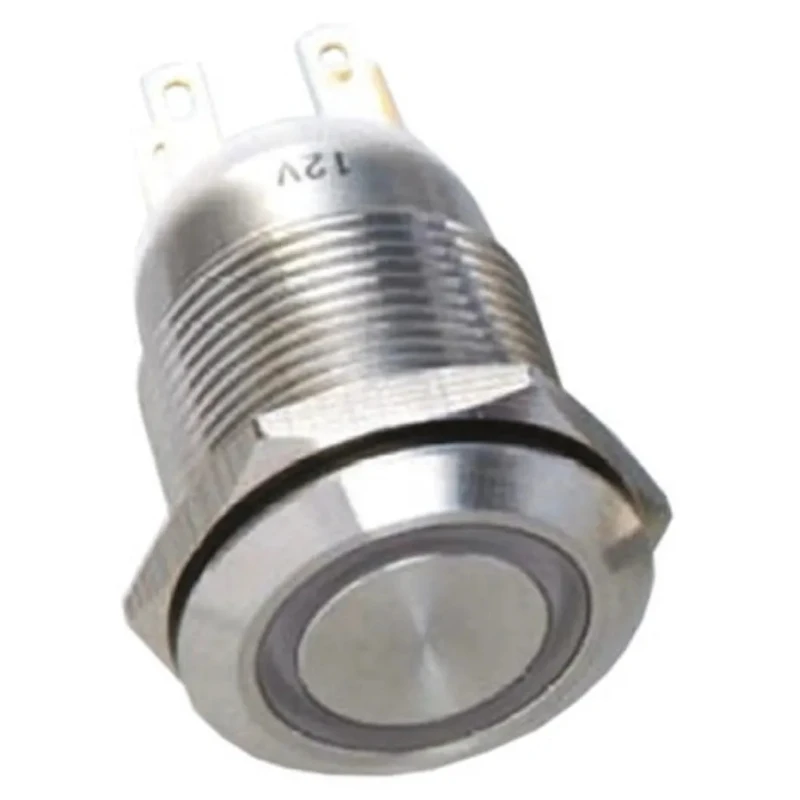

EOZ R Series Illuminated Push Button Switch Panel Mount Momentary SPDT White LED IP65 250V AC R19FFSSPAGRW220
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R19FFSSPAGRW220 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19.2 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| LED Colour | White |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Button |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
| EOZ Illuminated Push Button Switch, Panel, 19 mm Cutout Silver, SPDT, IP65Brand | EOZ |
Key Features
- Designed for vandal resistance with IK09 impact protection.
- Suitable for panel mounting using a 19.2 mm cutout size.
- Momentary switch operation with single pole double throw (SPDT) contact configuration.
- Equipped with white LED illumination for visual status indication.
- Rated to operate between -20°C and 55°C ambient temperatures.
- Ingress protection rated at IP65 for dust tight and water jet protection.
- Supports solder-type terminal connections for secure wiring.
- Certified RoHS compliant ensuring environmental safety.
Product Description
The EOZ R19FFSSPAGRW220 is a high-quality illuminated push button switch designed for panel mounting with a 19.2 mm cutout diameter. It features a momentary operation switch with SPDT contact configuration and a white LED illumination that activates when pressed, offering clear visual feedback in electrical control systems.
This R Series push button is constructed to withstand heavy use in demanding industrial environments, featuring vandal resistance with IK09 impact rating (resistant to a 5 kg mass dropped from 200 mm), ensuring durability and reliability in exposed public areas and machinery.
The switch is sealed with an IP65 rating, offering complete protection against dust ingress and water jets from all directions, suitable for outdoor or harsh industrial applications. It supports a wide temperature range from -20°C to 55°C, making it versatile in different climates and conditions.
Equipped with solder terminal type connections, installation is secure and reliable. It is RoHS compliant, ensuring adherence to hazardous substances regulations.
Typical applications include access control systems, factory automation equipment, ticket vending machines, kiosks, and other public-facing electrical panels requiring robust, illuminated control interfaces.
Vandal resistant push button with IK09 impact protection. Panel mounting design for 19.2 mm cutouts. Momentary switch operation, SPDT contact configuration. White LED illumination for on-press indication. IP65 rated for dust and water jet protection.
Operating temperature range of -20°C to +55°C. Solder terminal type for secure wiring. RoHS compliant for environmental safety. Ideal for industrial, access control, and public equipment. Long service life in aggressive environments.
This push button switch is an essential component in industrial control panels and automation systems, delivered with the quality and reliability expected from EOZ brand products. Explore more from EOZ and Push Button Switches at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The push button switch has an IP65 rating, which means it is dust tight and protected against water jets from all directions.
It operates between -20°C and 55°C, making it suitable for various environmental conditions.
This model features a single pole double throw (SPDT) contact configuration.
The required cutout size for panel mounting is 19.2 mm.
It supports solder-type terminal connections for secure wiring.
The switch contact current is rated at 5A.
The LED illumination is white, providing clear visual feedback when the button is pressed.
The actuator style is a button, and it is silver in color.
Yes, it is RoHS compliant, ensuring adherence to hazardous substances regulations.
It uses a momentary switch operation, meaning it only remains active while being pressed.
Typical applications include access control systems, factory automation equipment, and public-facing electrical panels.
The country of origin for this push button switch is France.
