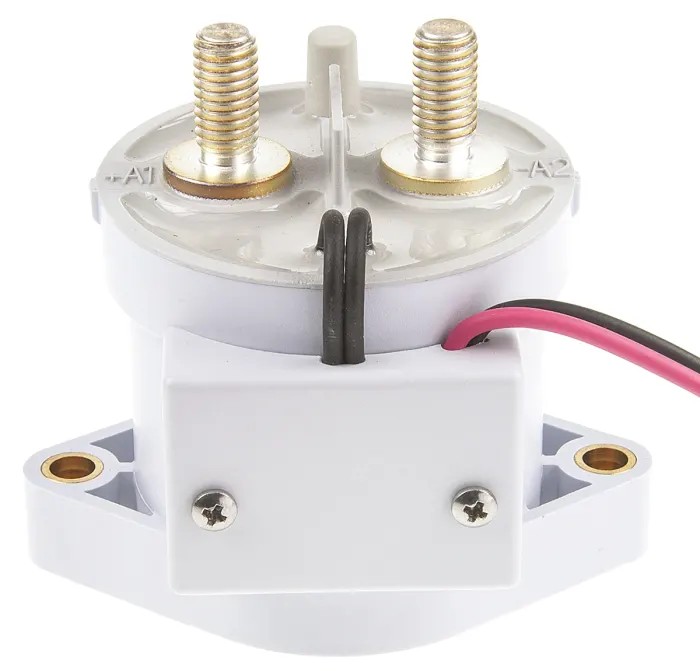

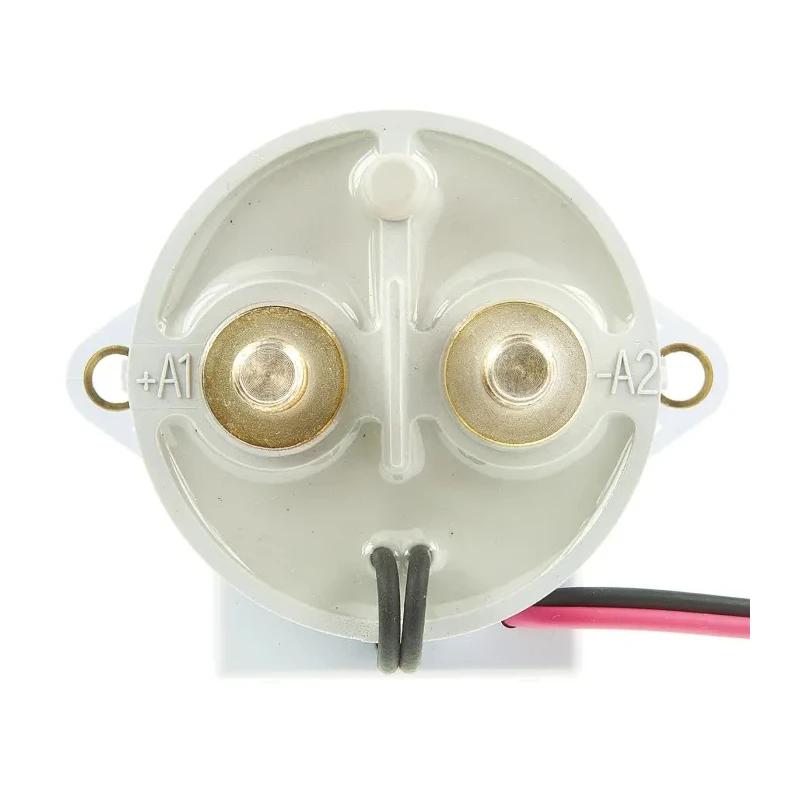

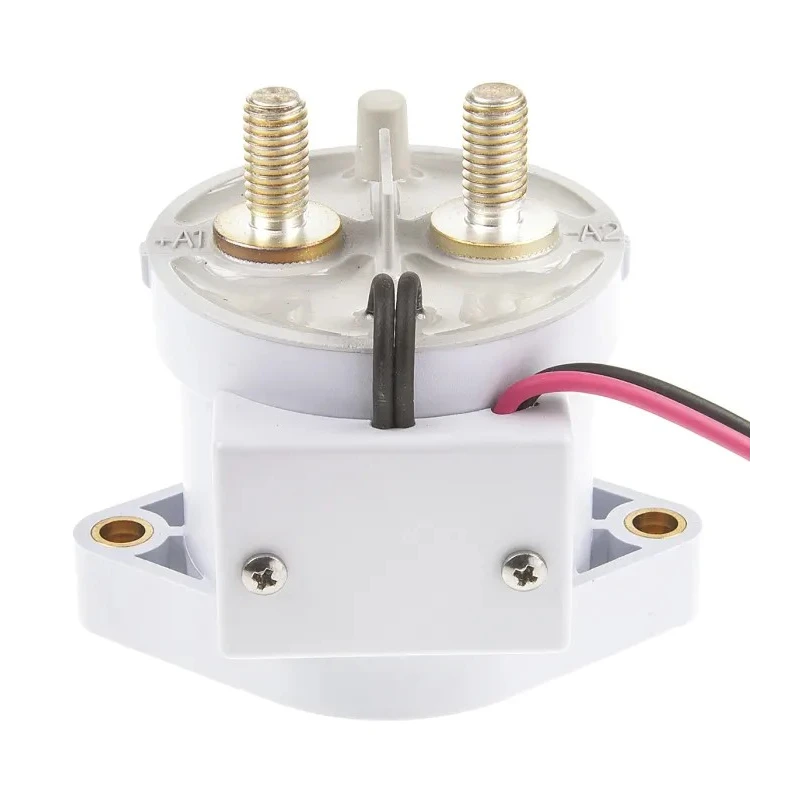

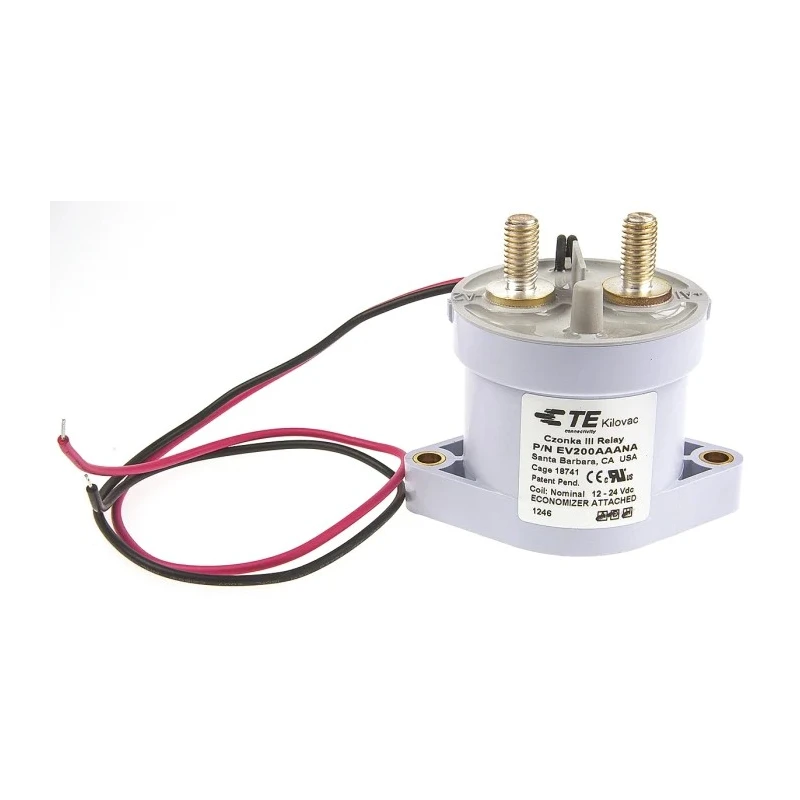

TE Connectivity EV200 Contactor 36V DC, 9V DC Coil, 1-Pole, 500A Contact Current, 900V Contact Voltage EV200
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Function | 1 NO/1 NC, 1 NO |
| Length | 80.48mm |
| Model | EV200 |
| Depth | 65.6mm |
| Mount Type | Flange |
| Series | EV200 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Typical Applications | battery switching and back up, DC voltage power control, circuit protection and safety |
| Number of Poles | 1 |
| Standards/Approvals | IEC 60947-4-1, RoHS, UL (File E208033), AIAG QS9000, CE |
| Contact Voltage | 900V |
| Coil Voltage | 36, 9V dc |
| Normal State Configuration | 1 NO |
| Contact Current | 500A |
| Number of Auxiliary Contacts | 1 |
| Operational Current Ie | 500A |
| Control Circuit Voltage Uc | 900V |
| Contactor Application | DC Contactor |
| Pole and Throw Configuration | SPNO |
| TE Connectivity EV200 Contactor, 36V Coil, 1-Pole, 500 A, NO, 900VBrand | TE Connectivity |
Key Features
- The contactor features a flange mount type with screw terminals for secure installation.
- It has one normally open (1 NO) contact configuration with one auxiliary contact for control circuits.
- Operational current Ie is rated at 500A with a control circuit voltage of 900V.
- Temperature operation range is from -40°C minimum to a maximum of 85°C ensuring reliability in harsh environments.
- The compact design includes dimensions of 80.48mm length and 65.6mm depth for space-efficient use.
- It is hermetically sealed for durability and offers up to 2000A interrupt capacity at 320V DC.
- The built-in coil economiser reduces hold power consumption to 1.7W at 12V DC enhancing energy efficiency.
- Typical applications include battery switching, backup power, DC voltage control, circuit protection, and safety systems.
Product Description
TE Connectivity EV200 Contactor is a robust and high-performance DC contactor model EV200, featuring a 36V DC coil voltage and an auxiliary 9V DC coil. This 1-pole contactor is suitable for demanding electrical applications with a contact voltage rating of 900V and contact current capacity of 500A.
Designed for industrial and commercial electrical automation, this device offers reliable switching for battery backup systems, DC voltage power control, and circuit protection. It features a flange mount type and screw terminals, providing a secure and convenient installation option for complex electrical setups.
Constructed with hermetically sealed contacts, it prevents contamination and ensures long operational life. The device includes a built-in coil economiser to maintain low hold power consumption, improving energy efficiency and reducing operating costs.
The EV200 contactor is rated for an operational current Ie of 500A and is capable of interrupting 2000A at 320V DC, meeting IEC 60947-4-1 standards along with UL, RoHS, AIAG QS9000, and CE certifications. It is engineered to operate reliably in a temperature range from -40°C up to +85°C, making it suitable for harsh environments.
The compact dimensions - 80.48mm length and 65.6mm depth - allow easy integration into electrical panels. This contactor is optimized for applications requiring high voltage and current switching such as battery switching and backup, DC voltage control, and critical safety and protection circuits.
The contactor features a flange mount type with screw terminals for reliable connections. Single pole design with a normally open contact configuration and one auxiliary contact. Rated for 500A contact current and 900V contact voltage for demanding DC applications.
Built-in coil economiser reduces power consumption during operation. Hermetically sealed construction enhances durability and performance. Standards compliant with IEC 60947-4-1, UL, RoHS, AIAG QS9000, and CE. Wide ambient operating temperature from -40°C to +85°C suitable for industrial use.
This TE Connectivity EV200 Contactor is an ideal solution for industrial, manufacturing, electrical automation, HVAC, and water treatment applications requiring reliable DC contact switching with energy-efficient design. Explore more in the Automation & Control Gear category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The EV200 contactor has a contact current rating of 500A, making it suitable for demanding DC applications.
This model is rated for a maximum contact voltage of 900V, allowing it to handle high voltage applications effectively.
The contactor features a coil voltage of 36V DC and an auxiliary coil voltage of 9V DC for control circuits.
The dimensions of the EV200 contactor are 80.48mm in length and 65.6mm in depth, allowing for compact installation.
It utilizes a flange mount type with screw terminals, ensuring secure installation in various applications.
The operational temperature range for the EV200 contactor is from -40°C to +85°C, making it suitable for harsh environments.
This contactor has an interrupt capacity of up to 2000A at 320V DC, providing robust performance for circuit protection.
The EV200 contactor is designed as a 1-pole unit with a normally open contact configuration.
It complies with several standards including IEC 60947-4-1, UL, RoHS, AIAG QS9000, and CE, ensuring its reliability and safety.
Typical applications include battery switching, backup power, DC voltage control, circuit protection, and safety systems.
The contactor features one normally open (1 NO) contact configuration along with one auxiliary contact for control circuits.
The built-in coil economiser reduces hold power consumption to 1.7W at 12V DC, enhancing energy efficiency during operation.
