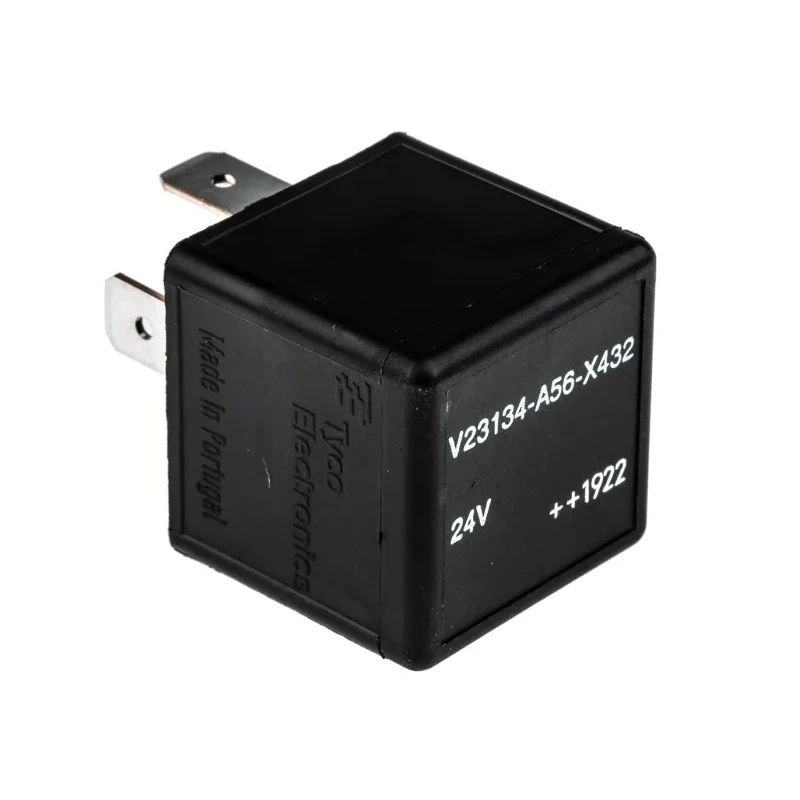

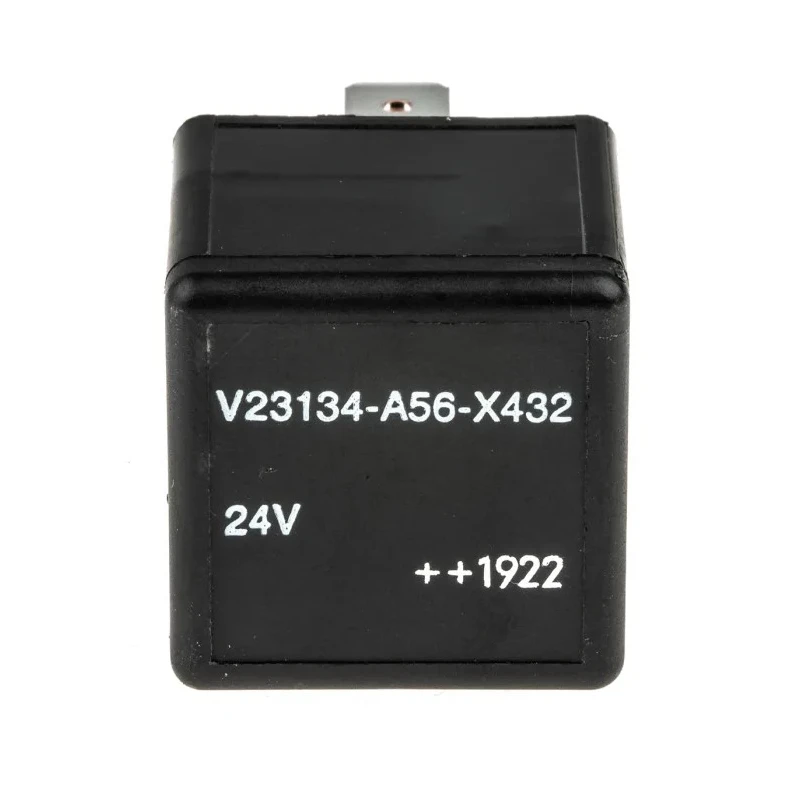

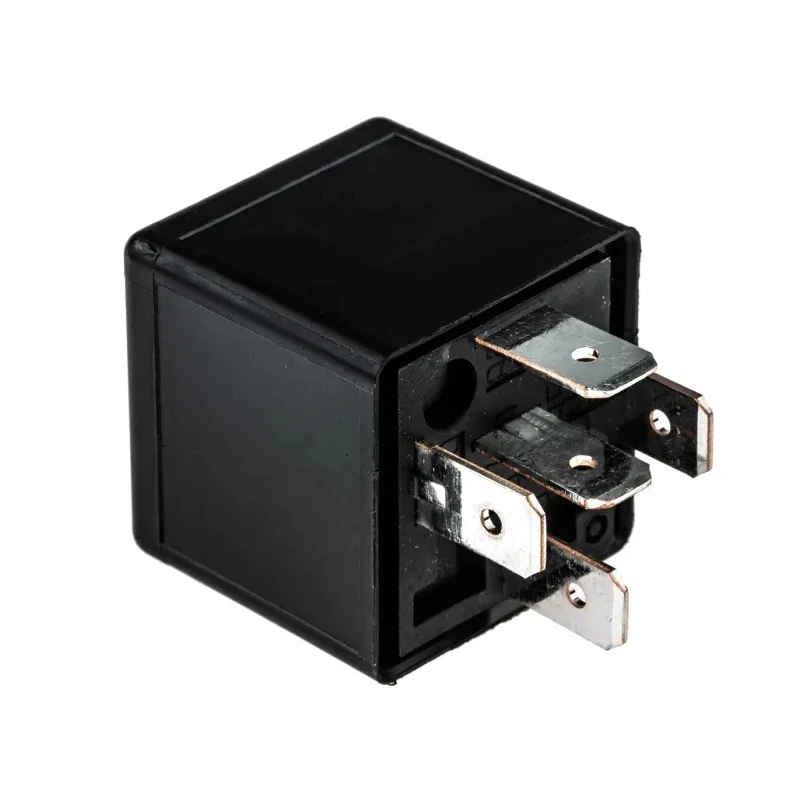

TE Connectivity Automotive Relay, 24V DC Coil Voltage, 40A Switching Current, SPDT, F4 Series V23134A0056X432 1-1414167-0
Specifications
| Country of Origin | Portugal |
|---|---|
| Brand | TE Connectivity |
| Height | 24.9mm |
| Length | 25.9mm |
| Model | V23134A0056X432 1-1414167-0 |
| Depth | 25.9mm |
| Contact Material | Silver Alloy |
| Series | F4 |
| Maximum Operating Temperature | 125°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Quick Connect |
| Number of Poles | 1 |
| Coil Resistance | 268Ω |
| Coil Power | 1.6W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- The relay features a coil power rating of 1.6W for efficient operation.
- Coil resistance is precisely 268Ω ensuring consistent coil activation.
- Silver alloy contact material provides excellent conductivity and durability.
- Specified operating temperature range from -40°C to 125°C supports automotive environmental conditions.
- Compact dimensions of 25.9mm length, 24.9mm height, and 25.9mm depth allow space-saving installation.
- Quick connect terminal type enables fast and secure electrical connections.
- Integrated coil to contact isolation rating of 500Vrms ensures safe operation in automotive circuits.
- F4 Series Mini ISO design provides IP54 dust protection for automotive applications.
Product Description
TE Connectivity V23134A0056X432 1-1414167-0 is a robust automotive relay from the F4 Series Mini ISO lineup, designed for automotive electrical control systems requiring a 24V DC coil voltage and capable of switching currents up to 40A in a SPDT contact configuration.
This relay offers a coil power consumption of just 1.6W with a coil resistance of 268Ω, ensuring effective electromagnetic actuation. The silver alloy contact material ensures long-lasting reliable electrical conduction under heavy automotive load conditions. The compact relay dimensions (25.9mm length, 24.9mm height, and 25.9mm depth) enable it to fit in constrained automotive electrical assemblies.
The relay features quick connect terminals for ease of installation and an isolation rating of 500Vrms between coil and contacts, ensuring electrical safety and EMI protection. Its operating temperature range spans from -40°C to 125°C, making it suitable for harsh automotive environments.
Designed to meet dust protection standards of IP54, the F4 Series relays are well-suited for ignition lock circuits, lamp loads such as headlamps, exhaust emission control systems, ABS modules, fuel pump control, electric power steering units, wiper control systems, car alarms, and blower fans. The relay supports reliable and efficient switching for critical automotive electrical components.
This product is manufactured in Portugal, assuring high quality and compliance with automotive standards. It offers integrated component design with various contact arrangements for versatile automotive applications.
The relay features a coil power rating of 1.6W for efficient operation. Coil resistance is precisely 268Ω ensuring consistent coil activation. Silver alloy contact material provides excellent conductivity and durability.
Specified operating temperature range from -40°C to 125°C supports automotive environmental conditions. Compact dimensions of 25.9mm length, 24.9mm height, and 25.9mm depth allow space-saving installation. Quick connect terminal type enables fast and secure electrical connections.
Integrated coil to contact isolation rating of 500Vrms ensures safe operation in automotive circuits. F4 Series Mini ISO design provides IP54 dust protection for automotive applications. Widely used in ignition systems, headlamp loads, ABS, fuel pumps, electric power steering, and blower control.
Explore more Automotive Relays and electrical components for industrial, automotive manufacturing, and vehicle maintenance applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive relay can switch currents up to 40A.
The relay operates with a coil voltage of 24V DC.
It features a coil power rating of 1.6W for efficient operation.
The relay has a Single Pole Double Throw (SPDT) contact configuration.
The compact dimensions are 25.9mm in length, 24.9mm in height, and 25.9mm in depth.
The coil resistance is precisely 268Ω, ensuring consistent coil activation.
The relay has an integrated coil to contact isolation rating of 500Vrms for safe operation.
It operates within a temperature range of -40°C to 125°C, suitable for automotive conditions.
This model features quick connect terminals for fast and secure electrical connections.
The contacts are made of silver alloy, providing excellent conductivity and durability.
This relay is manufactured in Portugal, ensuring compliance with automotive standards.
It is widely used in ignition systems, headlamp loads, ABS, fuel pumps, electric power steering, and blower control.
