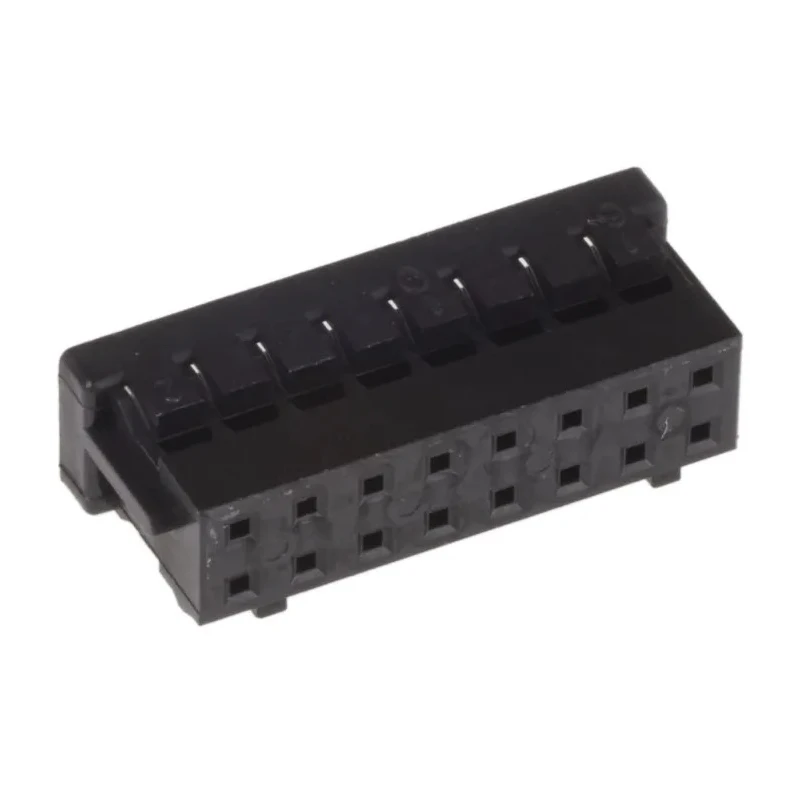

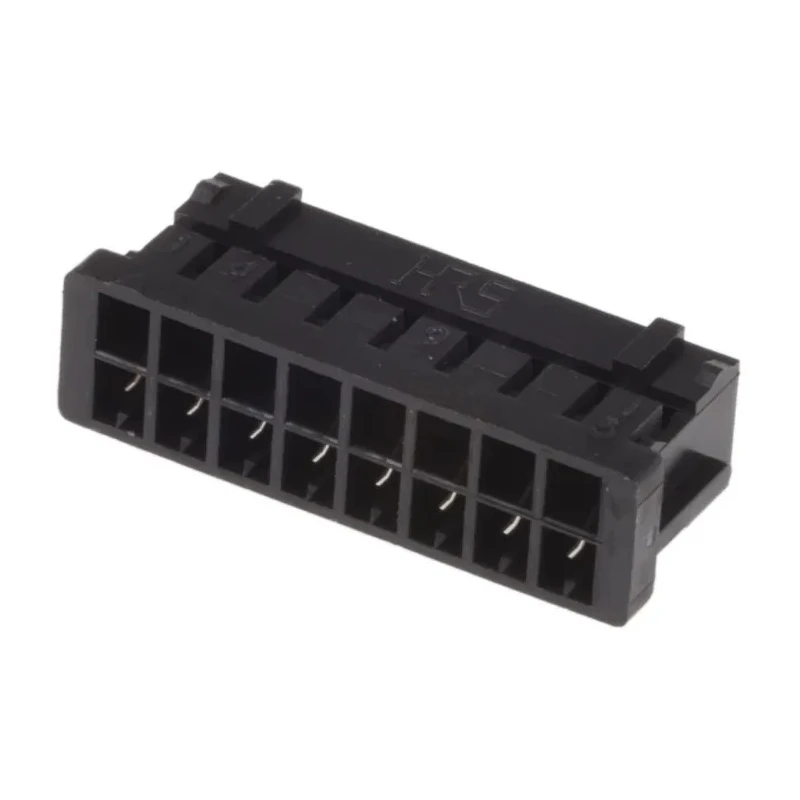

Hirose DF11 Female Connector Housing, 2 mm Pitch, 16 Way, 2 Row Straight

Free Delivery in India | Lowest Global Shipping Charges

Hirose DF11 Female Connector Housing, 2 mm Pitch, 16 Way, 2 Row Straight

Name: Hirose DF11 Female Connector Housing, 2 mm Pitch, 16 Way, 2 Row Straight
Brand: Hirose
SKU: 212540



Category Connector Housing Brand Hirose Condition New

Specifications

Country of Origin	Japan
Brand	Hirose
Orientation	Straight
Length	18mm
Model	DF11
Width	5mm
Mount Type	Cable
Housing Material	Polyamide
Series	DF11
Number of Rows	2
Pitch	2mm
For Use With	DF11 Series
Number of Contacts	16
Connector Gender	Female

Key Features

The compact design allows double row contacts in the space of a single row housing.
Constructed from durable polyamide housing material for reliable performance.
Includes guide ribs preventing incorrect insertion and twisting during mating.
Locking mechanism ensures a secure connection to compatible DF11 series headers.
Orientation is straight with cable mount type, suitable for various electronics applications.
Perfect for portable devices requiring multiple signal connections in limited space.
Compatible with the DF11 series PCB header connectors; contacts sold separately.
Manufactured in Japan, ensuring high quality and reliability.

Product Description

Hirose DF11-16DS-2C female connector housing is a high-quality 2 mm pitch connector designed with 16 contacts arranged in two compact rows. This innovative double row design enables accommodation of more contacts within the same limited space as a single row housing, making it ideal for space-constrained applications.

Constructed with polyamide housing material, this connector offers robustness and durability for demanding industrial and electronic uses. The housing incorporates guide ribs that prevent incorrect insertion and twisting during assembly, enhancing reliability and reducing installation errors.

The locking mechanism integrated into the design provides a secure mating connection, ensuring stable performance in various environments. This straight orientation cable mount connector is compatible with the DF11 series PCB header connectors; note that contacts must be purchased separately as they are not included.

Typical applications for the Hirose DF11 series female connector housing include portable electronics, digital cameras, LCD displays, digital video recorders, automotive navigation systems, access control units, and measurement devices, where multiple signals need to be handled effectively within a compact footprint.

The compact design allows double row contact configuration in the space of a single row housing. Durable polyamide housing for industrial and commercial electronics. Guide ribs prevent incorrect insertion and twisting during mating.

Locking mechanism ensures a secure and reliable connection. Straight orientation for cable mounting in DF11 series systems. Ideal for electronics requiring multiple signal connections in a limited space. Compatible with DF11 PCB header connectors; contacts are sold separately.

Manufactured in Japan for superior quality assurance. Explore more Connector Housing solutions and electronic components at EnvMart to meet your industrial, electronics manufacturing, and commercial requirements.
