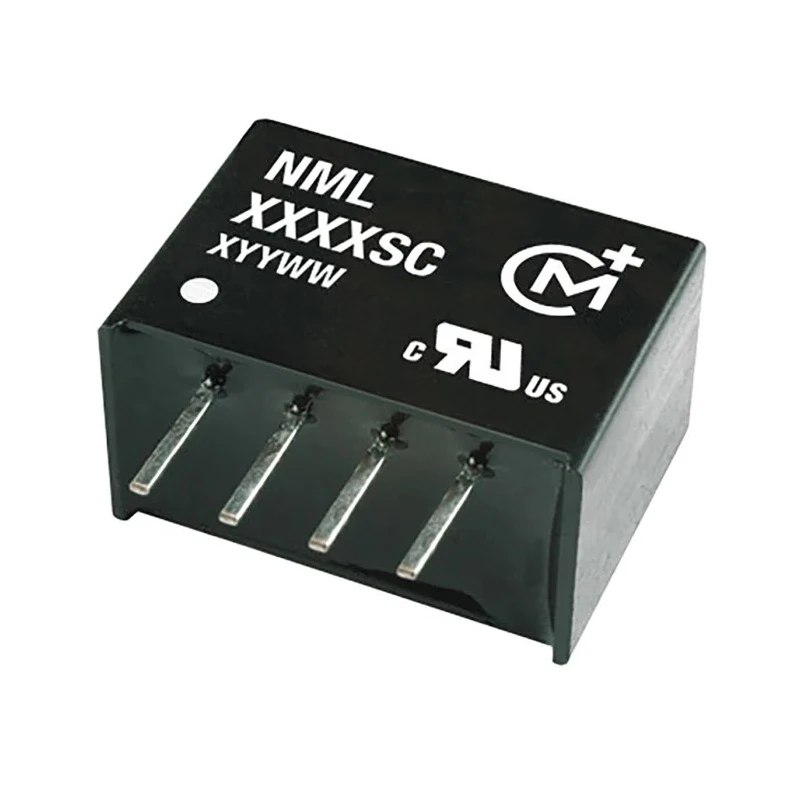

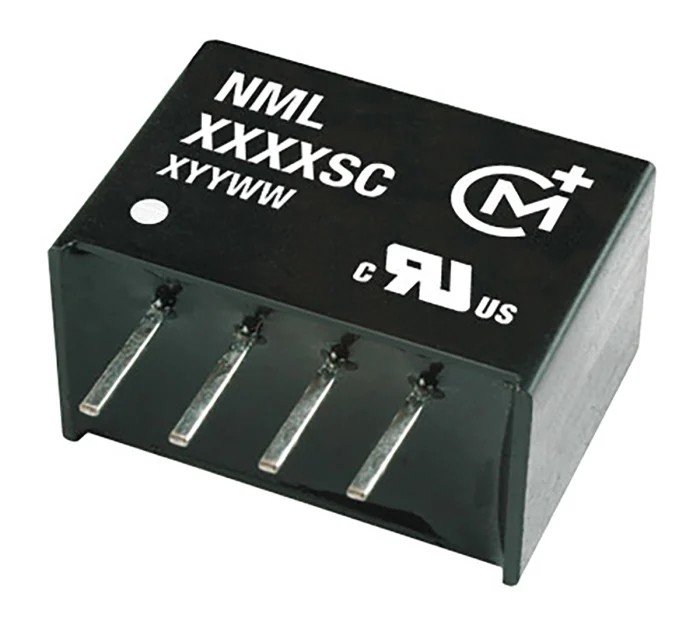

Murata Power Solutions NML Series 2W SIP Single Output Unregulated Isolated DC-DC Converter, 15V DC Output, 133mA NML0515SC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NML DC/DC Converter, 15V dc |
| Brand | Murata Power Solutions |
| Efficiency | 83% |
| Length | 14mm |
| Model | NML0515SC |
| Depth | 10mm |
| Gross Weight | 2g |
| Width | 14mm |
| Mount Type | Through Hole |
| Series | NML |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 481000h |
| Number of outputs | 1 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 4 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 133mA |
| Isolation Voltage | 1kV dc |
Key Features
- This converter operates with an input voltage range of 4.5V to 5.5V DC.
- It features high efficiency of 83% ensuring optimal power conversion.
- The device offers 1kV DC isolation voltage suitable for industrial safety standards.
- Designed for rugged applications with operating temperatures from -40°C to 85°C.
- The compact SIP package measures 14mm x 14mm x 10mm with a weight of 2 grams.
- Its fully encapsulated UL 94V-0 rated package ensures durability and reliability.
- The product has a mean time between failures (MTBF) of 481000 hours, reflecting high reliability.
- Ripple and noise are limited to 200mV peak-to-peak, suitable for sensitive electronics.
Product Description
Murata Power Solutions NML0515SC is a 2W SIP single output unregulated isolated DC-DC converter that delivers a stable 15V DC output at 133mA from an input range of 4.5V to 5.5V DC. It is designed with a through-hole mount in a compact SIP (single in-line package) which measures 14mm length, 14mm width, and 10mm depth, weighing only 2 grams.
This converter offers an excellent efficiency of 83% and isolation voltage of 1kV DC, making it suitable for industrial and electronic power applications requiring electrical isolation and safety compliance. It is fully encapsulated with UL 94V-0 flame retardant material providing robustness and reliability.
Operating across a wide temperature range from -40°C to 85°C, this device is optimal for use in harsh environments including industrial controls, instrumentation, power supplies, telecommunications, and embedded systems.
With a ripple and noise rating of 200mV peak-to-peak, the converter supports sensitive circuits, ensuring noise does not impact device performance. It features unbalanced loading capability and has a long MTBF of 481000 hours, indicating dependable long-term operation.
Murata Power Solutions NML0515SC is RoHS compliant and originates from China. This product is ideal for engineers and designers requiring a compact, reliable DC-DC converter meeting stringent industrial standards.
This converter operates with an input voltage range of 4.5V to 5.5V DC. It features high efficiency of 83% ensuring optimal power conversion. The device offers 1kV DC isolation voltage suitable for industrial safety standards.
Designed for rugged applications with operating temperatures from -40°C to 85°C. The compact SIP package measures 14mm x 14mm x 10mm with a weight of 2 grams. Its fully encapsulated UL 94V-0 rated package ensures durability and reliability.
The product has a mean time between failures (MTBF) of 481000 hours, reflecting high reliability. Ripple and noise are limited to 200mV peak-to-peak, suitable for sensitive electronics. It supports unbalanced loading capability for varied output demands.
This DC-DC converter is RoHS compliant and made in China. Explore more DC/DC Converters and power management solutions at EnvMart, your trusted source for quality electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is 4.5V to 5.5V DC.
This converter provides a stable output voltage of 15V DC at a current of 133mA.
The efficiency of the NML0515SC is rated at 83%, ensuring optimal power conversion.
The SIP package measures 14mm in length, 14mm in width, and 10mm in depth.
The device offers an isolation voltage of 1kV DC, suitable for industrial safety standards.
It operates within a temperature range of -40°C to 85°C, making it suitable for rugged applications.
The ripple and noise are limited to 200mV peak-to-peak, which is suitable for sensitive electronics.
The MTBF for the NML0515SC is 481,000 hours, indicating high reliability.
This model is designed for through-hole mounting.
Yes, the NML0515SC is RoHS compliant, meeting environmental standards.
The maximum output power of this converter is 2W.
This model has a single output.
