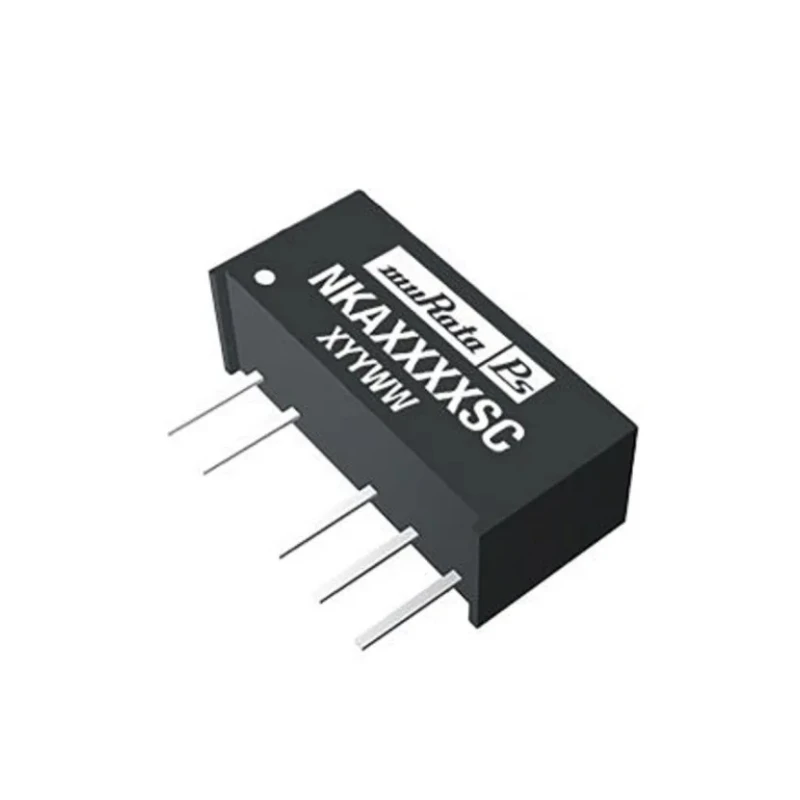

Murata Power Solutions Dual Output 3W DC/DC Converter, 5V dc/100 mA, -5V dc Output, 10.8-13.2V dc Input, Through NKA1205SC

Murata Power Solutions NKA1205SC is a highly reliable dual output DC/DC converter rated at 3 W power with outputs of 5 V dc at 100 mA and -5 V dc, making it suitable for various electronic applications requiring isolated voltage sources. This converter operates with an input voltage range of 10.8 V to 13.2 V dc, allowing integration with diverse power supply systems.

It features a through hole SIP package type with 6 pins, facilitating easy mounting on printed circuit boards. The converter ensures a high isolation voltage of 3 kV dc, which minimizes electrical interference and enhances system safety in sensitive industrial and commercial electronic equipment.

The NKA1205SC offers a ripple and noise level of 75 mV peak-to-peak, supporting clean and stable voltage output necessary for precision electronics. It operates efficiently at 74% efficiency and can withstand ambient temperatures ranging from -40°C to 85°C, making it ideal for demanding industrial environments and temperature-variant conditions.

Rated for a mean time between failures (MTBF) of approximately 559,000 hours, this product guarantees excellent longevity and reliability. Its small form factor, measuring 16.5 mm in length, 5.4 mm in width, and 7.55 mm in depth, along with a lightweight design of 1.4 grams, makes it well suited for compact electronic assemblies.

This converter complies with RoHS environmental standards, supporting greener manufacturing practices. Its application domains include industrial control systems, telecommunications, instrumentation, and embedded computing, where isolated power conversion is critical.

Murata Power Solutions' NKA series represents a trusted line of isolated DC/DC converters known for consistent performance in an encapsulated UL 94V-0 package, highly suitable for engineering applications requiring robust voltage conversion with size constraints.

Provides dual isolated outputs for flexible power configurations. Input voltage range from 10.8 V to 13.2 V dc accommodates varied power sources. Compact SIP package with 6 pins for efficient PCB design. High isolation voltage of 3 kV dc ensuring device safety and noise reduction.

Operational temperature range from -40°C to 85°C suitable for harsh environments. Maximum output power of 3 W with 74% efficiency ensures reliable performance. Ripple and noise specification of 75 mV peak-to-peak for clean output voltage.

MTBF of 559,000 hours indicating high reliability and long service life. Extremely lightweight at 1.4 grams for minimal load on PCB. Explore more advanced DC/DC Converters and power solutions from Murata and other leading brands at EnvMart to meet your electronic design and manufacturing requirements.
