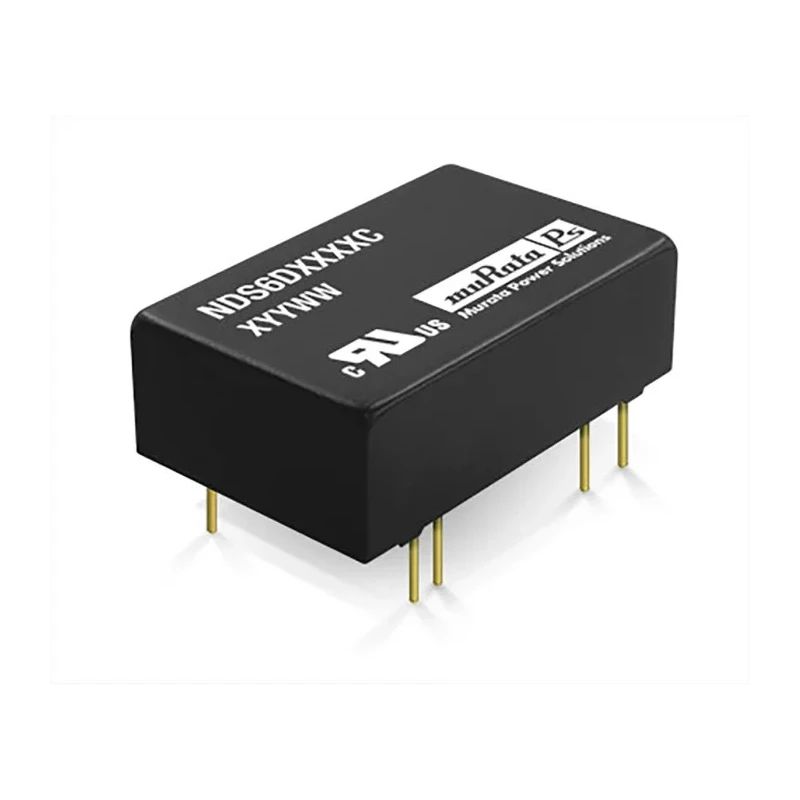

Murata Power Solutions NDS6 6W DC/DC Converter 15V DC Output, 36V Maximum Input, Through Hole Mount

Murata Power Solutions NDS6D2415C is a 6 watt DC/DC converter designed for industrial and electronic applications requiring regulated and isolated output voltages. This model delivers dual outputs with one output at 15V DC and another at -15V DC, accommodating an input voltage range of 18 volts DC minimum to 36 volts DC maximum. Its 2:1 wide input voltage ratio supports versatile power supply designs.

The converter features a through hole mount with a DIP24 metal case package, measuring 32mm in length, 10mm in width, and 10mm in depth. The device is fully encapsulated with UL 94V-0 rated package materials, ensuring durability and protection against environmental hazards. Rated for operation in temperature ranges from -40°C up to 85°C, the NDS6D2415C reliably functions in harsh industrial environments.

With an isolation voltage of 1.5kV DC and an efficiency of 87%, this DC/DC converter maintains electrical safety and efficient power transfer. Its output ripple and noise are held to a low 40mV peak-to-peak for clean DC power delivery, benefiting sensitive electronic systems.

This module is ideal for use in power supply units, industrial control systems, and instrumentation applications where dual isolated outputs and robust performance are required. Its compact DIP package allows easy assembly into printed circuit boards using through hole mounting techniques.

Dual isolated outputs with 6W maximum output power. Wide 18 - 36V DC input voltage range with 2:1 ratio. Through hole mounting in a DIP24 metal case package. High isolation voltage of 1.5kV DC ensures electrical safety. Operating temperature range from -40°C to 85°C for industrial reliability.

Low ripple and noise output at 40mV peak-to-peak. Fully encapsulated rugged design with UL 94V-0 compliant materials. Efficiency rating of 87% optimizes power conversion. Compact size: 32mm x 10mm x 10mm. Compliant with RoHS environmental standards.

This Murata Power Solutions NDS6 DC/DC converter is suited for applications across industrial, electronic component power supplies, and instrumentation markets. Its reliable isolation, efficient design, and temperature resilience make it a versatile choice for modern power systems.
